PP 2050D - Poulan Lawn Tractor (1993) MOWER LIFT Parts Diagram

Lawn Tractor

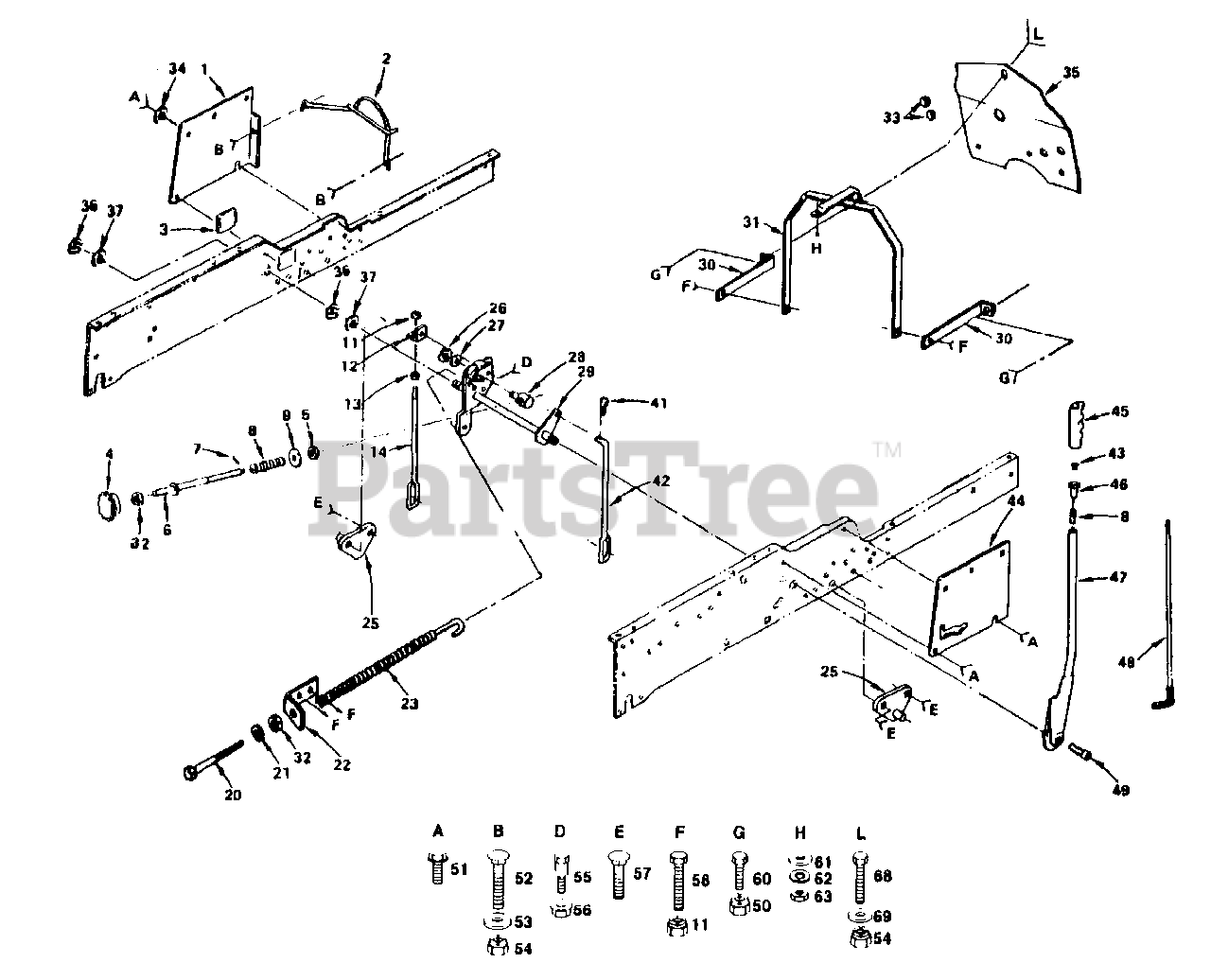

MOWER LIFT Parts Diagram

  • Title

1

Electrolux/AYP 532121046

Panel, Side, L.H.

$

$

Not available

2

Electrolux/AYP 532126651

Guard Assembly, Belt, Engine

$

$

Not available

3

Electrolux/AYP 532121794

Cover, Access
(Superseded to 121794X)

$

$

Not available

4

Electrolux/AYP 532138057

Handle, Adjust, Lift

$8.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 532110807

Nut

$3.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532110811

Rod, Adjust, Lift
(Superseded to 110811X)

$

$

Not available

7

Electrolux/AYP 876020308

Pin, Cotter
(Superseded to 532003145)

$

$

Not available

8

Electrolux/AYP 532124874

Spring
(Superseded to 532002876)

$7.49

$

In Stock, only 1 left!

0

9

Electrolux/AYP 819131016

Washer 13/32 x 5/8 x 16 Gauge

$6.49

$

In Stock, only 2 left!

0

11

Electrolux/AYP 873800600

Locknut, Hex w/Washer 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532007594

Bracket, Lift, L.H.

$

$

Not available

13

Electrolux/AYP 873220600

Nut, Hex 3/8-16

$6.49

$

In Stock, only 4 left!

0

14

Electrolux/AYP 532007596

Link, Lift, L.H.
(Superseded to 7596J)

$

$

Not available

15

Electrolux/AYP 817490612

Screw, Thdrol. 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

20

Electrolux/AYP 532005328

Bolt, Adjust, Spring, Assist

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Gauge

$4.99

$

In Stock, Qty 9

0

22

Electrolux/AYP 532124671

Bracket, Spring, Assist

$

$

Not available

23

Electrolux/AYP 532124687

Spring Assembly, Assist, Lift
(Superseded to 532674247)

$

$

Not available

25

Electrolux/AYP 532105501

Bracket, Suspension

$

$

Not available

26

Electrolux/AYP 812000037

Ring, Klip

$6.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 819151216

Washer 15/32 x 3/4 x 16 Gauge
(Superseded to 19151216)

$

$

Not available

28

Electrolux/AYP 532110810

Trunnion, Stop Depth

$21.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532124217

Shaft, Lift

$56.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532110903

Bracket, Shield, Heat, Side

$

$

Not available

31

Electrolux/AYP 532128141

Assembly, Support, Dash

$

$

Not available

32

Electrolux/AYP 873350600

Nut, Hex Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

33

Electrolux/AYP 532110436

Grommet
(Superseded to 532009151)

$

$

Not available

34

Electrolux/AYP 811050600

Washer, Lock Ext. Tooth 3/8
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532122085

Base, Shield, Heat

$

$

Not available

36

Electrolux/AYP 812000022

Klip, Ring

$6.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 819292016

Washer 29/32 x 1-1/4 x 16 Gauge

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 532124670

Retainer, Spring
(Superseded to 532085902)

$

$

Not available

42

Electrolux/AYP 532105503

Link, Lift, R.H.

$

$

Not available

43

Electrolux/AYP 532124526

Button, Plunger
(Superseded to 532125925)

$

$

Not available

44

Electrolux/AYP 532121045

Panel, Side, R.H.

$

$

Not available

45

Electrolux/AYP 532109413

Grip, Handle
(Superseded to 532125631)

$6.99

$

In Stock, only 2 left!

0

46

Electrolux/AYP 532122364

Plunger, Lever, Lift
(Superseded to 532125925)

$

$

Not available

47

Electrolux/AYP 532121002

Lever Assembly, Lift
(Superseded to 532123096)

$

$

Not available

48

Electrolux/AYP 532121006

Rod Assembly, Lever

$34.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 874780624

Bolt, Hex 3/8-16 x 1-1/2
(Superseded to 874930624)

$

$

Not available

50

Electrolux/AYP 873680400

Nut, Crownlock 1/4-20
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

51

Electrolux/AYP 817490608

Screw, Hex Washer Thd. 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 872140508

Bolt, Carriage 5/16-18 x 1
(Superseded to 595901501)

$3.99

$

In Stock, Qty 17

0

53

Electrolux/AYP 819111610

Washer 11/32 x 1 x 10 Ga.

$6.49

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 873800600

Nut, Lock wlns 5/16-18
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 532007901

Bolt, Shoulder

$4.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 873900400

Nut, Hex Flange 1/4-20
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 817490612

Screw Thdrol 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

58

Electrolux/AYP 874780408

Bolt Fin Hex 1/4-20 x 1/2 Gr. 5
(Superseded to 74780408)

$3.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 874780408

Bolt, Hex 1/4-20 x 1/2
(Superseded to 74780408)

$3.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 819091216

Washer 9/32 x 3/4 x 16 Ga.
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

62

Electrolux/AYP 810090400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

63

Electrolux/AYP 873220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

68

Electrolux/AYP 874760512

Bolt, Hex 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

69

Electrolux/AYP 819111216

Washer 11/32 x 3/4 x 16 Gauge
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0
