PP 20H46 A - Poulan Pro Lawn Tractor Chassis And Enclosures Parts Diagram

Lawn Tractor

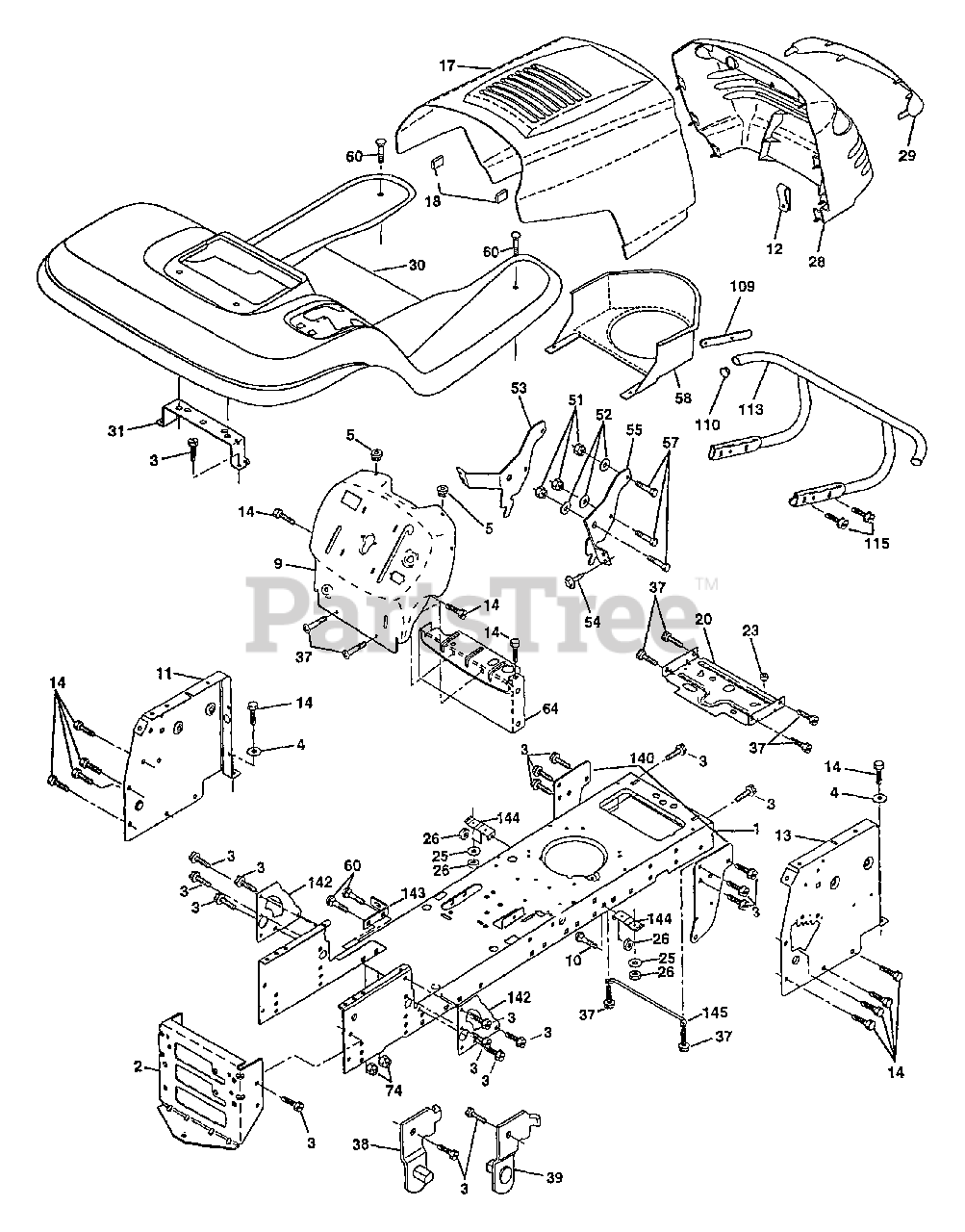

Chassis And Enclosures Parts Diagram

  • Title

1

Poulan 165583

Chassis
(Superseded to 166819)

$

$

Not available

2

Poulan 140356

Drawbar, Stretch (AYP part number)

$

$

Not available

3

Poulan 17490612

Screw Thdrol 3/8-16x3/4 Ty-tt
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

4

Poulan 19131216

Washer 13/32 x 3/4 x 16 Ga.
(Superseded to 819131216)

$

$

Not available

5

Poulan 155272

Bumper Hood/Dash
(Superseded to 532155272)

$4.99

$

In Stock, only 3 left!

0

9

Poulan 154793X010

Dash P/L E A Hm NC Sym

$17.99

$

Usually ships in 3-10 days

0

10

Poulan 72140608

Bolt Carriage 3/8-16 x 1 (AYP part number)

$

$

Not available

11

Poulan 155927

Panel Dash Rh (AYP part number)
(Superseded to 174996)

$

$

Not available

12

Poulan 145660

Clip Tinnerman
(Superseded to 532145660)

$3.49

$

In Stock, only 1 left!

0

13

Poulan 155936

Panel Dash Rh
(Superseded to 172108)

$

$

Not available

14

Poulan 17490608

Screw Thdrol 3/8-16x1/2 Ty-tt
(Superseded to 817490608)

$

$

Not available

17

Poulan 159639X428

Hood PNT STL P/L
(Superseded to 532182408)

$

$

Not available

18

Poulan 126938X

Bumper Hood

$

$

Not available

20

Poulan 156437

Plate Mtg Battery Fuel Tank Fr (AYP part number)
(Superseded to 180679)

$13.99

$

Usually ships in 3-10 days

0

23

Poulan 124028X

Bushing (AYP part number)

$

$

Not available

25

Poulan 19131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

26

Poulan 73800600

Nut Lock Hex W/Ins 3/8-16 Unc
(Superseded to 873680600)

$

$

Not available

28

Poulan 157373

Grille LT/PL
(Superseded to 532179101)

$

$

Not available

29

Poulan 140273X599

Lens LT/PL (AYP part number)
(Superseded to 532140273)

$

$

Not available

30

Poulan 151287X505

Fender Footrest STLT Pnt

$120.99

$

Usually ships in 3-10 days

0

31

Poulan 139976

Bracket Support Fender
(Superseded to 532139976)

$20.99

$

Usually ships in 3-10 days

0

37

Poulan 17490508

Screw Thdrol 6/16-18 x 1/2 TYT
(Superseded to 817490508)

$

$

Not available

38

Poulan 139886

Bracket, Asm. Pivot, L.H., Mower Rear
(Superseded to 532139886)

$

$

Not available

39

Poulan 139887

Bracket, Asm, Pivot, R,H., Mower Rear
(Superseded to 532139887)

$

$

Not available

51

Poulan 73800400

Nut Lock Hex W/Ins 1/4-20
(Superseded to 873800400)

$

$

Not available

52

Poulan 19091416

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 819091416)

$

$

Not available

53

Poulan 144697

Bracket Grille Lh
(Superseded to 532144697)

$

$

Not available

54

Poulan 161464

Screw Hex Wshd 8-18 x 7/8
(Superseded to 532161464)

$

$

Not available

55

Poulan 144696

Bracket Grille Rh
(Superseded to 532144696)

$

$

Not available

57

Poulan 74780412

Bolt Hex 1/4-20 x 3/4 (AYP part number)

$

$

Not available

58

Poulan 162266

Air Duct Engine
(Superseded to 532174930)

$

$

Not available

60

Poulan 72140606

Bolt Rdhd Sqnk 3/8-16unc x 3/4
(Superseded to 872140606)

$

$

Not available

64

Poulan 154798

Dash Lower STLT

$15.99

$

Usually ships in 3-10 days

0

74

Poulan 73680600

Nut Crownlock 3/8-16 UNC
(Superseded to 873680600)

$

$

Not available

109

Poulan 141461

Bracket Extension Bumper (AYP part number)
(Superseded to 170310)

$2.99

$

Usually ships in 3-10 days

0

110

Poulan 143679

Plug Plastic
(Superseded to 532143679)

$

$

Not available

113

Poulan 150300

Bumper Asm
(Superseded to 170311)

$

$

Not available

115

Poulan 17490620

Screw Thdrol 3/8-16 x 1-1/4
(Superseded to 817060620)

$6.99

$

In Stock, Qty 8

0

140

Poulan 158418

Bracket Suspension Front
(Superseded to 532158418)

$

$

Not available

142

Poulan 165867

Plate Reinforcement STLT (AYP part number)
(Superseded to 532175702)

$10.99

$

Usually ships in 3-10 days

0

143

Poulan 154966

Bracket Swaybar Chassis (AYP part number)
(Superseded to 532186689)

$6.99

$

In Stock, Qty 13

0

144

Poulan 154207

Bracket Pnt Footrest STLT (AYP part number)
(Superseded to 532175582)

$14.99

$

Usually ships in 3-10 days

0

145

Poulan 156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0
