PP 20VA42 (223980) - Poulan Pro Lawn Tractor (2017-11) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

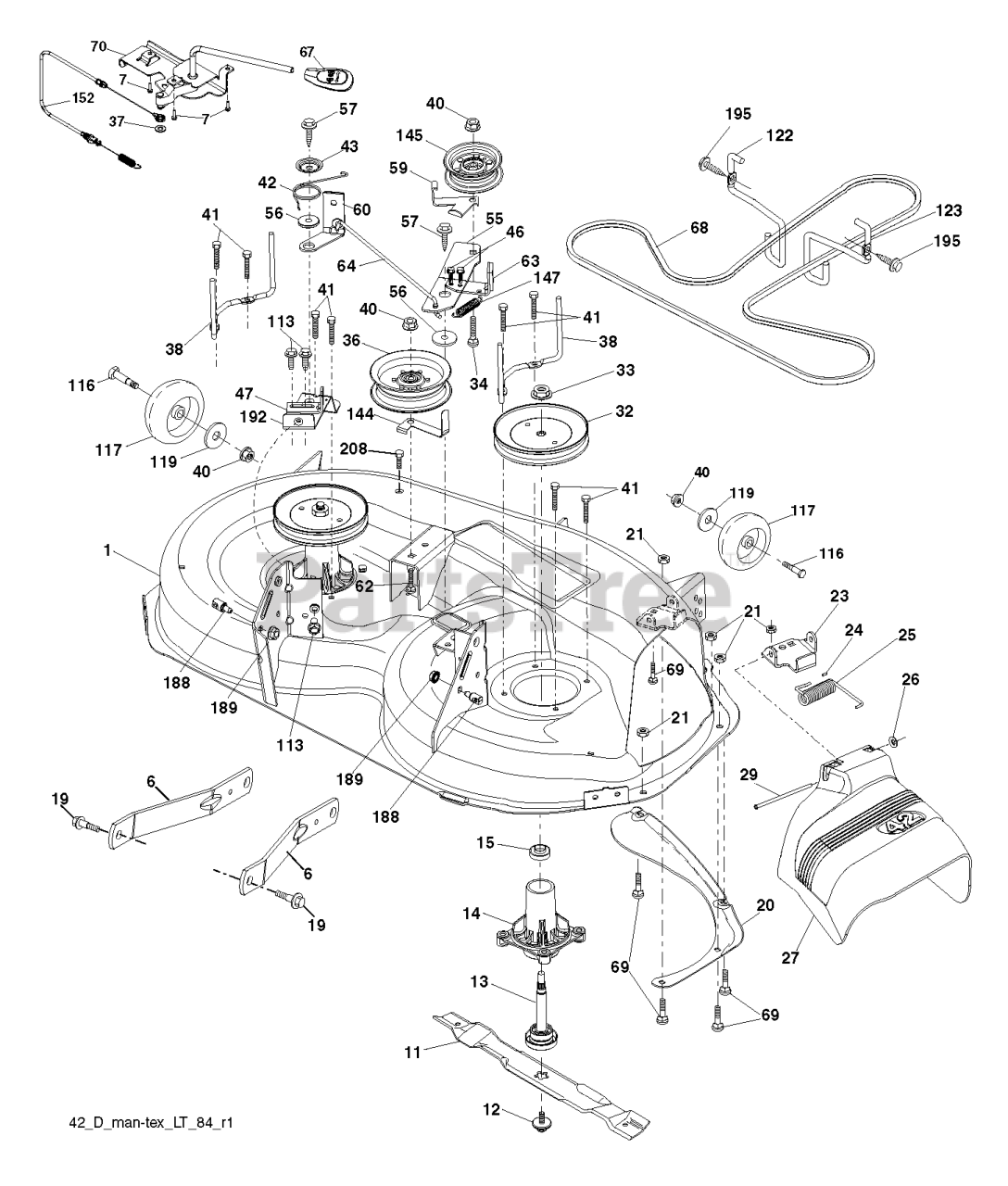

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

--

Poulan 532199608

DECK.ASM.SVC.42"HP.C.2GW.TX.
(Superseded to 583281301)

$

$

Not available

1

Poulan 532196495

DECK.WELDMENT.42"
(Superseded to 598602801)

$478.99

$

Usually ships in 3-10 days

0

6

Poulan 532195186

ARM.SUSPENSION.MOWER.R
(Superseded to 529846401)

$21.99

$

In Stock, Qty 20+

0

7

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 13

0

11

Poulan 532138971

42" HI-LIFT BLADE

Note: FOR BAGGING OR DISCHARGE

$21.99

$

In Stock, Qty 20+

0

12

Poulan 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$9.49

$

In Stock, Qty 20+

0

13

Poulan 587256501

SHAFT ASM.MNDRL.N/GREASEABLE
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

14

Poulan 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

15

Poulan 585323901

BEARING.MANDREL.TOP.EXTENDED

$17.99

$

In Stock, Qty 20+

0

19

Poulan 532196539

BOLT.SHOULDER

$1.49

$

In Stock, Qty 20+

0

20

Poulan 532159770

BAFFLE.VORTEX
(Superseded to 531167001)

$17.99

$

Usually ships in 3-10 days

0

21

Poulan 873680500

Locknut, Hex w/Insert 5/16-18 Unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Poulan 532192557

BRKT.DEFLECTOR.38"2005+

$9.99

$

In Stock, Qty 20+

0

24

Poulan 532105304

Cap Sleeve 80x 112 Blk Mower (AYP part number)

$3.99

$

In Stock, Qty 20+

0

25

Poulan 532197026

SPRING.TORSION.DEFLECT

$11.99

$

In Stock, Qty 20+

0

26

Poulan 532110452

Nut Push Phos & Oil (AYP part number)

$3.99

$

In Stock, Qty 20+

0

27

Poulan 532403004

SHIELD.DEFLECTOR.MOWER.42"BLAC

$37.99

$

In Stock, Qty 18

0

29

Poulan 532131491

Rod Hinge 42" 6 75 Wlg (AYP part number)
(Superseded to 595297001)

$7.49

$

In Stock, Qty 20+

0

32

Poulan 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$14.99

$

In Stock, Qty 20+

0

33

Poulan 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

34

Poulan 872110612

Bolt Carriage 3/8-16 x 1-1/2 (AYP part number)
(Superseded to 596136101)

$3.99

$

In Stock, Qty 9

0

36

Poulan 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$43.99

$

In Stock, Qty 20+

0

37

Poulan 819131316

Washer 13/32 x 1-3/16 x 12 Gauge (AYP part number)

$4.99

$

In Stock, only 2 left!

0

38

Poulan 589676101

KEEPER.42.BELT.MANDREL.PULLEY
(Superseded to 589676103)

$8.49

$

In Stock, Qty 20+

0

40

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

41

Poulan 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$3.99

$

In Stock, Qty 20+

0

42

Poulan 532198410

SPRING.TORSION.BRAKE

$5.99

$

In Stock, Qty 20+

0

43

Poulan 532197256

SRPING.TORSION.RETAINE

$5.99

$

In Stock, Qty 17

0

46

Poulan 532137729

Screw Hex Thd Cut 1/4-20x5/8 T (AYP part number)

$2.49

$

In Stock, Qty 20+

0

47

Poulan 532197250

BRKT.CLUTCH.CABLE

$5.99

$

In Stock, Qty 16

0

55

Poulan 532437110

IDLER.ARM.42"
(Superseded to 531171201)

$7.49

$

Usually ships in 3-10 days

0

56

Poulan 532199092

SPACER.RETAINER

$8.49

$

In Stock, Qty 20+

0

57

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

59

Poulan 532141043

Guard TUV Idler (AYP part number)
(Superseded to 531165901)

$5.99

$

In Stock, Qty 20+

0

60

Poulan 532197261

ARM BRAKE MOWER
(Superseded to 597074201)

$17.99

$

In Stock, Qty 20+

0

62

Poulan 872110616

Bolt, Carr. 3/8-16 x 1-3/4 Gr. 5 (AYP part number)
(Superseded to 596136301)

$3.99

$

In Stock, Qty 15

0

63

Poulan 532199477

ARM BRAKE MOWER
(Superseded to 532199478)

$23.99

$

In Stock, Qty 20+

0

64

Poulan 532199790

LINK BRAKE
(Superseded to 532199918)

$14.99

$

In Stock, Qty 20+

0

67

Poulan 532403012

HANDLE.CLUTCH.CABLE.LT

$8.49

$

In Stock, Qty 10

0

68

Poulan 532429636

BELT.DECK.DRIVE.42"
(Superseded to 598559101)

$53.99

$

In Stock, Qty 20+

0

69

Poulan 872140505

Bolt, Carriage 5/16-18 UNC x 5/8 (AYP part number)
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

70

Poulan 532199972

CLUTCH.ASM.MANUAL.YT.PREDATORQ

$62.99

$

In Stock, Qty 11

0

113

Poulan 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 18

0

116

Poulan 532124842

Bolt, Shoulder (AYP part number)
(Superseded to 596434402)

$4.99

$

In Stock, Qty 20+

0

117

Poulan 589527401

WHEEL.GAUGE.RALLY.NARROW

$14.99

$

In Stock, Qty 20+

0

119

Poulan 819121414

Washer 3/8 x 7/8 x 14 Ga. (AYP part number)
(Superseded to 734117201)

$

$

Not available

122

Poulan 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

Note: LH

$7.49

$

In Stock, Qty 20+

0

123

Poulan 532197259

KEEPER BELT RH
(Superseded to 531169701)

Note: RH

$8.49

$

In Stock, Qty 20+

0

144

Poulan 532199204

KEEPER.BELT.MOWER
(Superseded to 531169801)

$5.99

$

In Stock, Qty 20+

0

145

Poulan 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$33.99

$

In Stock, Qty 20+

0

147

Poulan 532401971

RETURN SPRING

$5.99

$

In Stock, Qty 20+

0

152

Poulan 584243501

CABLE.MECHANICAL.CLUTCH

$39.99

$

In Stock, Qty 20+

0

188

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

192

Poulan 532197260

BRKT.BRAKE.STAND.LH.
(Superseded to 531152801)

$8.49

$

In Stock, only 2 left!

0

195

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

208

Poulan 817670608

SCREW 3/8-16X1/2

$4.99

$

Usually ships in 3-10 days

0

--

Poulan 587253301

MANDREL.NONGREASEABLE.TALL
(Superseded to 587819701)

Note: MANUAL ASSEMBLY (Includes housing (key# 14), shaft assembly (key# 14), bearing (key# 15) and nut (key# 33) only - pulley/washer and blade bolt/washers not included)

$71.99

$

In Stock, Qty 20+

0
