PP 20VA46 (960480092-02) - Poulan Pro Lawn Tractor (2017-10) ENGINE Parts Diagram

Lawn Tractor

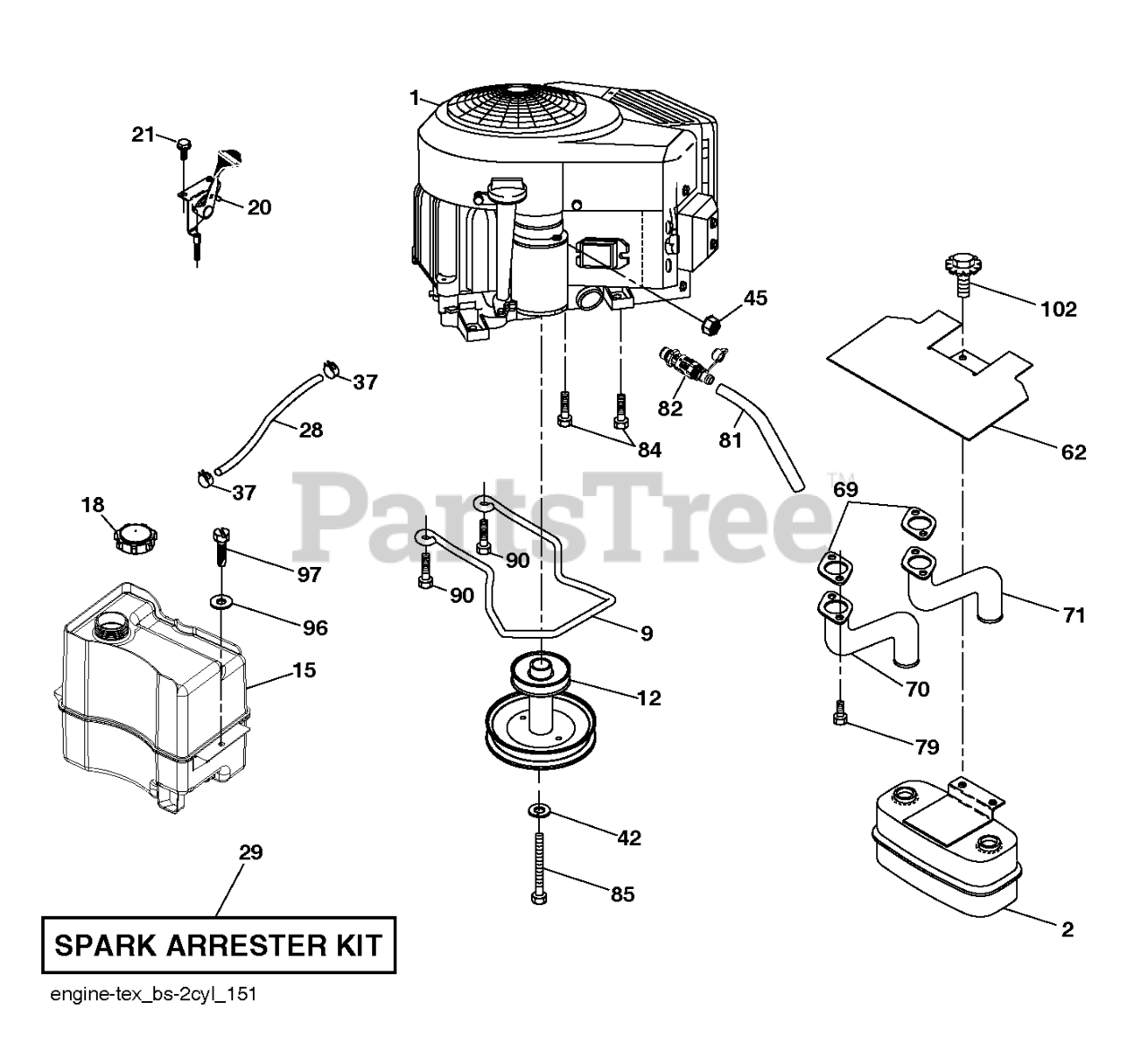

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: ENGINE B&S MODEL NUMBER 40N877-0005-G1 (587798001)

$

$

Not available

2

Poulan 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$71.99

$

In Stock, Qty 17

0

9

Poulan 582540302

KEEPER.BELT.ENG.3.25"2BOLT.PNT

$8.49

$

Usually ships in 3-10 days

0

12

Poulan 532405140

PULLEY.ENGINE.5.0.PD

$37.99

$

Usually ships in 3-10 days

0

15

Poulan 581290101

TANK.ASSEMBL.2.5GAL.NON-EPA

$131.99

$

In Stock, Qty 6

0

18

Poulan 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

20

Poulan 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.

$26.99

$

In Stock, Qty 20+

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 9

0

28

Poulan 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$14.99

$

In Stock, only 2 left!

0

29

Poulan 532137180

Arrester, Spark (Optional equipment) (AYP part number)

$203.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

Clamp Hose Black (AYP part number)

$3.99

$

In Stock, Qty 8

0

42

Poulan 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

45

Poulan 873510400

Nut Keps Hex 1/4 - 20 UNC (AYP part number)
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Poulan 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

69

Poulan 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Poulan 581881101

EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 532159955)

Note: LH

$35.99

$

In Stock, only 3 left!

0

71

Poulan 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK
(Superseded to 532160589)

Note: RH

$29.99

$

In Stock, only 4 left!

0

79

Poulan 532183906

SCREW.SOCKET.HEAD.5/16-18
(Superseded to 596134202)

$3.99

$

In Stock, Qty 13

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 11

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 20+

0

84

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

85

Poulan 501606501

Speed Clip

$3.49

$

Usually ships in 3-10 days

0

90

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

96

Poulan 819091416

Washer 9/32 x 7/8 x 16 Gauge (AYP part number)
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

97

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

102

Poulan 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0
