PP 210 - Poulan Pro Chainsaw Handle, Chassis & Bar Assembly Parts Diagram

Chainsaw

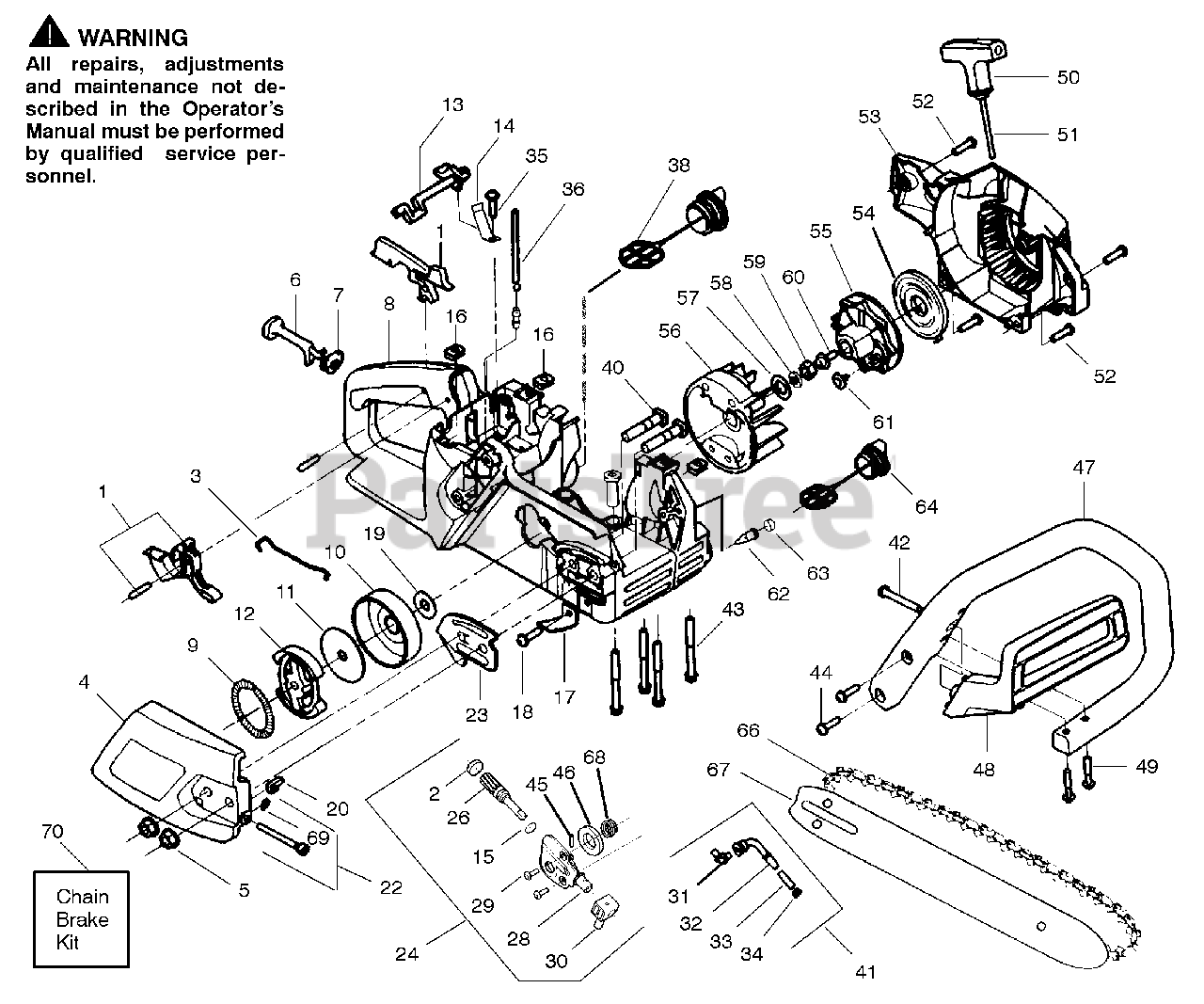

Handle, Chassis & Bar Assembly Parts Diagram

  • Title

1

Poulan 530069724

Trigger & Lockout Kit

Note: (Includes Pin)

$

$

Not available

2

Dust Plug-

Note: Ser. Ref.

$

$

Not available

3

Poulan 530037809

Wire - Throttle

$

$

Not available

4

Poulan 530038718

Clutch Cover

$

$

Not available

5

Poulan 530015917

Nut - Bar Mounting

$3.99

$

In Stock, Qty 20+

0

6

Poulan 530047989

Choke Lever

$

$

Not available

7

Poulan 530038406

Grommet

$

$

Not available

8

Poulan 530069802

Chassis Ass'y.

$70.38

$

Usually ships in 3-10 days

0

9

Poulan 530094188

Clutch Spring
(Superseded to 530014949)

$13.99

$

In Stock, Qty 19

0

10

Poulan 530047061

Clutch Drum Ass'y - w/Brg.

$17.99

$

In Stock, Qty 11

0

11

Poulan 530015611

Washer - Clutch

$6.49

$

In Stock, Qty 20+

0

12

Poulan 530014949

Clutch Ass'y.

$13.99

$

In Stock, Qty 19

0

13

Poulan 530038227

Switch Lever

$

$

Not available

14

Poulan 530016149

Switch Spring

$

$

Not available

15

Poulan 530019216

O-Ring Oiler

$

$

Not available

16

Poulan 530015922

Clip

$6.49

$

In Stock, Qty 5

0

17

Poulan 530029850

Chain Catcher

$6.49

$

In Stock, Qty 20+

0

18

Poulan 530015905

Screw
(Superseded to 530015814)

$6.49

$

In Stock, Qty 20+

0

19

Poulan 530015907

Washer - Thrust

$

$

Not available

20

Poulan 530016109

Pin -Bar Adjusting
(Superseded to 530016180)

$4.99

$

In Stock, Qty 20+

0

22

Poulan 530069611

Bar Adjusting Kit

Note: (Incl. 69)

$4.99

$

In Stock, Qty 20+

0

23

Poulan 530038238

Bar Mounting Plate

$

$

Not available

24

Oil Pump Kit-

Note: Ser. Ref.

$

$

Not available

26

Gear Ass'y.-

Note: Ser. Ref.

$

$

Not available

28

Oil Pump Body-

Note: Service Reference

$

$

Not available

29

Poulan 530016097

Screw

$

$

Not available

30

Poulan 530019206

Seal Block

$6.49

$

Usually ships in 3-10 days

0

31

Poulan 530038241

Fitting - Elbow

$

$

Not available

32

Poulan 530038373

Pick-Up Tube

$4.99

$

Usually ships in 3-10 days

0

33

Poulan 530037821

Oil Filter
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

34

Poulan 530030189

Plug- Oil Filter
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

36

Poulan 530069247

Fuel Line Kit (Large Dia.)

$6.49

$

In Stock, Qty 20+

0

38

Poulan 530047192

Fuel Cap Ass'y. w/Retainer
(Superseded to 580940901)

$6.49

$

In Stock, Qty 20+

0

40

Poulan 530016133

Bolt - Bar

$6.49

$

In Stock, only 4 left!

0

41

Poulan 530047663

Oil-Pickup Ass'y.

Note: (Incl. 32, 33 & 34)

$4.99

$

In Stock, Qty 8

0

42

Poulan 530016020

Screw

$1.49

$

In Stock, only 2 left!

0

43

Poulan 530016132

Bolt

$6.49

$

In Stock, Qty 10

0

44

Poulan 530015905

Screw
(Superseded to 530015814)

$6.49

$

In Stock, Qty 20+

0

45

Poulan 530016138

Pin - Dowel

$

$

Not available

46

Poulan 530019231

Dust Seal

$

$

Not available

47

Poulan 530037799

Front Handle

$

$

Not available

48

Poulan 530038658

Handguard

$

$

Not available

49

Poulan 530015940

Screw

$6.49

$

In Stock, Qty 9

0

50

Poulan 530037485

Starter Handle
(Superseded to 530056402)

$6.49

$

In Stock, only 2 left!

0

51

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

52

Poulan 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

53

Poulan 530049335

Fan Housing

$14.99

$

Usually ships in 3-10 days

0

54

Poulan 530027531

Recoil Spring
(Superseded to 545008015)

$6.49

$

In Stock, Qty 17

0

55

Poulan 530037817

Starter Pulley
(Superseded to 545034301)

$

$

Not available

56

Poulan 530039209

Flywheel Ass'y.
(Superseded to 530063575)

$

$

Not available

57

Poulan 530400897

Washer

$

$

Not available

58

Poulan 530001717

Lockwasher

$3.99

$

In Stock, only 1 left!

0

59

Poulan 530016134

Nut

$6.49

$

In Stock, only 1 left!

0

60

Poulan 530015920

Screw

$6.49

$

In Stock, Qty 8

0

61

Poulan 530016080

Screw

$6.49

$

In Stock, Qty 11

0

62

Poulan 530026119

Check Valve

$4.49

$

In Stock, Qty 13

0

63

Poulan 530038264

Plug - Oil Vent

$6.49

$

In Stock, Qty 6

0

64

Poulan 530010846

Oil Cap Ass'y.
(Superseded to 530057236)

$

$

Not available

66

Poulan 952051209

Chain-14"
(Superseded to 581562101)

$

$

Not available

67

Poulan 952044367

Bar-14"
(Superseded to 952044368)

$

$

Not available

68

Poulan 530037820

Worm Gear Spring

$6.49

$

In Stock, only 4 left!

0

69

Poulan 530038593

Retainer-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

70

Poulan 530047514

Chain Brake Kit

$

$

Not available
