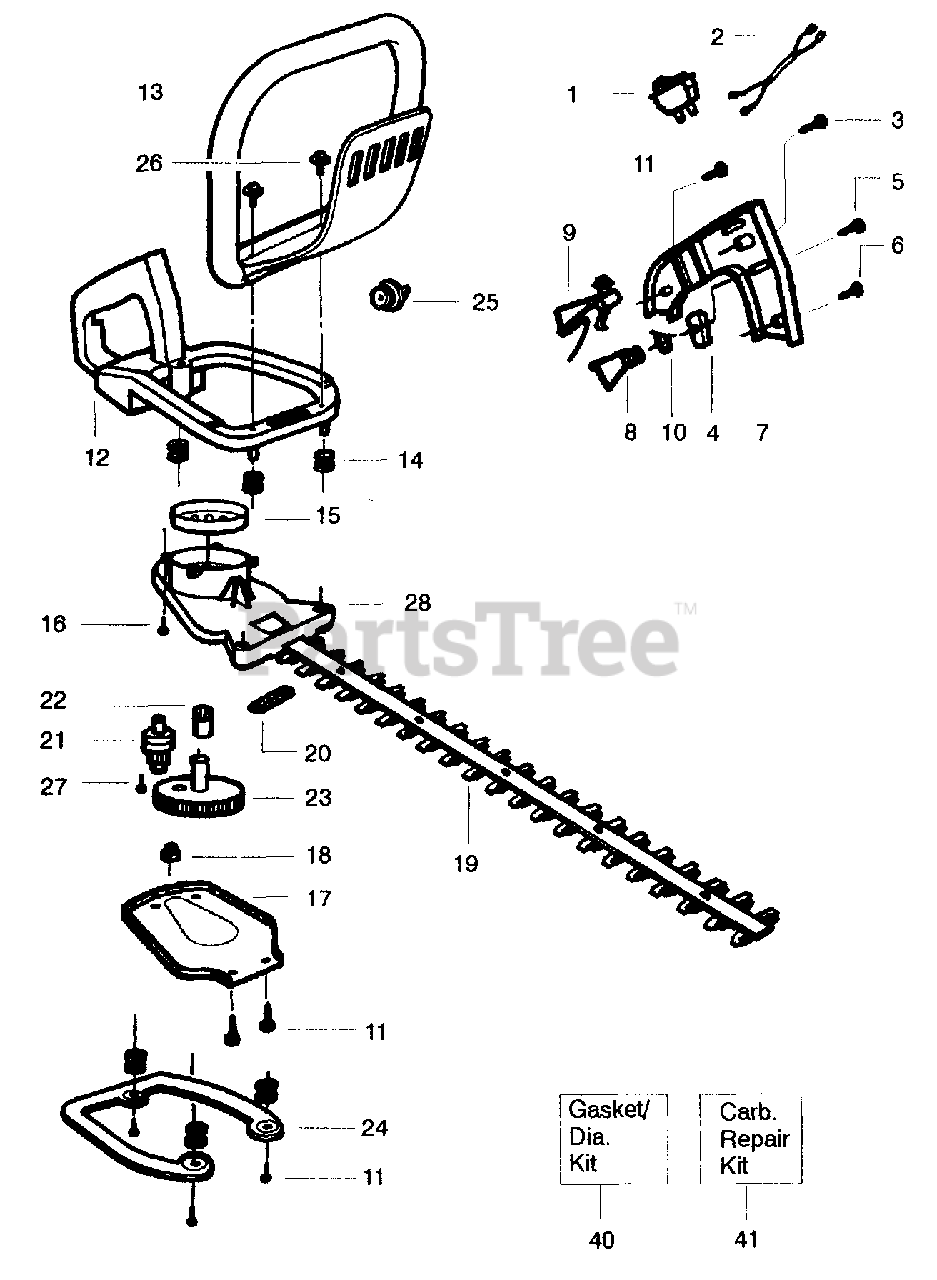

PP 22 - Poulan Pro Hedge Trimmer Handle & Blade Assembly Parts Diagram

Hedge Trimmer

Handle & Blade Assembly Parts Diagram

  • Title

1

Poulan 530036493

Ignition Switch

$

$

Not available

2

Poulan 530036443

Switch Wire Ass'y.
(Superseded to 545172901)

$13.84

$

Usually ships in 3-10 days

0

3

Poulan 530015775

Screw-Handle Cov.

$6.49

$

In Stock, only 2 left!

0

4

Poulan 530029958

Trigger Lever

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530015940

Screw-Handle Cov.

$6.49

$

In Stock, Qty 9

0

6

Poulan 530015770

Screw-Handle Cov.

$

$

Not available

7

Poulan 530038305

Handle Cover

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 530053884

Throttle Trigger

$3.99

$

In Stock, only 3 left!

0

9

Poulan 530053900

Throttle Lockout

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 530036123

Trigger Spring

$3.99

$

In Stock, only 4 left!

0

11

Poulan 530015934

Screw-Handle Cov.

$4.99

$

In Stock, only 1 left!

0

12

Poulan 530047879

Rear Handle/Tank Ass'y.

$

$

Not available

13

Poulan 530094992

Front Handle

$

$

Not available

14

Poulan 530029946

Isolator Spring

$3.99

$

In Stock, only 4 left!

0

15

Poulan 530048113

Clutch Drum
(Superseded to 530056069)

$36.99

$

Usually ships in 3-10 days

0

16

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

17

Poulan 530029916

Gear Box Plate

$6.49

$

In Stock, only 2 left!

0

18

Poulan 530032121

Bushing Blade

$

$

Not available

19

Poulan 530403229

Blade Ass'y.

$

$

Not available

20

Poulan 530029948

Blade Seal

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530036228

Pinion Ass'y.

$

$

Not available

22

Poulan 530016013

Drive Gear Bearings

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 530069355

Drive Gear Kit

$

$

Not available

24

Poulan 530036046

Isolator Plate

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 530036965

Fuel Cap Ass'y.
(Superseded to 577858601)

$7.49

$

In Stock, Qty 7

0

26

Poulan 530015955

Screw-Front Handle

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 530015805

Screw-Gear
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

28

Poulan 530014399

Gear Box Ass'y.
(Superseded to 530071931)

Note: (Incl. 21, 22 & 27)

$

$

Not available

40

Poulan 530035313

Walbro - Gasket/Diaphragm Kit

Note: (See "Type 1" or "Type 2 Carburetor" ill. and parts list items 29-32)

$

$

Not available

40

Poulan 530069866

Zama - Gasket/Diaphragm Kit

Note: (See "Type 1" or "Type 2 Carburetor" ill. and parts list items 29-32)

$20.99

$

Usually ships in 3-10 days

0

41

Poulan 530035312

Carb. Repair Kit - Type 1

Note: (See "Type 1 Carburetor" ill. and parts list items 33-40)

$30.99

$

Usually ships in 3-10 days

0

41

Poulan 530069656

Walbro - Carb. Repair Kit - Type 2

Note: (See "Type 2 Carburetor" ill. and parts list items 33-40, 42-46 & Primer Bulb)

$18.99

$

Usually ships in 3-10 days

0

41

Poulan 530069867

Zama - Carb. Repair Kit - Type 2

Note: (See "Type 2 Carburetor" ill. and parts list items 33-40, 42-46 & Primer Bulb)

$

$

Not available
