PP 220 - Poulan Pro Blower, Electric BLOWER ASSEMBLY Parts Diagram

Blower, Electric

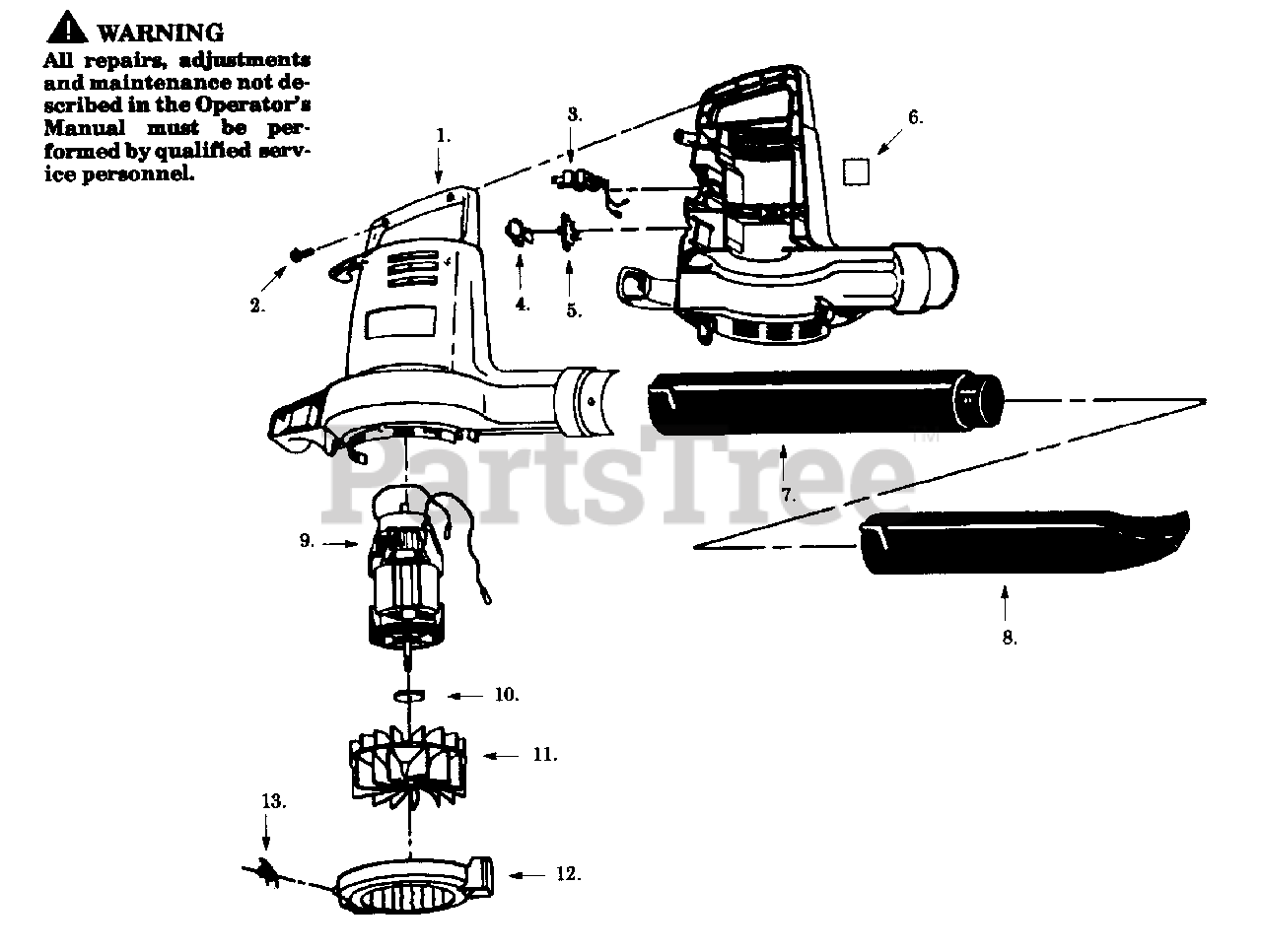

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Poulan 530036235

Blower/Vac Hsg. Set

$

$

Not available

2

Poulan 530340179

Screw

$1.49

$

In Stock, Qty 8

0

3

Poulan 530351408

Wire Harness

$

$

Not available

4

Poulan 530351403

Switch Cover

$

$

Not available

5

Poulan 530351409

Switch

$

$

Not available

6

Poulan 530400089

Pad

$

$

Not available

7

Poulan 530351405

Blower Tube

$

$

Not available

8

Poulan 530094662

Nozzle

$

$

Not available

9

Poulan 530351439

Motor Ass'y.

$

$

Not available

10

Poulan 530351415

Washer

$

$

Not available

11

Poulan 530351402

Impeller

$

$

Not available

12

Poulan 530351401

Inlet Cover

$

$

Not available

13

Poulan 530351417

Spring

$

$

Not available

14

Poulan 530036234

Motor Hsg. Decal (Not a serviceable part)

Note: Not Shown.

$

$

Not available

15

Poulan 530036237

Nameplate Decal

Note: Not Shown.

$

$

Not available

16

Poulan 530068230

Operator Manual

Note: Not Shown.

$

$

Not available

17

Poulan 530061449

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available
