PP 221 - Poulan Pro Chainsaw, Type 4 Chassis & Handle Assembly Type 4 Parts Diagram

Chainsaw, Type 4

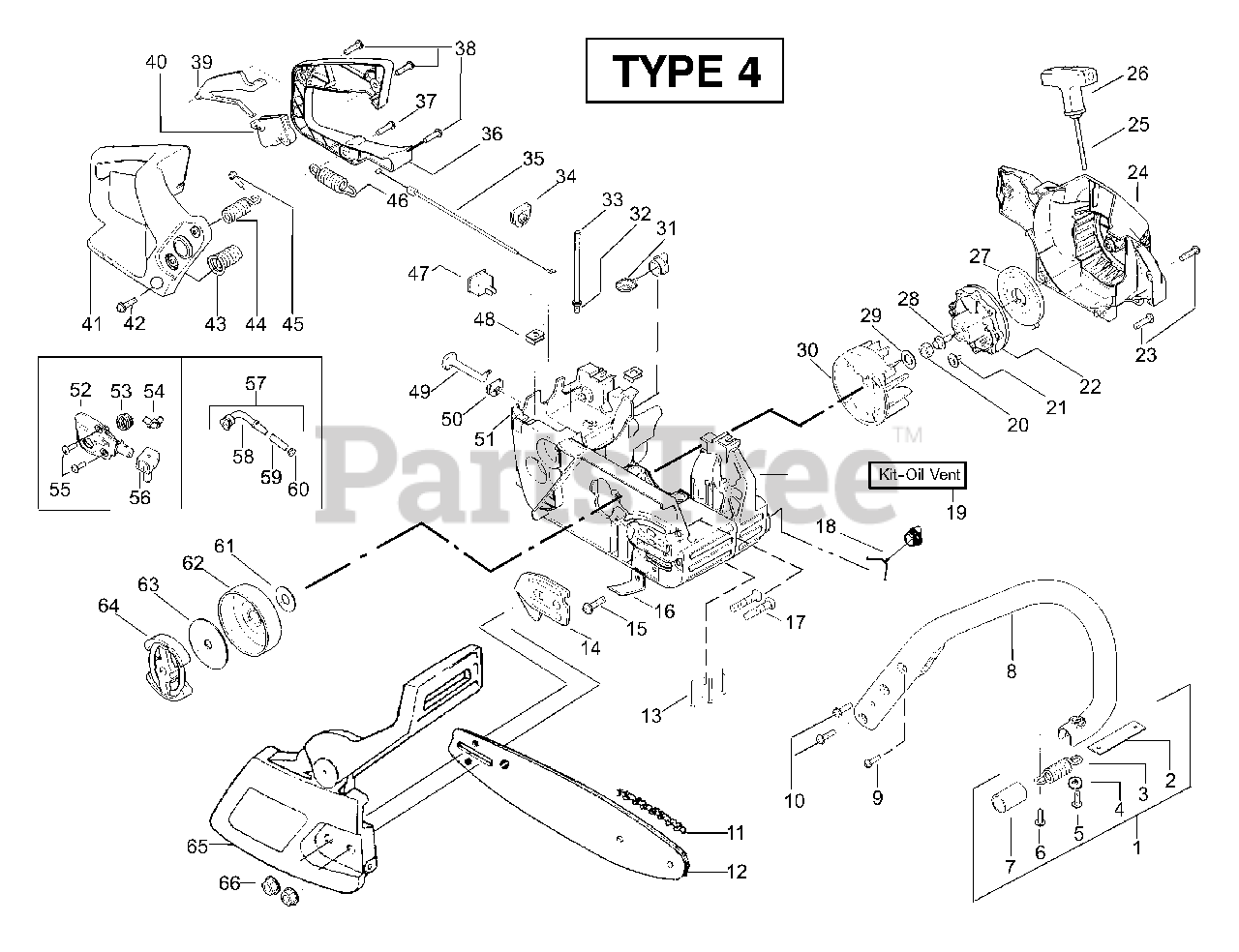

Chassis & Handle Assembly Type 4 Parts Diagram

  • Title

1

Poulan 530047963

Assy.-Isolator
(Superseded to 545006036)

$9.99

$

In Stock, Qty 6

0

2

Poulan 530047608

Limiter Strap
(Superseded to 530037009)

$

$

Not available

3

Poulan 530042082

Spring-Isolator
(Superseded to 545006036)

$9.99

$

In Stock, Qty 6

0

4

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

5

Poulan 530016018

Screw

$

$

Not available

6

Poulan 530015843

Screw

$6.49

$

In Stock, only 2 left!

0

7

Poulan 530036142

Sleeve-AV Spring

$

$

Not available

8

Poulan 530047583

Handle-Front
(Superseded to 545048001)

$44.99

$

Usually ships in 3-10 days

0

9

Poulan 530015940

Screw

$6.49

$

In Stock, Qty 9

0

10

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

11

Poulan 952051211

Chain-16"
(Superseded to 581562201)

$22.99

$

In Stock, Qty 14

0

12

Poulan 530044834

Bar-16" Quick Adjust
(Superseded to 578138101)

$

$

Not available

13

Poulan 530016132

Screw

$6.49

$

In Stock, Qty 10

0

14

Poulan 530038238

Plate-Bar Mounting

$

$

Not available

15

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

16

Poulan 530029850

Chain Catcher

$6.49

$

In Stock, Qty 20+

0

17

Poulan 530016133

Bolt-Bar

$6.49

$

In Stock, only 4 left!

0

18

Poulan 530010846

Assy-Oil Cap
(Superseded to 530057236)

$

$

Not available

19

Poulan 530071666

Kit-Oil Check Valve

$

$

Not available

20

Poulan 530016134

Nut-Flywheel

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 530016080

Screw

$6.49

$

In Stock, Qty 11

0

22

Poulan 530037817

Starter Pulley
(Superseded to 545034301)

$

$

Not available

23

Poulan 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

24

Poulan 530049335

Assy-Fan Housing

$14.99

$

Usually ships in 3-10 days

0

25

Poulan 530069232

Kit-Rope

$7.49

$

In Stock, Qty 20+

0

26

Poulan 530049797

Handle-Starter
(Superseded to 530056422)

$

$

Not available

27

Poulan 530027531

Spring-Recoil
(Superseded to 545008015)

$6.49

$

In Stock, Qty 17

0

28

Poulan 530015920

Screw

$6.49

$

In Stock, Qty 8

0

29

Poulan 530015127

Washer-Flywheel

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 530039209

Assy-Flywheel
(Superseded to 530063575)

$

$

Not available

31

Poulan 530047192

Assy-Fuel Cap
(Superseded to 580940901)

$6.49

$

In Stock, Qty 20+

0

32

Poulan 530023877

Fitting-fuel line

$4.99

$

In Stock, Qty 20+

0

33

Poulan 530069216

Kit-Fuel line (large)

$6.49

$

In Stock, Qty 20+

0

34

Poulan 530047631

Grommet-Cable

$2.49

$

In Stock, only 2 left!

0

35

Poulan 530047602

Cable-Throttle

$

$

Not available

36

Poulan 530047581

Cover-Rear Handle

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

38

Poulan 530015906

Screw

$6.49

$

In Stock, Qty 9

0

39

Poulan 530036098

Throttle Lockout

$

$

Not available

40

Poulan 530036097

Trigger-Throttle

$4.99

$

In Stock, only 3 left!

0

41

Poulan 530047582

Handle-Rear

$15.99

$

Usually ships in 3-10 days

0

42

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

43

Poulan 530053274

Assy. Isolator-lower
(Superseded to 545006036)

$9.99

$

In Stock, Qty 6

0

44

Poulan 530071385

Kit-Isolator (Upper)
(Superseded to 545006036)

$9.99

$

In Stock, Qty 6

0

45

Poulan 530015875

Screw

$4.99

$

In Stock, only 3 left!

0

46

Poulan 530042082

Spring-Isolator
(Superseded to 545006036)

$9.99

$

In Stock, Qty 6

0

47

Poulan 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

48

Poulan 530015922

Nut-"U"-Type

$6.49

$

In Stock, Qty 5

0

49

Poulan 530047605

Knob-Choke

$4.99

$

In Stock, Qty 8

0

50

Poulan 530049005

Grommet-Knob

$

$

Not available

51

Poulan 530056596

Assy-Chassis

$

$

Not available

52

Poulan 530071259

Kit-Oil Pump

Note: (Incl. 53,54,56)

$18.99

$

In Stock, only 1 left!

0

53

Poulan 530037820

Gear-Worm Spring

$6.49

$

In Stock, only 4 left!

0

54

Poulan 530049477

Elbow-Oil Pickup

$4.99

$

In Stock, Qty 5

0

55

Poulan 530016064

Screw

$4.99

$

In Stock, Qty 6

0

56

Poulan 530019206

Seal Block

$6.49

$

Usually ships in 3-10 days

0

57

Poulan 530047663

Assy-Oil Pickup

Note: (Incl. 58-60)

$4.99

$

In Stock, Qty 8

0

58

Poulan 530038373

Pickup-Oiler

$4.99

$

Usually ships in 3-10 days

0

59

Poulan 530037821

Filter-Oil
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

60

Poulan 530030189

Plug-Oil Filter
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

61

Poulan 530015907

Washer-Thrust

$

$

Not available

62

Poulan 530047061

Assy.-Clutch Drum w/bearing

$17.99

$

In Stock, Qty 9

0

63

Poulan 530015611

Washer-Clutch

$6.49

$

In Stock, Qty 20+

0

64

Poulan 530014949

Assy. Clutch

$13.99

$

In Stock, Qty 18

0

65

Poulan 530054999

Assy-Chain Brake
(Superseded to 545139915)

$37.99

$

In Stock, only 1 left!

0

66

Poulan 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 20+

0
