PP 22H50 A - Poulan Pro Lawn Tractor Transaxle Hydro Gear Parts Diagram

Lawn Tractor

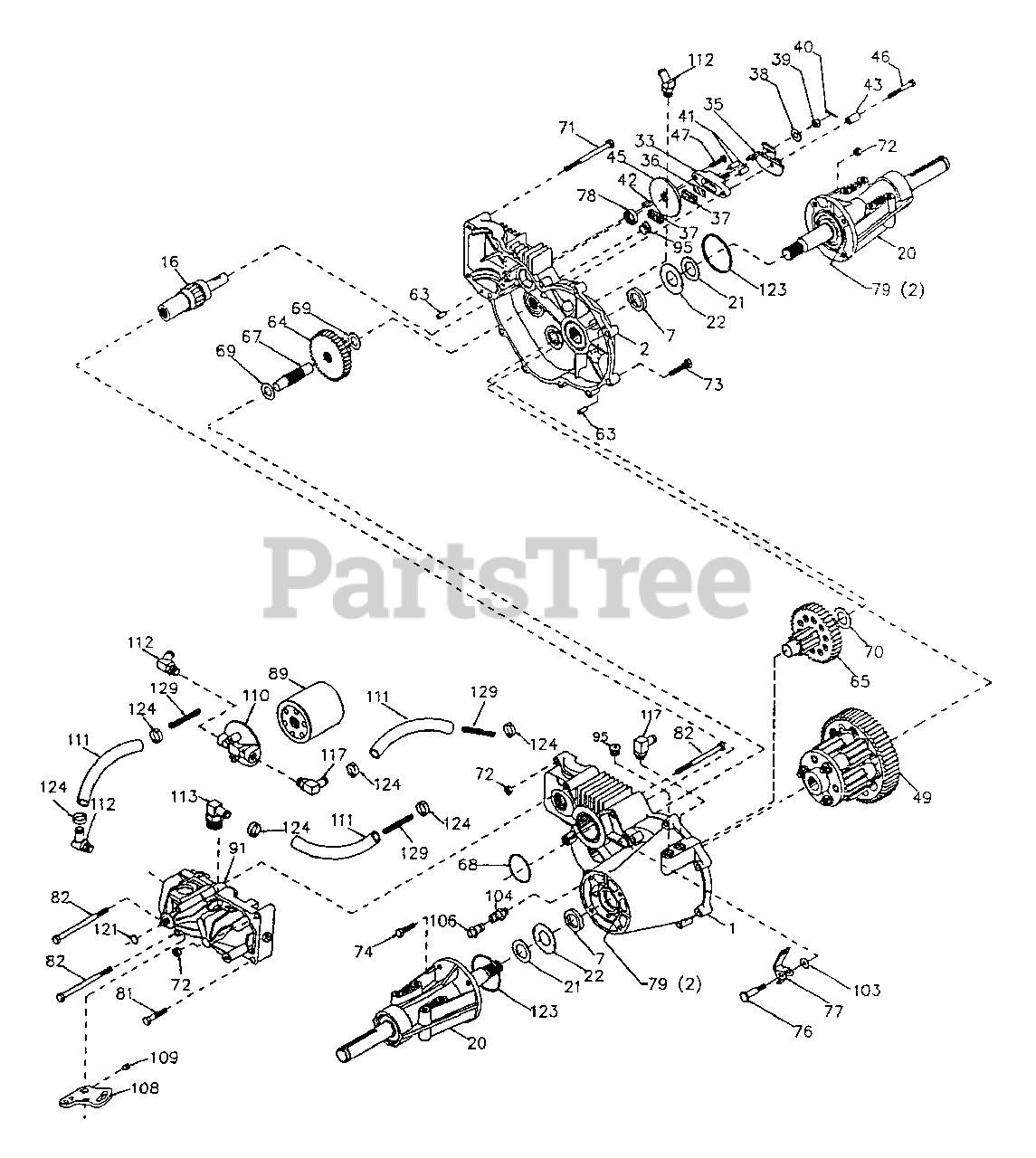

Transaxle Hydro Gear Parts Diagram

  • Title

1

Poulan 142874

Assembly, Housing, LH
(Superseded to 532142874)

$

$

Not available

2

Poulan 142875

Assembly, Housing, RH

$

$

Not available

7

Poulan 153765

Oil Seal .984 x 1.5 x .25
(Superseded to 532153765)

$

$

Not available

16

Poulan 142876

Brake Shaft Assembly
(Superseded to 532142876)

$461.99

$

Usually ships in 3-10 days

0

20

Poulan 142877

Axie Mounting Horn Assembly
(Superseded to 532142877)

$311.99

$

Usually ships in 3-10 days

0

21

Poulan 142878

Washer 1.0 x 1.63 x .08
(Superseded to 532142878)

$6.99

$

Usually ships in 3-10 days

0

22

Poulan 142879

Washer 1.0 x 2.06 x .09

$

$

Not available

33

Poulan 142929

Brake Yoke Assembly (AYP part number)
(Superseded to 583041701)

$40.99

$

Usually ships in 3-10 days

0

35

Poulan 142880

Brake Arm
(Superseded to 532142880)

$36.99

$

Usually ships in 3-10 days

0

36

Poulan 142882

Puck Plate
(Superseded to 584289601)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 142883

Brake Puck
(Superseded to 532142883)

$8.99

$

In Stock, only 2 left!

0

38

Poulan 142884

Washer 7/8 O.D. x 7/16 x .060

$2.99

$

Usually ships in 3-10 days

0

39

Poulan 142885

Nut, Castle 5/16-24 (AYP part number)

$

$

Not available

40

Poulan 142886

Cotter Pin (AYP part number)

$

$

Not available

41

Poulan 142887

Brake Actuating Pin
(Superseded to 532142887)

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 142888

Hi Pro Key
(Superseded to 532142888)

$7.49

$

In Stock, only 1 left!

0

43

Poulan 142889

Spacer
(Superseded to 532142889)

$3.99

$

Usually ships in 3-10 days

0

45

Poulan 142890

Brake Disc
(Superseded to 532142890)

$28.99

$

Usually ships in 3-10 days

0

46

Poulan 142891

Bolt 1/4-20 x 1-1/2
(Superseded to 532142891)

$4.99

$

Usually ships in 3-10 days

0

47

Poulan 142892

Bolt 1/4-20 x 1
(Superseded to 532142892)

$4.99

$

Usually ships in 3-10 days

0

49

Poulan 153766

Differential Assembly
(Superseded to 532153766)

$

$

Not available

63

Poulan 142894

Dowel Pin
(Superseded to 532142894)

$14.99

$

Usually ships in 3-10 days

0

64

Poulan 150818

Reduction Gear, 14 Teeth to 38 Teeth
(Superseded to 532150818)

$42.99

$

Usually ships in 3-10 days

0

65

Poulan 142897

Final Drive Pinion Assembly
(Superseded to 532142897)

$188.99

$

Usually ships in 3-10 days

0

67

Poulan 142898

Jackshaft
(Superseded to 532142898)

$37.99

$

Usually ships in 3-10 days

0

68

Poulan 142899

O-Ring
(Superseded to 532142899)

$3.99

$

Usually ships in 3-10 days

0

69

Poulan 142900

Washer 5/8 X 1-5/32
(Superseded to 532142900)

$2.99

$

Usually ships in 3-10 days

0

70

Poulan 142901

Washer 7/8 X 1-1/2
(Superseded to 532142901)

$2.99

$

Usually ships in 3-10 days

0

71

Poulan 142902

Bolt, Hex 5/16-18 x 3.5
(Superseded to 532142902)

$4.99

$

Usually ships in 3-10 days

0

72

Poulan 153767

Locknut, Hex 5/16-18
(Superseded to 532153767)

$4.99

$

Usually ships in 3-10 days

0

73

Poulan 142904

Bolt, Hex 5/16-18 x 1-1/2
(Superseded to 532161159)

$6.49

$

Usually ships in 3-10 days

0

74

Poulan 142905

Hex Cap Screw 5/16-18 x 1
(Superseded to 532142905)

$

$

Not available

76

Poulan 142907

Shoulder Bolt
(Superseded to 532142907)

$3.99

$

Usually ships in 3-10 days

0

77

Poulan 142908

Freewheel Actuating Arm
(Superseded to 532142908)

$18.99

$

Usually ships in 3-10 days

0

78

Poulan 142909

Oil Seal .625 x 1.0 x .25
(Superseded to 532142909)

$18.99

$

In Stock, only 1 left!

0

79

Poulan 153768

Grease (AYP part number)

Note: 10 oz. Tube

$

$

Not available

81

Poulan 142910

Bolt, Hex 5/16-18 x 1-3/4
(Superseded to 532142910)

$

$

Not available

82

Poulan 142911

Bolt 5/16-18 x 4-1/2

$

$

Not available

89

Poulan 142912

Filter, Spin On (AYP part number)
(Superseded to 532182642)

$

$

Not available

91

Poulan 153769

Pump, BDU-10L-122
(Superseded to 532153769)

$1322.99

$

Usually ships in 3-10 days

0

95

Poulan 142914

Plug, Straight Thread

$

$

Not available

96

Poulan 153770

60ø 7/18 SAE x 5/16 Fitting
(Superseded to 582980901)

$28.99

$

Usually ships in 3-10 days

0

103

Poulan 142916

Washer
(Superseded to 532142916)

$3.99

$

Usually ships in 3-10 days

0

104

Poulan 142917

Vent Cap Assembly
(Superseded to 532142578)

$46.99

$

Usually ships in 3-10 days

0

106

Poulan 342918

Fitting O-Ring Assembly (Outside vendor part number)

$

$

Not available

108

Poulan 142919

Control Arm
(Superseded to 532142919)

$21.99

$

Usually ships in 3-10 days

0

109

Poulan 142920

Set Screw
(Superseded to 532142920)

$9.99

$

Usually ships in 3-10 days

0

110

Poulan 142921

Filter Head
(Superseded to 532142921)

$103.99

$

Usually ships in 3-10 days

0

111

Poulan 150820

Hose 1/2"
(Superseded to 532150820)

$28.99

$

Usually ships in 3-10 days

0

112

Poulan 150823

Fitting, 1/2" Beaded 90ø 7/8 SAE
(Superseded to 532150823)

$42.99

$

Usually ships in 3-10 days

0

113

Poulan 150821

Fitting, 1/2" Beaded 60ø 9/16
(Superseded to 532150821)

$42.99

$

Usually ships in 3-10 days

0

117

Poulan 150822

Fitting, 1/2" Beaded 90ø 9/16
(Superseded to 532150822)

$37.99

$

Usually ships in 3-10 days

0

121

UNKNOWN

$

$

Not available

123

Poulan 150824

O Ring
(Superseded to 532150824)

$3.99

$

Usually ships in 3-10 days

0

124

Poulan 150825

Pinch Clamp
(Superseded to 532150825)

$4.99

$

Usually ships in 3-10 days

0

129

Poulan 153771

Spring, Long
(Superseded to 532153771)

$4.99

$

Usually ships in 3-10 days

0
