PP 22H50 A - Poulan Pro Lawn Tractor Transaxle Pump Parts Diagram

Lawn Tractor

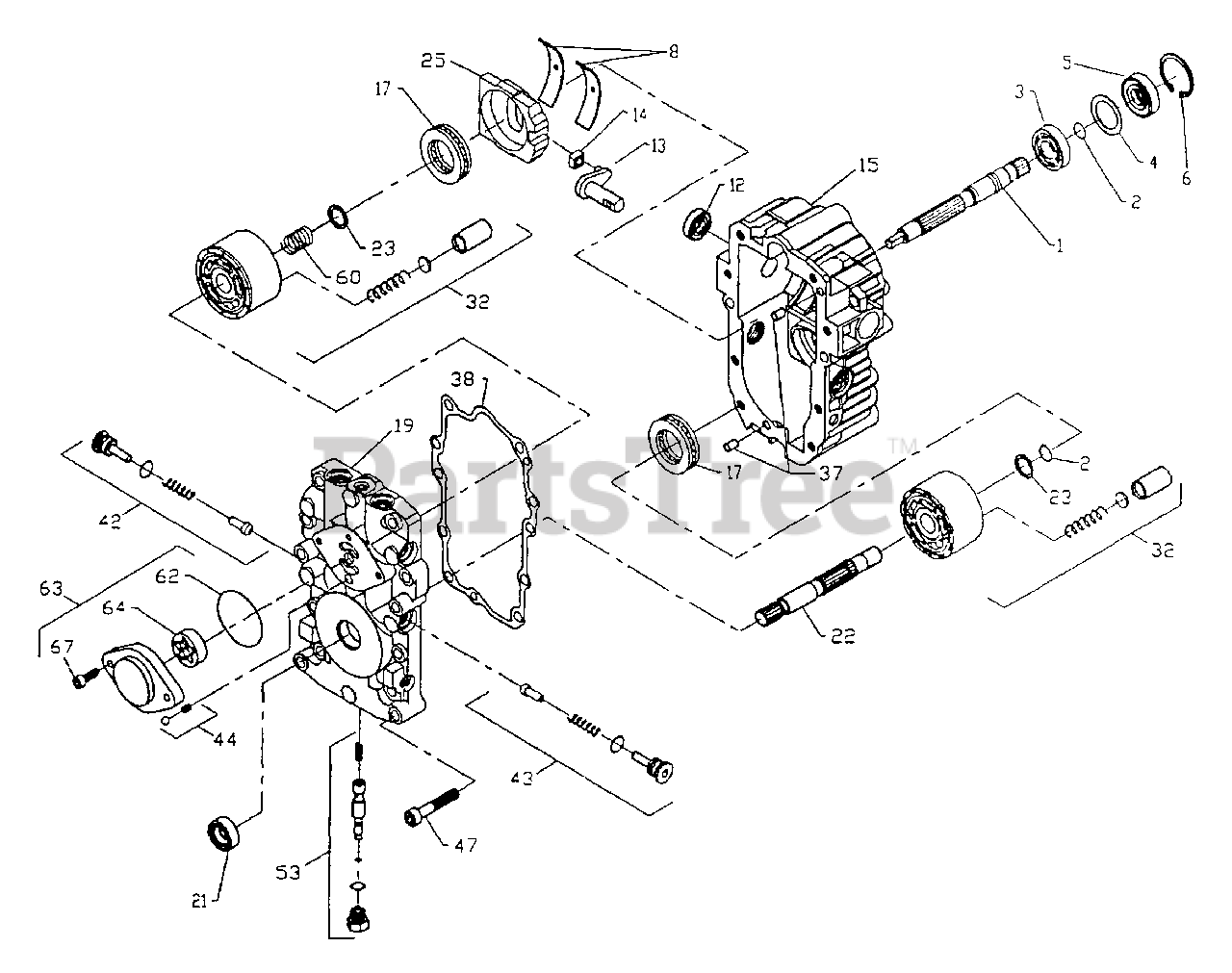

Transaxle Pump Parts Diagram

  • Title

1

Poulan 144569

Shaft, Pump
(Superseded to 532144569)

$

$

Not available

2

Poulan 122716X

Ring, Retaining (AYP part number)
(Superseded to 532142928)

$

$

Not available

3

Poulan 122745X

Bearing, Ball

$50.99

$

Usually ships in 3-10 days

0

4

Poulan 122T15X

Spacer (outside vendor part)

$

$

Not available

5

Poulan 122700X

Seal, Lip (AYP part number)
(Superseded to 532142932)

$

$

Not available

6

Poulan 122699X

Ring, Retaining (AYP part number)
(Superseded to 532142933)

$

$

Not available

8

Poulan 122767X

Bearing, Cradle (AYP part number)
(Superseded to 532142935)

$45.99

$

Usually ships in 3-10 days

0

12

Poulan 122717X

Seal, Lip (AYP part number)
(Superseded to 532142940)

$

$

Not available

13

Poulan 122748X

Arm, Trunnion

$

$

Not available

14

Poulan 122749X

Guide, Slot

$

$

Not available

15

Poulan 144571

Housing Kit, Transmission

$

$

Not available

17

Poulan 122770X

Bearing, Thrust, Ball (AYP part number)

$

$

Not available

19

Poulan 153801

Center Section Kit

$459.99

$

Usually ships in 3-10 days

0

21

Poulan 122722X

Seal, Lip

$3.49

$

Usually ships in 3-10 days

0

22

Poulan 144573

Shaft, Motor
(Superseded to 532144573)

$250.99

$

Usually ships in 3-10 days

0

23

Poulan 142978

Washer, Block Thrust
(Superseded to 532142978)

$13.99

$

Usually ships in 3-10 days

0

25

Poulan 127148X

Swashplate, Variable
(Superseded to 532142937)

$

$

Not available

32

Poulan 142938

Block Assembly (AYP part number)
(Superseded to 532169898)

$

$

Not available

37

Poulan 122786X

Pin, Stainless, Headless

$

$

Not available

38

Poulan 122718X

Gasket, Center Section
(Superseded to 532122718)

$11.99

$

In Stock, only 1 left!

0

42

Poulan 144578

Check Valve Kit
(Superseded to 532144578)

$

$

Not available

43

Poulan 144578

Check Valve Kit
(Superseded to 532144578)

$

$

Not available

44

Poulan 144579

Charge Relief Kit
(Superseded to 532144579)

$

$

Not available

47

Poulan 122752X

Screw, Socket Head, Cap

$2.49

$

Usually ships in 3-10 days

0

53

Poulan 127153X

Bypass Valve Kit
(Superseded to 532127153)

$

$

Not available

60

Poulan 142977

Block Spring
(Superseded to 532142977)

$9.49

$

Usually ships in 3-10 days

0

62

Poulan 144581

O-Ring
(Superseded to 532144581)

$

$

Not available

63

Poulan 144582

Charge Pump Kit

$

$

Not available

64

Poulan 144583

Gerotor Assembly
(Superseded to 583031201)

$

$

Not available

67

Poulan 144584

Screw, Socket Head, Cap

$

$

Not available

Poulan 153769

Pump Assembly, Complete
(Superseded to 532153769)

$

$

Not available
