PP 22VA48 (960420198-00) - Poulan Lawn Tractor (2016-08) DRIVE Parts Diagram

Lawn Tractor

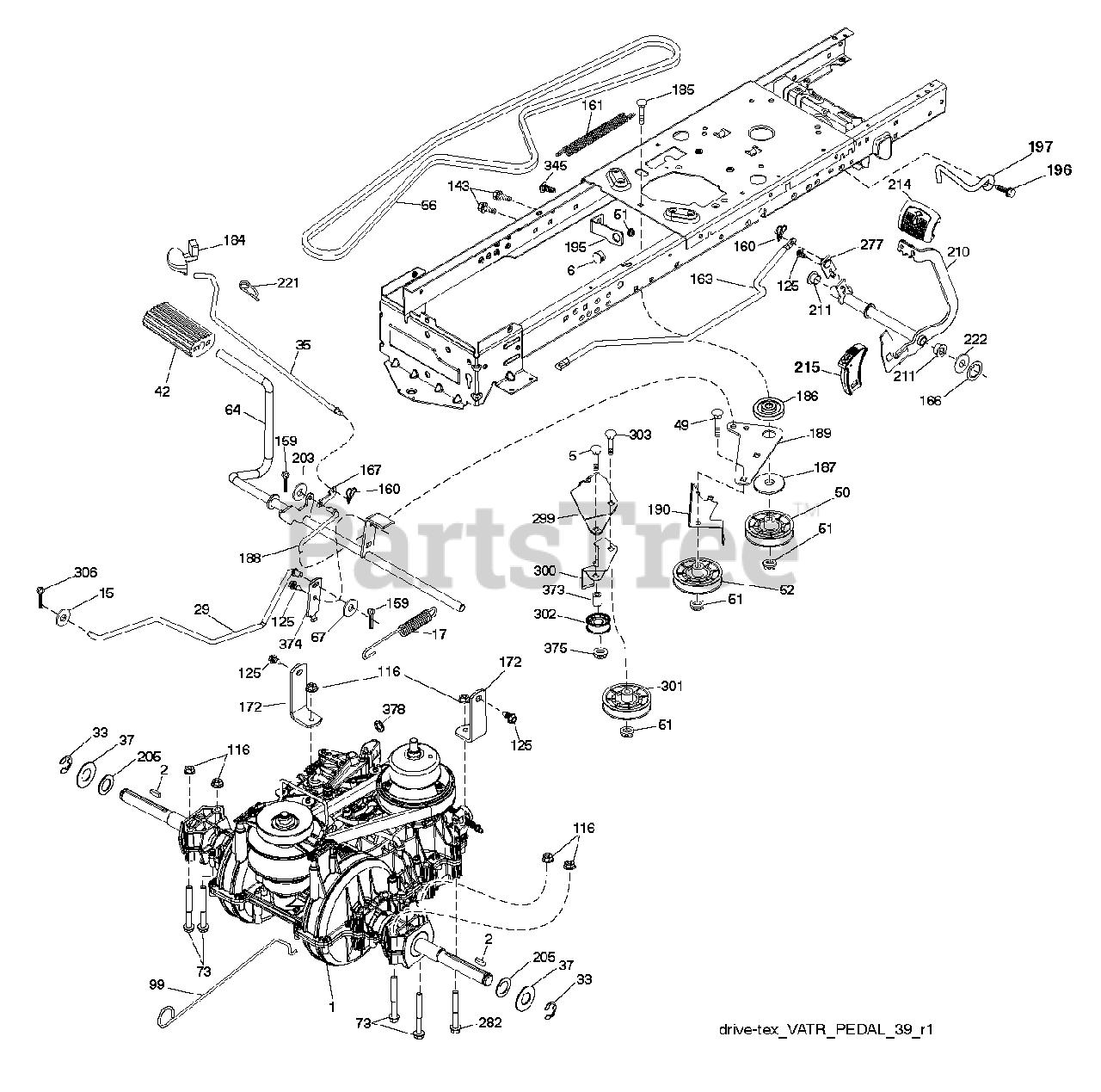

DRIVE Parts Diagram

  • Title

1

Poulan 000000000

Note: TRANSAXLE TUFFTORQ K46 BT (426120)

$

$

Not available

2

Poulan 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 20+

0

5

Poulan 874760636

BOLT

$5.99

$

In Stock, only 1 left!

0

6

Poulan 532124028

GROMMET T

$5.99

$

In Stock, only 1 left!

0

15

Poulan 819131316

WASHER

$4.99

$

In Stock, only 3 left!

0

17

Poulan 501487101

Brake Variator Spring

$7.99

$

In Stock, Qty 10

0

29

Poulan 584823101

RB ROD.BRAKE.VARIATOR.SD2
(Superseded to 584823102)

$22.99

$

In Stock, only 1 left!

0

33

Poulan 812000001

E-RING LT

$3.49

$

In Stock, Qty 20+

0

35

Poulan 583864501

ROD .BRAKE. PARKING. GT. HUSQ.
(Superseded to 583864502)

$13.99

$

In Stock, only 2 left!

0

37

Poulan 532188967

WASHER.HARDENED

$2.49

$

In Stock, Qty 20+

0

42

Poulan 532124872

(Superseded to 510089501)

$6.99

$

In Stock, only 2 left!

0

49

Poulan 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, Qty 7

0

50

Poulan 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 20+

0

51

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

52

Poulan 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

In Stock, Qty 20+

0

56

Poulan 532197253

BELT.DRIVE.MOWER.TEX.42"
(Superseded to 592855001)

$43.99

$

In Stock, Qty 20+

0

64

Poulan 532448353

SUBASM.SHAFT.PEDAL.BRAKE
(Superseded to 589671401)

$51.99

$

Usually ships in 3-10 days

0

67

Poulan 582580101

Washer, Nylon 1332 X 1316

$5.99

$

Usually ships in 3-10 days

0

73

Poulan 874490544

BOLT HEX 5/16-18 GR 5
(Superseded to 595316601)

$4.99

$

Usually ships in 3-10 days

0

99

Poulan 532435935

ROD.BYPASS.VARIATOR.GEN2

$5.99

$

In Stock, only 2 left!

0

116

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.49

$

In Stock, Qty 13

0

125

Poulan 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 19

0

143

Poulan 817490508

SCREW LT
(Superseded to 539990858)

$

$

Not available

159

Poulan 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

In Stock, Qty 6

0

160

Poulan 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, Qty 9

0

161

Poulan 532105709

SPRING, RETURN LT

$13.99

$

In Stock, Qty 17

0

163

Poulan 587847901

(Superseded to 583971301)

$34.99

$

In Stock, only 2 left!

0

166

Poulan 532429164

NUT.PUSH.625

$4.99

$

In Stock, Qty 7

0

167

Poulan 532405257

LATCH.BRAKE.SPRING
(Superseded to 531152901)

$3.49

$

In Stock, Qty 8

0

172

Poulan 583974201

STRAP.TORQUE.VARIATOR

$7.99

$

Usually ships in 3-10 days

0

184

Poulan 587653701

(Superseded to 532196439)

$13.99

$

In Stock, Qty 18

0

185

Poulan 872110622

BOLT

$4.99

$

In Stock, Qty 7

0

186

Poulan 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 20+

0

187

Poulan 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 18

0

188

Poulan 582217001

Ground Drive Clutch Link, Long
(Superseded to 532194323)

$5.99

$

In Stock, only 4 left!

0

189

Poulan 532194317

BELLCRANK.GROUND.DRIVE.TEX.
(Superseded to 531169001)

$7.99

$

In Stock, only 3 left!

0

190

Poulan 532194318

KEEPER.BELLCRANK.DRIVE

$6.99

$

In Stock, only 3 left!

0

195

Poulan 581504601

BRACKET.BRAKE.BRAKE.VAR.SD

$9.49

$

Usually ships in 3-10 days

0

196

Poulan 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

197

Poulan 585658601

Clutch Anti-Rotation Wireform
(Superseded to 585658602)

$5.99

$

In Stock, only 1 left!

0

203

Poulan 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

205

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

210

Poulan 588921001

PEDAL.ASM.ROCKET.VARIATOR.LT
(Superseded to 588921002)

$51.99

$

In Stock, only 2 left!

0

211

Poulan 532120183

BEARING.NYLON

$6.99

$

In Stock, Qty 18

0

214

Poulan 532421263

PEDAL.FORWARD.PAD.TEX

$7.99

$

In Stock, only 2 left!

0

215

Poulan 532448254

CAP.PEDAL.REVERSE.VARIATOR

$

$

Not available

221

Poulan 532403187

RETAINER.SPRING.CLIP.H

$4.99

$

In Stock, only 2 left!

0

222

Poulan 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$4.99

$

In Stock, only 2 left!

0

277

Poulan 532448500

SUBASM.LINK.ROCKER.PEDAL

$9.49

$

In Stock, only 2 left!

0

282

Poulan 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$5.99

$

In Stock, only 2 left!

0

299

Poulan 532415683

BRACKET.MOUNT.IDLERS

$9.49

$

In Stock, only 1 left!

0

300

Poulan 532415681

KEEPER.IDLERS.REAR.VARIATOR
(Superseded to 531153901)

$4.99

$

In Stock, Qty 5

0

301

Poulan 532415680

PULLEY.IDLER.V-GROOVE

$31.99

$

In Stock, only 3 left!

0

302

Poulan 581420501

PULLEY.IDLER.FLAT.2"

$28.99

$

In Stock, Qty 6

0

303

Poulan 872110618

BOLT CARRIAGE

$5.99

$

In Stock, only 2 left!

0

306

Poulan 876020416

PIN COTTER
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

345

Poulan 872110606

BOLT
(Superseded to 596136001)

$4.99

$

In Stock, only 1 left!

0

373

Poulan 581461801

SPACER.IDLER

$4.99

$

In Stock, only 3 left!

0

374

Poulan 581475201

ARM.CONTROL.BRAKE

$6.99

$

Usually ships in 3-10 days

0

375

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

378

Poulan 584287701

NUT.PUSH.8MM

$3.49

$

In Stock, Qty 7

0
