PP 22VH46 (960420184-00) - Poulan Pro Lawn Tractor (2015-08) SEAT Parts Diagram

Lawn Tractor

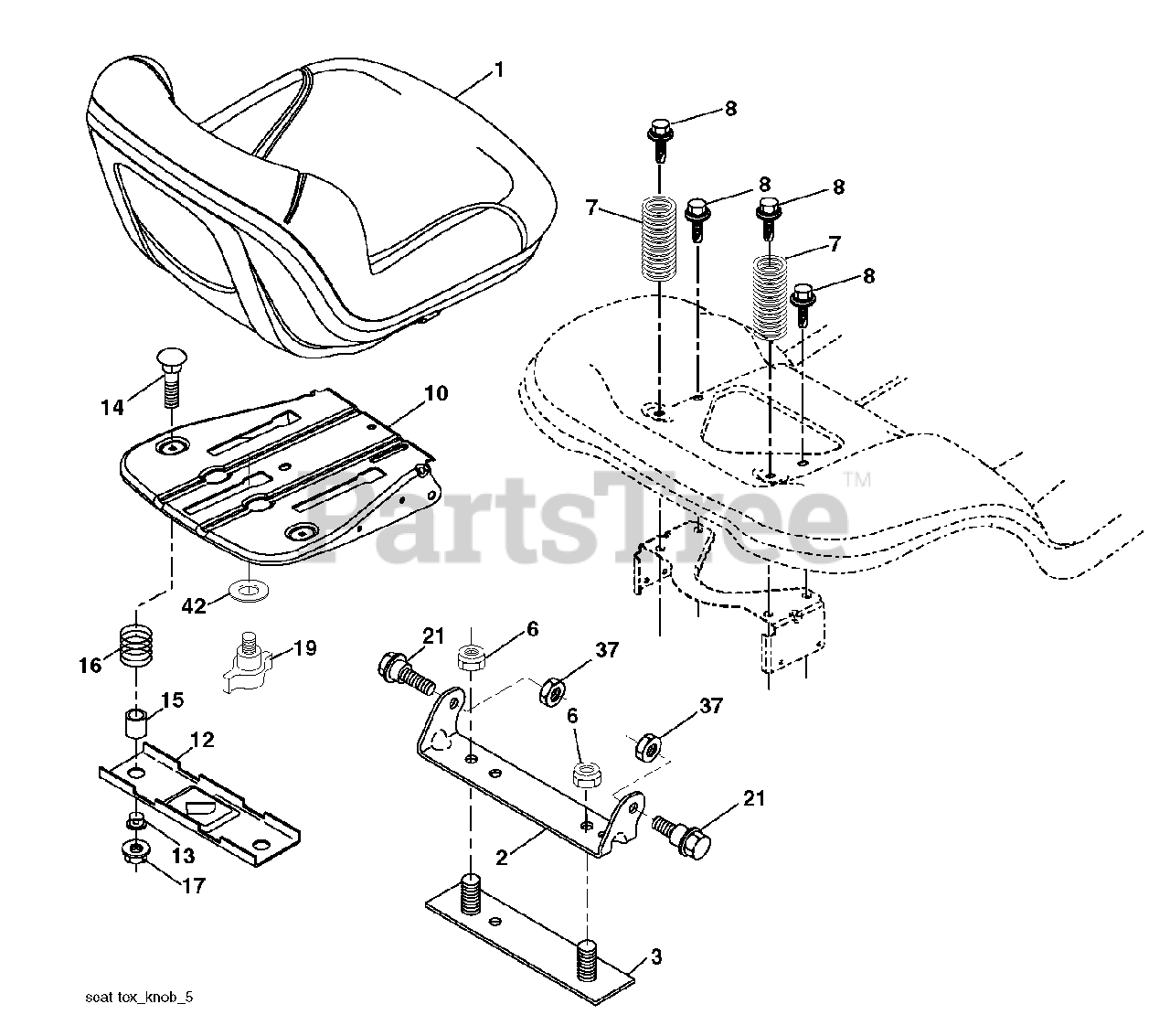

SEAT Parts Diagram

  • Title

1

Poulan 532197523

SEAT.TP130.BLK.PPRO.MILSCO

$341.99

$

Usually ships in 3-10 days

0

2

Poulan 532180166

BRKT.PIVOT.FENDER

$14.99

$

In Stock, only 2 left!

0

3

Poulan 532140675

STRAP

$

$

Not available

6

Poulan 873800600

NUT
(Superseded to 873680600)

$

$

Not available

7

Poulan 587613301

Compression Spring, Seat Black

$7.49

$

In Stock, Qty 20+

0

8

Poulan 532171877

BOLT, 5/16-18 X 1 3/4

$5.99

$

In Stock, Qty 6

0

10

Poulan 532441805

PAN.ASM.SEAT.SHORT.SLD.ADJ.TEX

$71.99

$

Usually ships in 3-10 days

0

12

Poulan 532199370

BRKT.MNT.OPC.SW.SEAT.

$14.99

$

Usually ships in 3-10 days

0

13

Poulan 532121248

BUSHING

$

$

Not available

14

Poulan 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$

$

Not available

15

Poulan TBD

Note: (532 14 43-00) SPLIT SPACER

$

$

Not available

16

Poulan 532123740

SPRING COMPRESSED

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 532123976

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

19

Poulan 532199372

KNOB.SEAT.ADJ.

$7.49

$

In Stock, Qty 20+

0

21

Poulan 587907801

Shoulder Bolt, 5/16-18 X 5/8

$3.49

$

In Stock, only 1 left!

0

37

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

42

Poulan 532199371

WASHER.CUP.SEAT.
(Superseded to 529846501)

$3.99

$

In Stock, Qty 9

0
