PP 24KA54 (960420193-00) - Poulan Lawn Tractor (2016-05) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

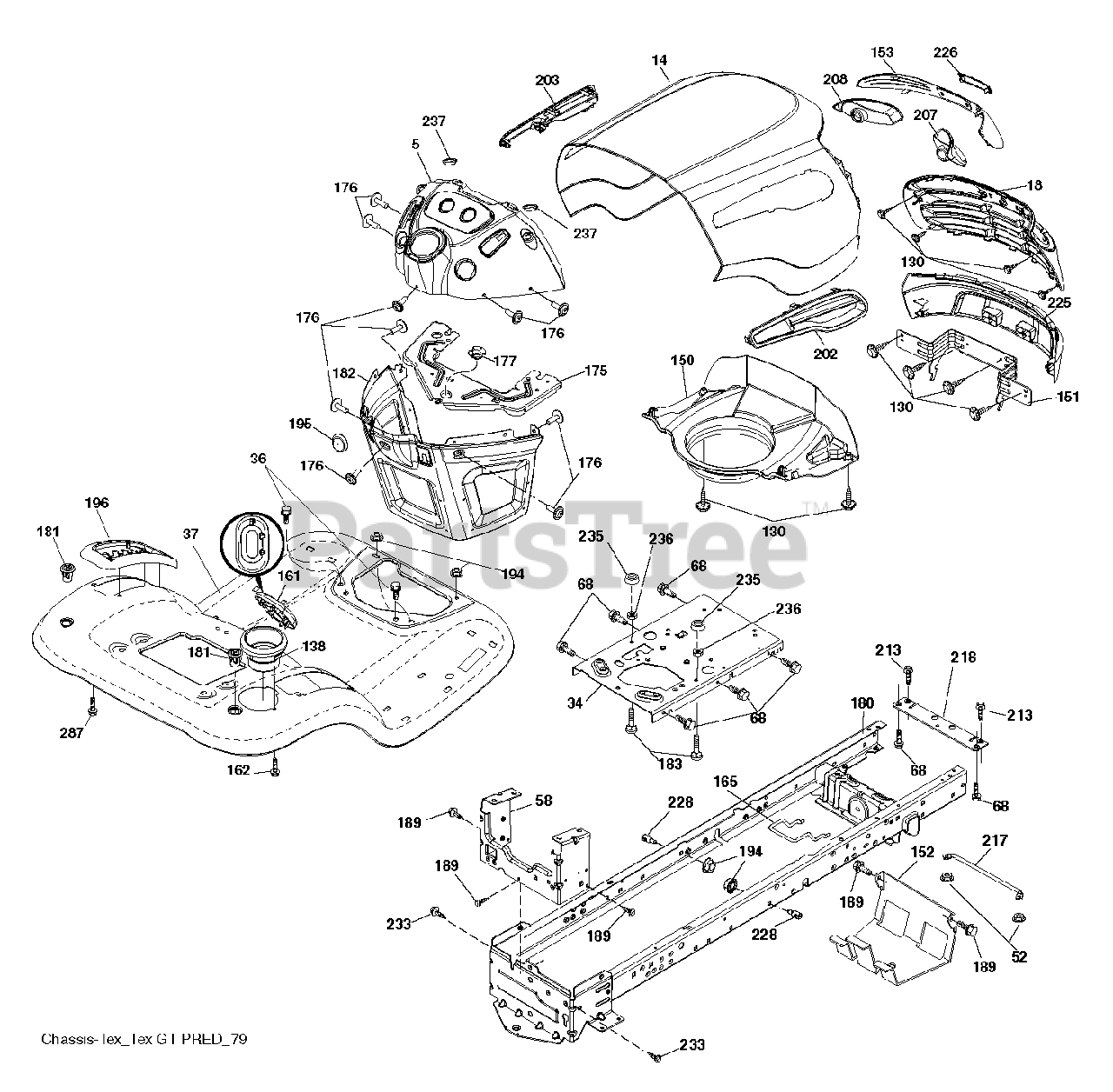

CHASSIS ENCLOSURES Parts Diagram

  • Title

5

Poulan 532424699

DASH.YT.PRED.RD.GA.ELE.2CY.BLK

$

$

Not available

14

Poulan 532448042

HOOD.PNT.PREDATOR.YT/GT.BLACK

$136.99

$

Usually ships in 3-10 days

0

18

Poulan 532427333

GRILLE.SVC.PREDATOR.YT.TEX

$68.99

$

Usually ships in 3-10 days

0

34

Poulan 580910801

PLATE.ENGINE.WELDED.CHASSIS

$74.99

$

Usually ships in 3-10 days

0

36

Poulan 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, only 2 left!

0

37

Poulan 583939701

FENDER.TLT.W/CPH.W/FW.BLACK

$341.99

$

Usually ships in 3-10 days

0

52

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.49

$

In Stock, Qty 20+

0

58

Poulan 532412280

DRAWBAR UPPER 2PC SMALL FENDER
(Superseded to 531152601)

$56.99

$

In Stock, Qty 10

0

68

Poulan 817490508

SCREW LT
(Superseded to 539990858)

$

$

Not available

130

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.49

$

In Stock, Qty 15

0

138

Poulan 532409730

CUPHOLDER.TL.TEX.BLACK

$7.99

$

Usually ships in 3-10 days

0

150

Poulan 584862901

PREDATOR.YT.GT.HOOD.AIR DUCT

$30.99

$

Usually ships in 3-10 days

0

151

Poulan 532445494

BRACKET.PIVOT.PREDATOR

$37.99

$

Usually ships in 3-10 days

0

152

Poulan 532199535

SHIELD.BROWNING.W/TEX
(Superseded to 531169901)

$28.99

$

In Stock, Qty 13

0

153

Poulan 532424717

LENS.BAR.PREDATOR.YT.CLEAR

$26.99

$

In Stock, only 1 left!

0

161

Poulan 532412072

WINDOW.FUEL.LT.TEX.BLACK
(Superseded to 532193229)

$4.99

$

Usually ships in 3-10 days

0

162

Poulan 532142432

SCREW.HI-LO.CONSOLE
(Superseded to 596134101)

$3.49

$

In Stock, Qty 19

0

165

Poulan 532196826

SUPPORT.TANK.REAR.W/TEX

$31.99

$

Usually ships in 3-10 days

0

175

Poulan 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$39.99

$

Usually ships in 3-10 days

0

176

Poulan 532400776

SCREW.#10-24X5/8.RN.QU

$4.99

$

In Stock, only 2 left!

0

177

Poulan 532195228

BUSHING STEERING

$5.99

$

In Stock, Qty 10

0

180

Poulan 532415063

CHASS.WLDMNT.TL.12GA/2P.48/54

$227.99

$

Usually ships in 3-10 days

0

181

Poulan 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Poulan 532406859

DASH.LOWER.COMMON.12V.ADAPTOR

$113.99

$

In Stock, only 4 left!

0

183

Poulan 874520520

BOLT.5/16-18X1-1/4 FULL THD
(Superseded to 595305701)

$4.99

$

In Stock, Qty 14

0

189

Poulan 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 13

0

194

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.49

$

In Stock, Qty 13

0

195

Poulan 532404137

PLUG.HOLE.DASH.

$3.99

$

Usually ships in 3-10 days

0

196

Poulan 532431659

DCKLFT.CONSL.10POS.TLT.B/Y

$28.99

$

Usually ships in 3-10 days

0

202

Poulan 581859201

VENT.SIDE.HOOD.LH.PREDATOR.BLK

$

$

Not available

203

Poulan 581859101

VENT.SIDE.HOOD.RH.PREDATOR.BLK

$

$

Not available

207

Poulan 532198963

No Description Available
(Superseded to 583248801)

$

$

Not available

208

Poulan 532198964

No Description Available
(Superseded to 583248901)

$

$

Not available

213

Poulan 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

217

Poulan 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

218

Poulan 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

In Stock, only 2 left!

0

225

Poulan 532448091

(Superseded to 583726001)

$

$

Not available

226

Poulan 587748101

$

$

Currently unavailable

228

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

233

Poulan 532196539

BOLT.SHOULDER

$1.49

$

In Stock, Qty 20+

0

235

Poulan 532406129

SPACER FENDER
(Superseded to 596564201)

$5.99

$

Usually ships in 3-10 days

0

236

Poulan 873930500

NUT.CENTERLOCK.5/16-

$3.49

$

In Stock, Qty 5

0

237

Poulan 532403704

PLUG.MOUNT.CARGO.BLK

$4.99

$

Usually ships in 3-10 days

0

287

Poulan 817600406

SCREW 1/4X20

$3.49

$

In Stock, only 2 left!

0

-----

Poulan 532447870

BUMPER.SINGLE TUBE.421

$

$

Not available
