PP 24KA54 (960420193-00) - Poulan Lawn Tractor (2016-05) ENGINE Parts Diagram

Lawn Tractor

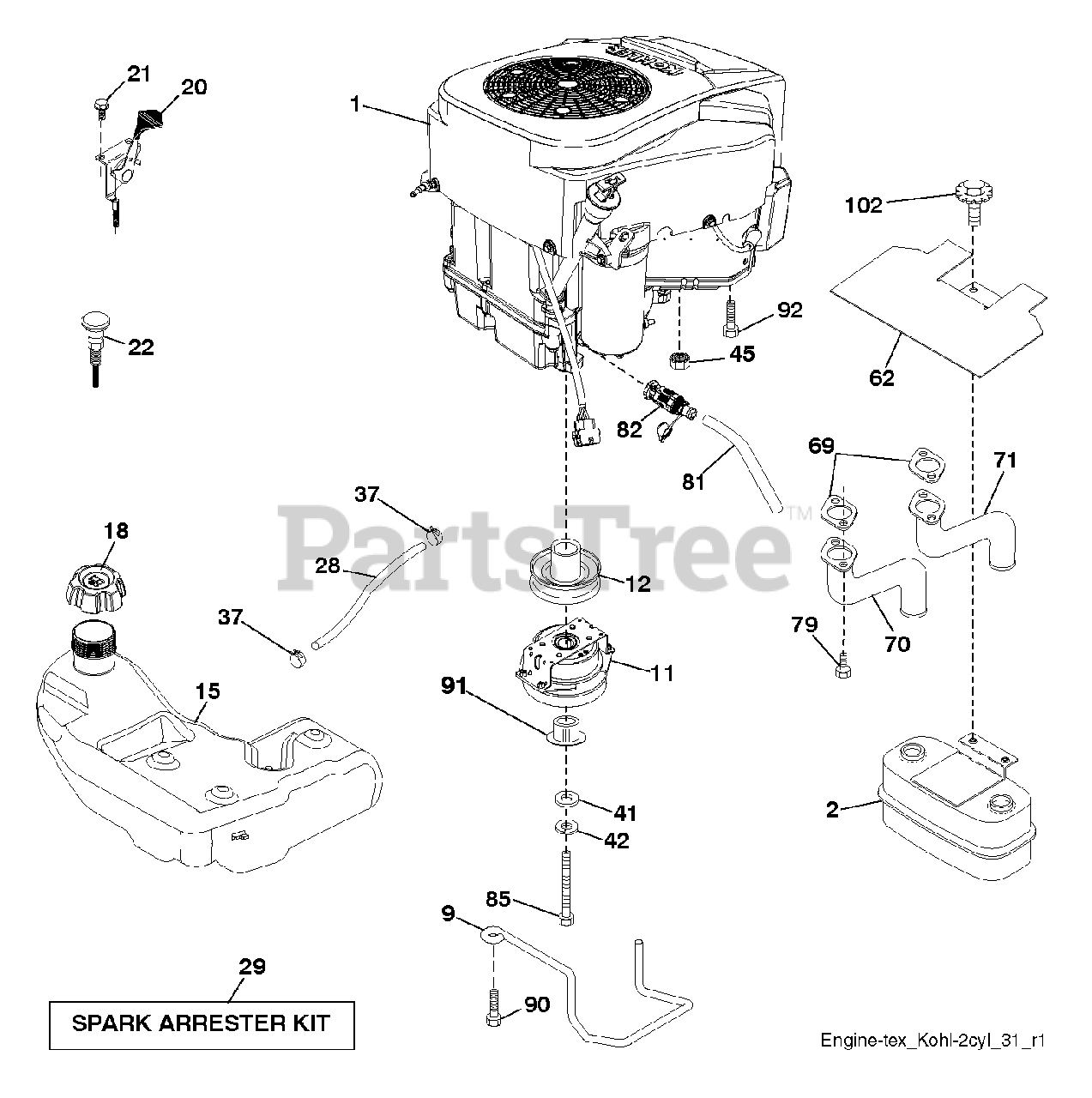

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: ENGINE KOHL MODEL NO KT735-3025 (586406801)

$

$

Not available

2

Poulan 532445962

MUFFLER.ASM.TWN.EXTNDED.DFLCTR
(Superseded to 589818702)

$56.99

$

In Stock, only 1 left!

0

9

Poulan 584911601

KEEPER.BELT.ENGINE
(Superseded to 582540301)

$28.99

$

In Stock, only 4 left!

0

11

Poulan 587241601

Clutch, Ogura 5.0Pd Gt1.5A-Eh07

$319.99

$

In Stock, only 2 left!

0

12

Poulan 532402980

PULLEY.ENGINE.ENX

$62.99

$

Usually ships in 3-10 days

0

15

Poulan 532438080

TANK.ASSY.3.GAL.EPA
(Superseded to 532438031)

$

$

Not available

18

Poulan 585124802

Fuel Cap Assembly, 3" Black

$17.99

$

In Stock, only 2 left!

0

20

Poulan 532182937

THROTTLE CONTROL
(Superseded to 532177328)

$31.99

$

In Stock, Qty 6

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.49

$

In Stock, Qty 15

0

22

Poulan 532191596

CONTROL CHOKE

$39.99

$

In Stock, Qty 6

0

28

Poulan 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$26.99

$

In Stock, only 1 left!

0

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

$193.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

41

Poulan 532126197

WASHER

$7.99

$

In Stock, only 3 left!

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, Qty 17

0

45

Poulan 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Poulan 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

69

Poulan 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

$3.49

$

Usually ships in 3-10 days

0

70

Poulan 583954501

Exhaust Pipe, LH CV18/20

$26.99

$

In Stock, only 2 left!

0

71

Poulan 583954801

Exhaust Pipe, RH CV18/20
(Superseded to 532146700)

$22.99

$

In Stock, only 2 left!

0

79

Poulan 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 10

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$20.99

$

In Stock, Qty 7

0

85

Poulan 501606601

Hex Bolt, 7/16-20 X 3.75 Gr5 Red

$3.99

$

In Stock, only 4 left!

0

90

Poulan 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

91

Poulan 532187495

BUSHING.1.375OD

$5.99

$

Usually ships in 3-10 days

0

92

Poulan 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 11

0

102

Poulan 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 11

0
