PP 24VH54 (960420186-00) - Poulan Pro Lawn Tractor (2015-08) ENGINE Parts Diagram

Lawn Tractor

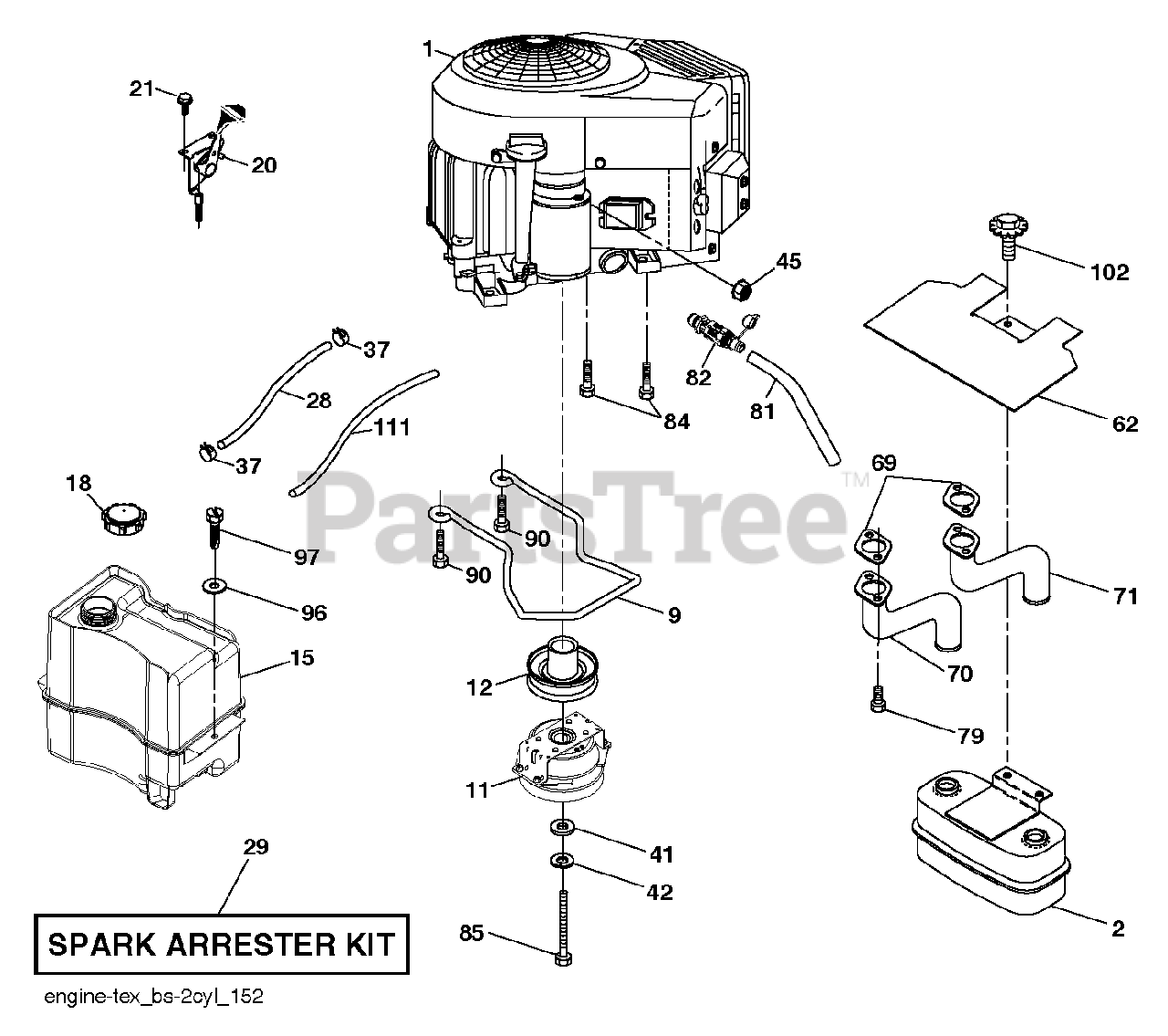

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: Engine Briggs Model No 44N877-003-G1 (501259701)

$

$

Not available

2

Poulan 532445962

MUFFLER.ASM.TWN.EXTNDED.DFLCTR
(Superseded to 589818702)

$71.99

$

In Stock, Qty 17

0

9

Poulan 501832601

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$14.99

$

In Stock, only 2 left!

0

11

Poulan 587241601

Clutch, Ogura 5.0Pd Gt1.5A-Eh07

$299.99

$

In Stock, Qty 5

0

12

Poulan 532405097

PULLEY.ENGINE.TUFFTORQ

$71.99

$

Usually ships in 3-10 days

0

15

Poulan 532433007

TANK.ASM.FRT.2.5 GAL.W/CAP.EPA
(Superseded to 532433005)

$

$

Not available

18

Poulan 581176101

CAP.FUEL.2 WAY VENT

$39.99

$

In Stock, only 2 left!

0

20

Poulan 587242501

Throttle, Cobra 38" Readstart.Bk

$

$

Not available

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 8

0

28

Poulan 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$14.99

$

In Stock, only 2 left!

0

29

Poulan 532131780

SPARK ARRESTOR KIT

$

$

Not available

37

Poulan 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

41

Poulan 532126197

WASHER

$8.49

$

In Stock, Qty 14

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

45

Poulan 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Poulan 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

69

Poulan 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Poulan 581881101

EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 532159955)

$35.99

$

In Stock, only 3 left!

0

71

Poulan 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK
(Superseded to 532160589)

$29.99

$

In Stock, only 3 left!

0

79

Poulan 532183906

SCREW.SOCKET.HEAD.5/16-18
(Superseded to 596134202)

$3.99

$

In Stock, Qty 9

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 20+

0

84

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

85

Poulan 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

$3.99

$

In Stock, Qty 11

0

90

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

96

Poulan 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

97

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

102

Poulan 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

111

Poulan 532414119

RP PURGE LINE
(Superseded to 587044580)

$15.99

$

Usually ships in 3-10 days

0
