PP 25 CFA (967185601) - Poulan Pro String Trimmer (2013-07) SHAFT HANDLE Parts Diagram

String Trimmer

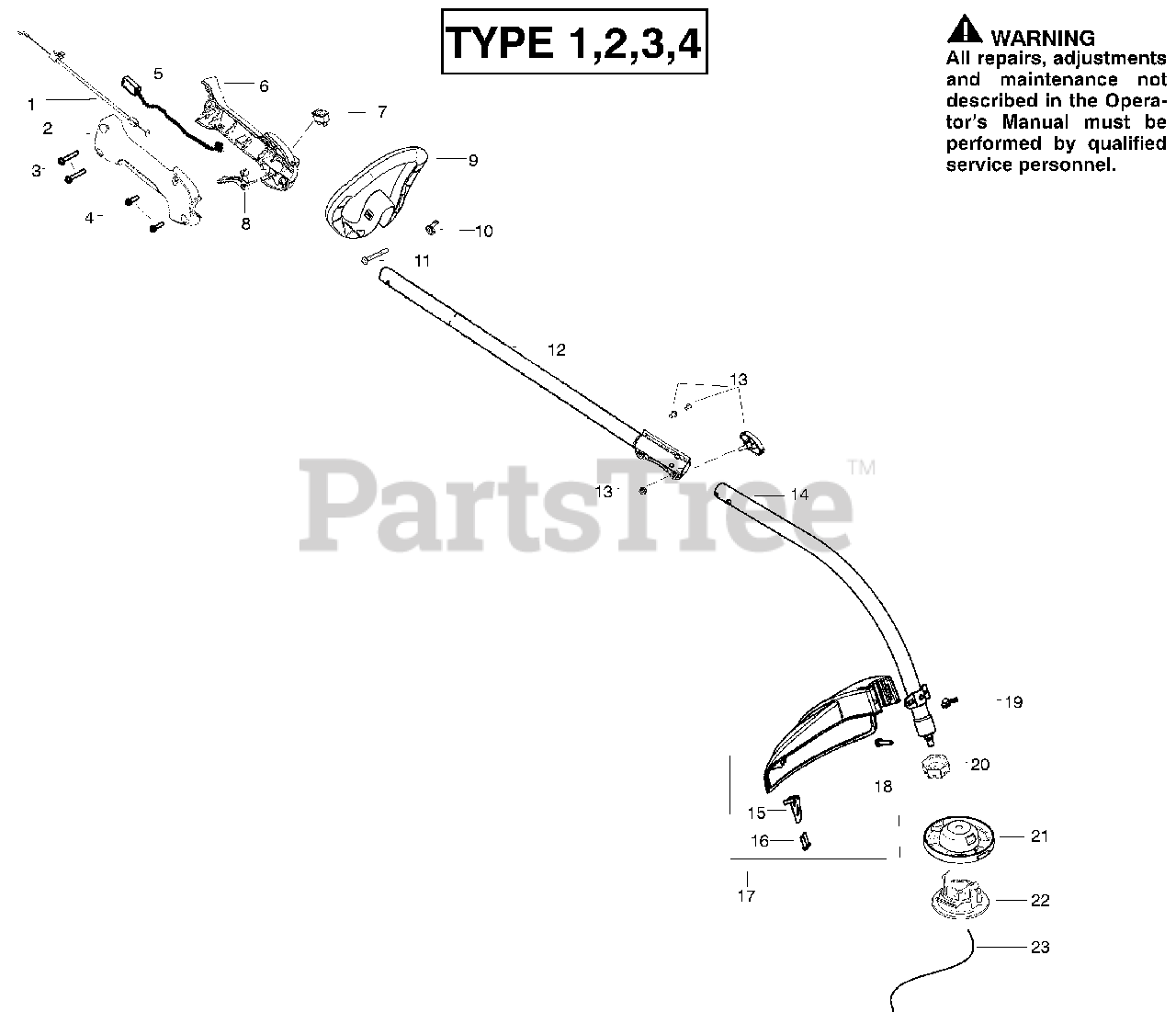

SHAFT HANDLE Parts Diagram

  • Title

1

Poulan 530059759

ASSY THROTTLE CABLE

$17.99

$

Usually ships in 3-10 days

0

2

Poulan 530057541

HOUSING THROTTLE FAN

$12.99

$

Usually ships in 3-10 days

0

3

Poulan 530016406

SCREW #10 PLASTITE 1.362

$6.49

$

In Stock, only 1 left!

0

4

Poulan 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

5

Poulan 530054183

WIRE ASSY

$8.99

$

In Stock, only 1 left!

0

6

Poulan 530059760

HSG THROTTLE LH

$9.99

$

Usually ships in 3-10 days

0

7

Poulan 545030601

Switch Kit
(Superseded to 545049301)

$9.99

$

In Stock, Qty 17

0

8

Poulan 545077601

TRIGGER RED
(Superseded to 530049107)

$4.99

$

In Stock, Qty 16

0

9

Poulan 530057546

HANDLE ASSIST 1"
(Superseded to 530058583)

$8.99

$

Usually ships in 3-10 days

0

10

Poulan 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

11

Poulan 530015786

BOLT 1/4-20 X 2 SQUARE

$4.99

$

In Stock, only 4 left!

0

12

Poulan 575260201

KIT UPPER SHAFT BLACK

Note: INCL 13

$44.99

$

In Stock, only 2 left!

0

13

Poulan 575291801

ASSY COUPLER BLACK
(Superseded to 587119302)

$8.99

$

In Stock, Qty 10

0

14

Poulan 576028301

KIT LOWER SHAFT CURVED

$60.99

$

Usually ships in 3-10 days

0

15

Poulan 530052286

LINE CUTTER

$

$

Not available

16

Poulan 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

17

Poulan 530071802

KIT SHIELD

Note: INCL 15 16 18 19

$26.99

$

Usually ships in 3-10 days

0

18

Poulan 530015820

BOLT, TYPE 2

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

20

Poulan 545017404

DUST CUP
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

21

Poulan 545202402

HEAD CUTTING FIX LINE

$

$

Not available

22

Poulan 545202501

CAP FIXED LINE 6

$

$

Not available

23

Poulan 581681001

ACCY WE.095 X 16.5" LINE 12PCS

$5.49

$

In Stock, only 1 left!

0

Poulan 115499727

$

$

Currently unavailable

Poulan 545209101

DECAL SHAFT LOWER

$

$

Not available

Poulan 545167703

DECAL WARNING UPPER SHAFT

$2.49

$

Usually ships in 3-10 days

0
