PP 25 E - Poulan String Trimmer (2009-01) Shaft Parts Diagram

String Trimmer

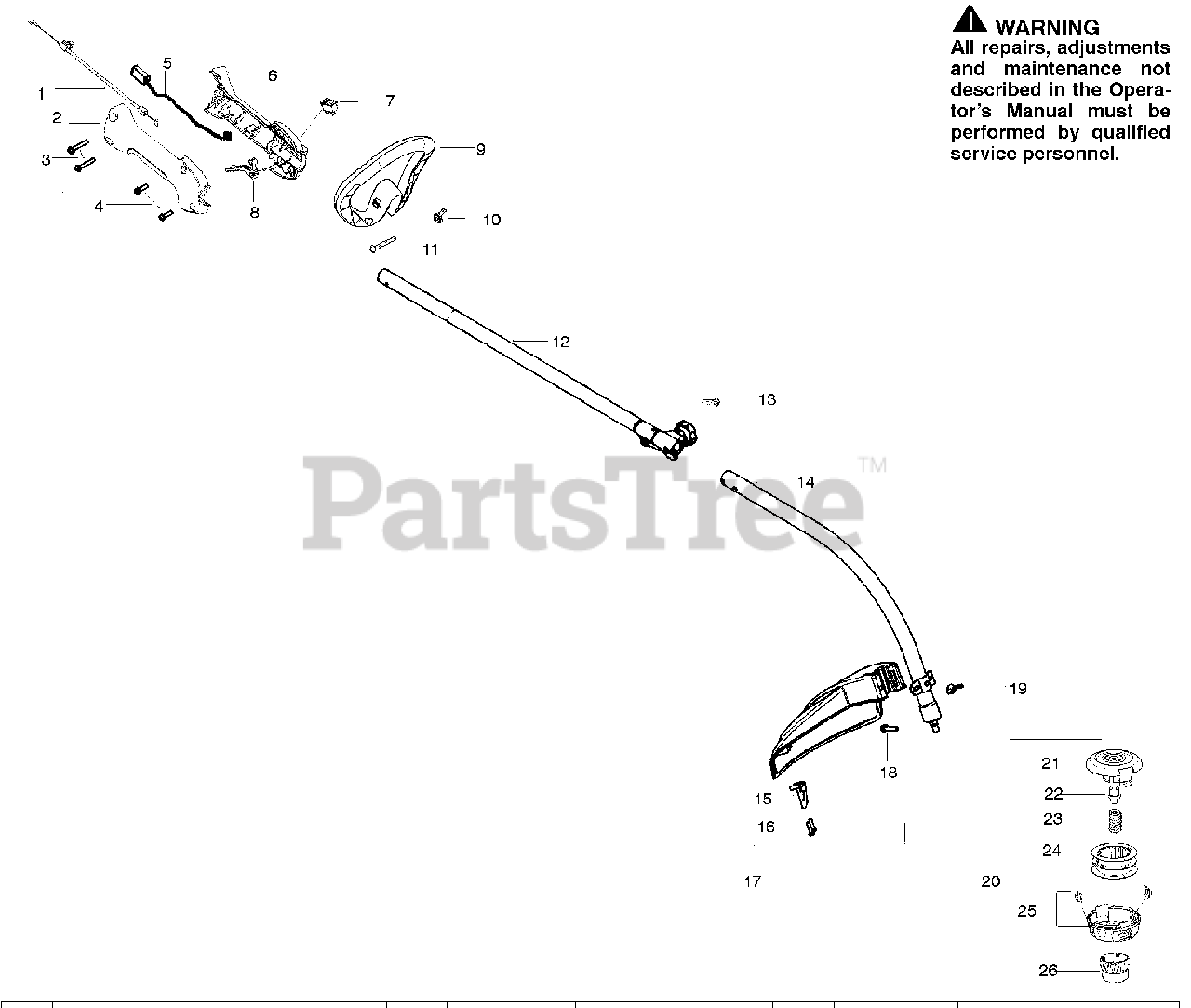

Shaft Parts Diagram

  • Title

1

Electrolux/AYP 530059759

Assy-Throttle Cable

$17.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530057541

Hsg.-Throttle (RH)

$12.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530016406

Screw

$6.49

$

In Stock, only 1 left!

0

4

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

5

Electrolux/AYP 530054183

Assy.-Wire

$8.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 530059760

Hsg. Throttle (LH)

$9.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 545077601

Trigger-Throttle
(Superseded to 530049107)

$4.99

$

In Stock, Qty 13

0

9

Electrolux/AYP 530058583

Assy-Handle-Assist

Note: (Incl. 10,11)

$8.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530015786

Bolt

$4.99

$

In Stock, only 4 left!

0

12

Electrolux/AYP 530071791

Kit-Upper Shaft
(Superseded to 575260201)

Note: (Incl. flex, clamp & 13)

$44.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530071788

Kit-Lower Shaft

$66.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 530052286

Limiter-Line

$

$

Not available

16

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

17

Electrolux/AYP 530071802

Kit-Shield Assy.

Note: (Incl. 15,16,18,19)

$26.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530015820

Bolt

$6.49

$

In Stock, only 1 left!

0

19

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

20

Electrolux/AYP 952701717

Accy-TNG7
(Superseded to 590267601)

Note: (Incl. 21,22,23,24,25,26)

$26.99

$

In Stock, Qty 6

0

21

Electrolux/AYP 537419303

Housing

$10.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 537419901

Adapter

$8.99

$

In Stock, only 4 left!

0

23

Electrolux/AYP 537338801

Spring
(Superseded to 537338801)

$6.49

$

In Stock, Qty 7

0

24

Electrolux/AYP 545080801

Assy-Wound Spool

$

$

Not available

25

Electrolux/AYP 545003365

Kit-Cover and Eyelet

$12.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 537419601

Knob
(Superseded to 537419601)

$6.49

$

In Stock, Qty 20+

0

26

Electrolux/AYP 545186849

Operator Manual

Note: Not Shown

$

$

Not available

26

Electrolux/AYP 545209101

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

26

Electrolux/AYP 545167703

Decal-Upper Shaft

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
