PP 25 - Poulan Pro String Trimmer, Type 1 Engine Type 1 Parts Diagram

String Trimmer, Type 1

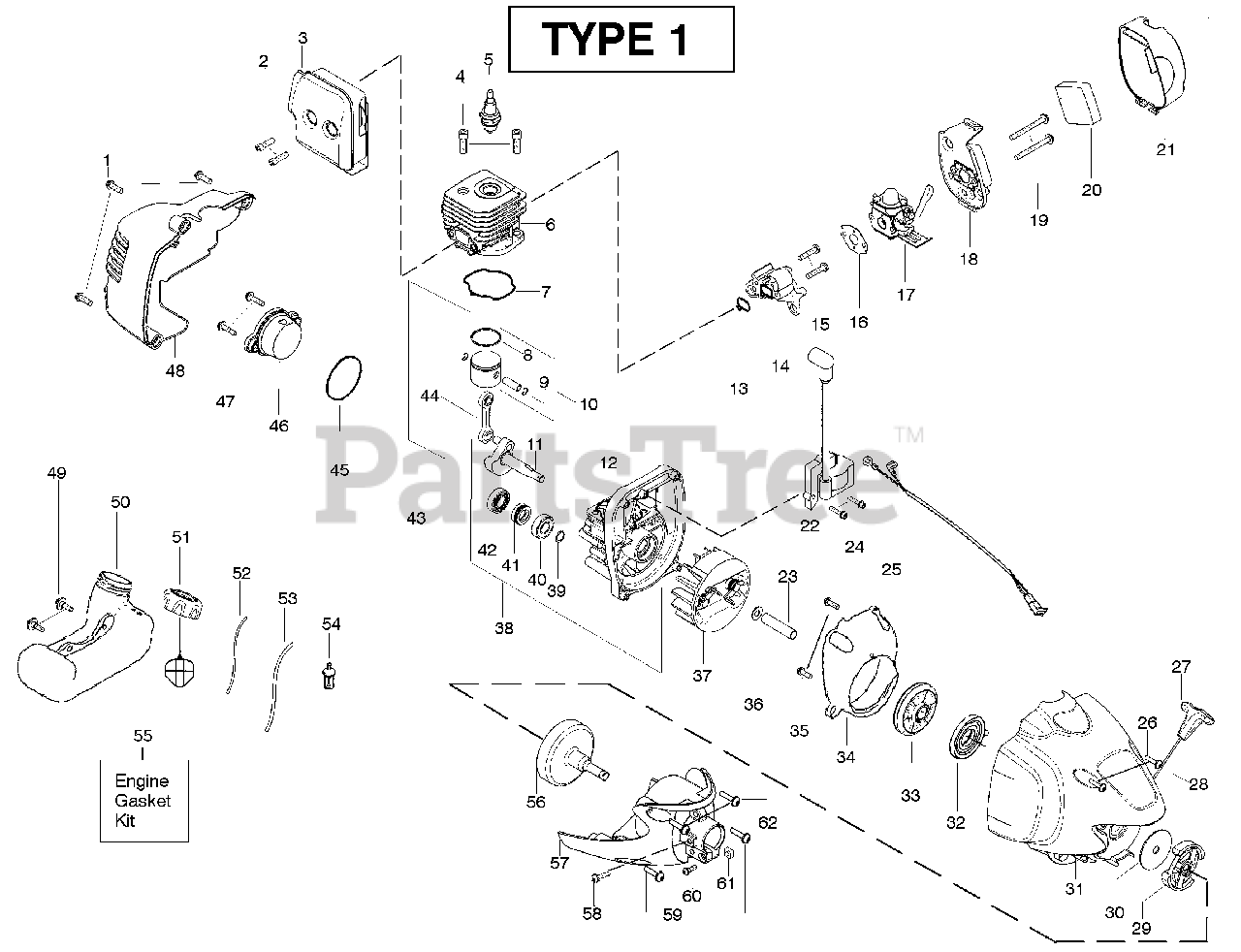

Engine Type 1 Parts Diagram

  • Title

1

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

2

Poulan 530058982

Bolt-Muffler

$4.99

$

In Stock, Qty 12

0

3

Poulan 530057538

Assy-Muffler/Shield

Note: (Incl. 2)

$

$

Not available

4

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 8

0

5

Poulan 952030249

Spark Plug (RCJ 6Y)

$4.99

$

In Stock, Qty 20+

0

6

Poulan 530012541

Cylinder

$20.99

$

In Stock, only 1 left!

0

7

Poulan 530071750

Seal-Cylinder (kit)

$13.99

$

In Stock, Qty 7

0

8

Poulan 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

9

Poulan 530015162

Retainer-Piston Pin

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 530071833

Kit - Piston

Note: (Incl. 8, 9)

$37.99

$

In Stock, only 1 left!

0

11

Poulan 530012579

Assy-Crankshaft
(Superseded to 545145802)

$26.99

$

Usually ships in 3-10 days

0

12

Poulan 530012582

Assy-Crankcase

Note: (Incl. 40,41,42)

$21.99

$

Usually ships in 3-10 days

0

13

Poulan 530071750

Seal-Cyl/Carb.(kit)

$13.99

$

In Stock, Qty 7

0

14

Poulan 530057547

Adapter-Carb.

$12.99

$

In Stock, only 1 left!

0

15

Poulan 530016441

Screw

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 530071750

Gasket-Carb. (kit)

$13.99

$

In Stock, Qty 7

0

17

Poulan 530071811

Kit-Carb.(C1U-W19)

Note: Note: Repair kits are not available for this carburetor

$50.99

$

In Stock, Qty 15

0

18

Poulan 545077501

Air Box

$12.99

$

In Stock, only 3 left!

0

19

Poulan 530016429

Screw

$6.49

$

In Stock, Qty 8

0

20

Poulan 530036575

Foam-Air Filter

$4.99

$

In Stock, Qty 16

0

21

Poulan 530057545

Cover-Air Box

$7.49

$

In Stock, Qty 11

0

22

Poulan 530035505

Ignition Module

$47.99

$

In Stock, only 4 left!

0

23

Poulan 530059758

Spacer-Flywheel

$6.99

$

Usually ships in 3-10 days

0

24

Poulan 530016357

Screw

$6.49

$

In Stock, Qty 5

0

25

Poulan 545015601

Assy-Switch wire

$14.99

$

Usually ships in 3-10 days

0

26

Poulan 530016386

Screw

$10.99

$

In Stock, Qty 9

0

27

Poulan 530054834

Handle-Starter

$4.99

$

In Stock, only 1 left!

0

28

Poulan 545050409

Kit - Rope

$7.49

$

In Stock, only 3 left!

0

29

Poulan 530055122

Assy-Clutch

$13.99

$

In Stock, Qty 5

0

30

Poulan 530094189

Washer-Clutch

$6.49

$

In Stock, only 1 left!

0

31

Poulan 545016004

Assy.-Fan Hsg
(Superseded to 545016102)

$27.99

$

Usually ships in 3-10 days

0

32

Poulan 545054901

Spring-Starter
(Superseded to 545008014)

$7.49

$

In Stock, Qty 10

0

33

Poulan 545050407

Kit-Starter Pulley

$18.99

$

In Stock, Qty 5

0

34

Poulan 545080601

Baffle

$9.99

$

In Stock, only 2 left!

0

35

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

36

Poulan 530016463

Washer-Clutch Flat

$4.99

$

In Stock, only 4 left!

0

37

Poulan 530039243

Assy-Flywheel
(Superseded to 577235901)

$14.99

$

In Stock, only 1 left!

0

38

Poulan 530071951

Assy-C'case & C'shaft
(Superseded to 545102101)

Note: (Incl. 11,12,39)

$22.35

$

Usually ships in 3-10 days

0

39

Poulan 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

40

Poulan 530055728

Outer Bearing

$9.99

$

Usually ships in 3-10 days

0

41

Poulan 530019264

Seal-C'shaft

$7.49

$

In Stock, only 1 left!

0

42

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

43

Poulan 530071785

Kit-piston/rod

Note: (Incl. 10,44)

$47.99

$

In Stock, only 1 left!

0

44

Poulan 530069945

Kit-Conn. Rod
(Superseded to 530049817)

$9.99

$

Usually ships in 3-10 days

0

45

Poulan 530071750

O-Ring-C'case (kit)

$13.99

$

In Stock, Qty 7

0

46

Poulan 530057954

Assy-Plug

Note: (incl.45)

$7.49

$

In Stock, only 4 left!

0

47

Poulan 530016386

Screw

$10.99

$

In Stock, Qty 9

0

48

Poulan 530057539

Shroud-Rear

$10.99

$

Usually ships in 3-10 days

0

49

Poulan 530016445

Retainer-Tank

$6.49

$

In Stock, Qty 6

0

50

Poulan 545103702

Assy-Fuel Tank

Note: (incl. filter, lines & fuel cap)

$

$

Not available

51

Poulan 530057973

Assy-Fuel Cap
(Superseded to 578931605)

$7.99

$

In Stock, only 1 left!

0

52

Poulan 530069247

Kit-Fuel Line (Small)

$6.49

$

In Stock, Qty 20+

0

53

Poulan 530069216

Kit-Fuel Line (Large)

$6.49

$

In Stock, Qty 20+

0

54

Poulan 530095646

Assy-Fuel Pickup

$4.99

$

In Stock, Qty 20+

0

55

Poulan 530071750

Kit-Engine Gasket

Note: (Incl. 7,13,16,45)

$13.99

$

In Stock, Qty 7

0

56

Poulan 530150247

Assy-Clutch Drum

$31.99

$

In Stock, only 1 left!

0

57

Poulan 545077301

Assy-Clutch Cover

Note: (Incl. 60,61)

$8.99

$

Usually ships in 3-10 days

0

58

Poulan 530016319

Screw-Align

$4.99

$

In Stock, Qty 10

0

59

Poulan 530015772

Screw

$3.99

$

In Stock, only 2 left!

0

60

Poulan 530016381

Screw 12-24

$3.49

$

Usually ships in 3-10 days

0

61

Poulan 530016382

Nut 12-24

$6.49

$

Usually ships in 3-10 days

0

62

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

62

Poulan 530058709

Bulb-Purge

Note: Not Shown

$7.49

$

In Stock, Qty 20+

0
