PP 25 - Poulan Pro String Trimmer, Type 2 Cutting Equipment Type 2 Parts Diagram

String Trimmer, Type 2

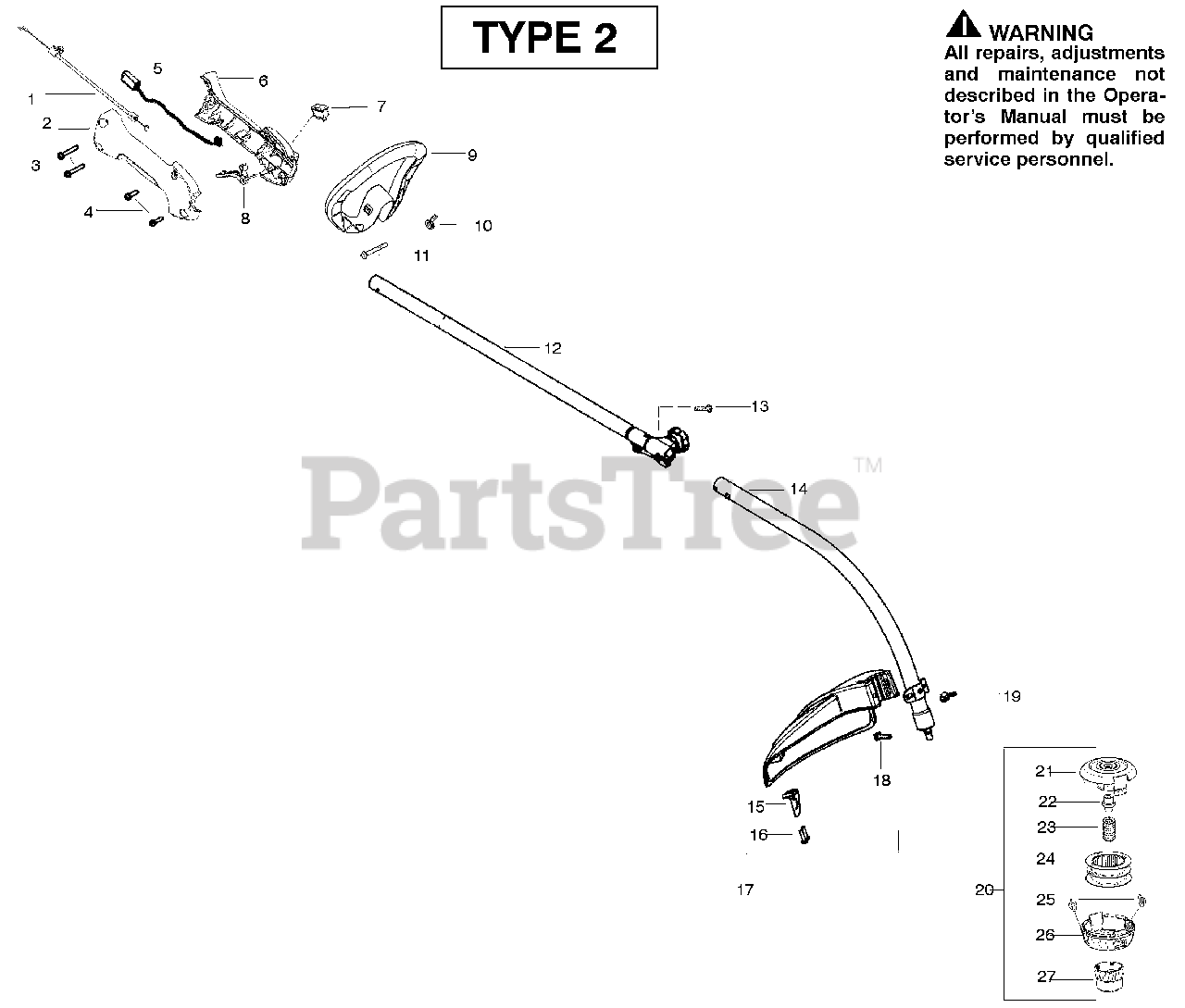

Cutting Equipment Type 2 Parts Diagram

  • Title

2

Poulan 530059759

Assy-Throttle Cable

$17.99

$

Usually ships in 3-10 days

0

2

Poulan 530057541

Hsg.-Throttle (RH)

$12.99

$

Usually ships in 3-10 days

0

3

Poulan 530016406

Screw

$6.49

$

In Stock, only 1 left!

0

4

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

5

Poulan 530054183

Assy.-Wire

$8.99

$

In Stock, only 1 left!

0

6

Poulan 530059760

Hsg. Throttle (LH)

$9.99

$

In Stock, only 1 left!

0

7

Poulan 545030601

Kit-Switch (momentary)
(Superseded to 545049301)

$9.99

$

In Stock, Qty 17

0

8

Poulan 545077601

Trigger-Throttle
(Superseded to 530049107)

$4.99

$

In Stock, Qty 16

0

9

Poulan 530057546

Handle-Assist
(Superseded to 530058583)

$8.99

$

Usually ships in 3-10 days

0

10

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

11

Poulan 530015786

Bolt

$4.99

$

In Stock, only 4 left!

0

12

Poulan 530071791

Kit-Upper Shaft
(Superseded to 575260201)

Note: (Incl. flex, clamp & 13)

$44.99

$

In Stock, only 2 left!

0

13

Poulan 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 530071788

Kit-Lower Shaft

$66.99

$

In Stock, only 1 left!

0

15

Poulan 530052286

Limiter-Line

$

$

Not available

16

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

17

Poulan 530071802

Kit-Shield Assy.

Note: (Incl. 15,16,18,19)

$26.99

$

Usually ships in 3-10 days

0

18

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

20

Poulan 537419205

Assy-TNG7
(Superseded to 537419214)

Note: (Incl. 21, 22,23,24,25,26,27)

$28.99

$

In Stock, only 2 left!

0

21

Poulan 537419303

Housing

$10.99

$

Usually ships in 3-10 days

0

22

Poulan 537419901

Adapter

$8.99

$

In Stock, only 4 left!

0

23

Poulan 537338801

Spring P25

$6.49

$

In Stock, Qty 7

0

24

Poulan 545080801

Assy-Wound Spool

$

$

Not available

25

Poulan 537419701

Eyelet
(Superseded to 545003365)

$12.99

$

In Stock, only 4 left!

0

26

Poulan 537419401

Cover
(Superseded to 545003365)

$12.99

$

In Stock, only 4 left!

0

27

Poulan 537419601

Knob P25

$6.49

$

In Stock, Qty 20+

0

27

Poulan 545209101

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

27

Poulan 545167703

Decal-Upper Shaft

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
