PP 258 TP - Poulan Pole Saw, Type 2 (2008-12) Shaft - Type 2 Parts Diagram

Pole Saw, Type 2

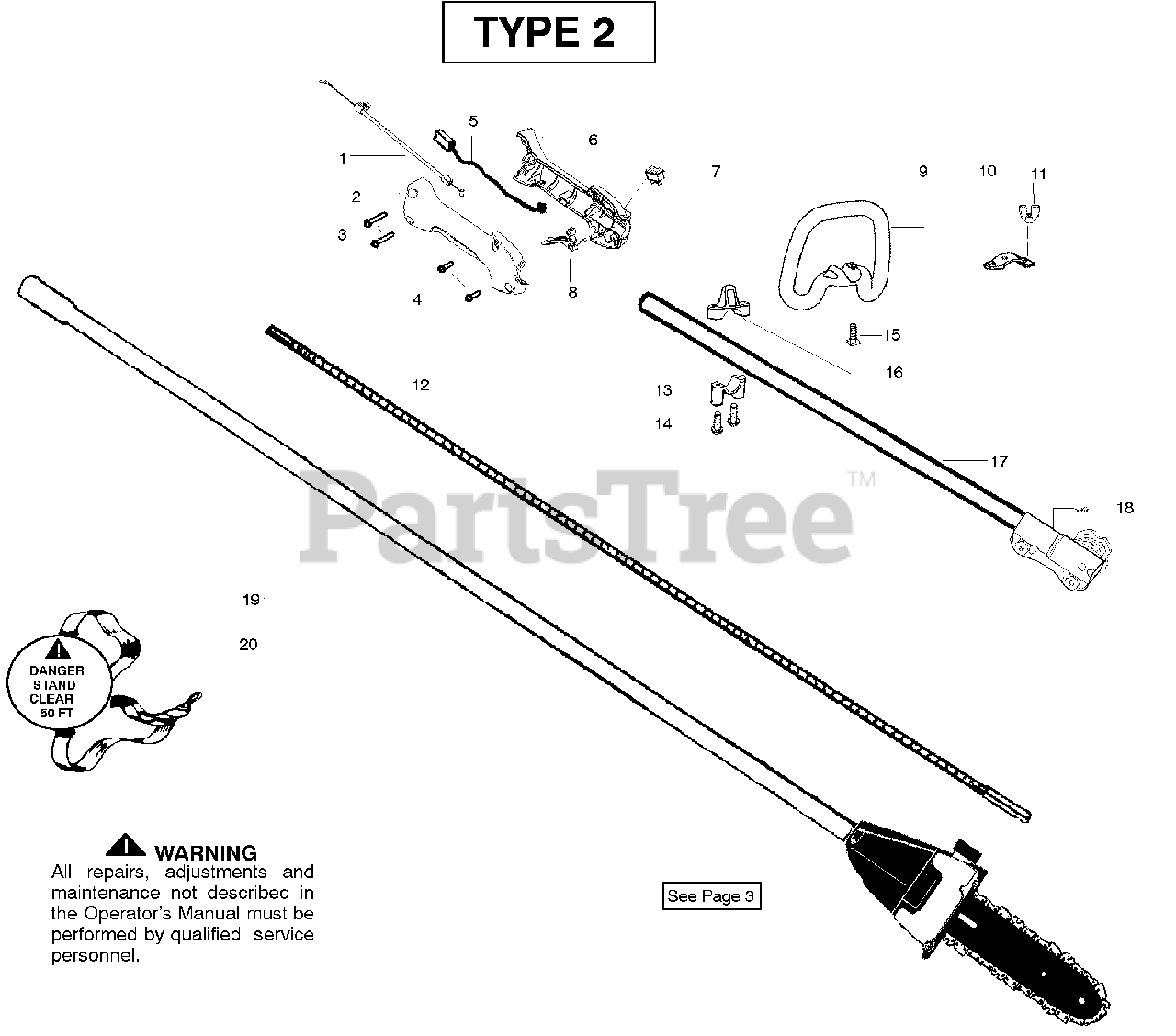

Shaft - Type 2 Parts Diagram

  • Title

2

Electrolux/AYP 530059759

Assy-Throttle Cable

$17.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530057541

Hsg.-Throttle right

$12.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530016406

Screw.

$6.49

$

In Stock, only 1 left!

0

4

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

5

Electrolux/AYP 530054183

Assy-Wire

$8.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 530059760

Hsg. - Throttle left

$9.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 545030601

Kit-Switch
(Superseded to 545049301)

$9.99

$

In Stock, Qty 17

0

8

Electrolux/AYP 545077601

Trigger
(Superseded to 530049107)

$4.99

$

In Stock, Qty 16

0

9

Electrolux/AYP 530059101

Assy-Handle

Note: (Incl. 10,11,15)

$9.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530059185

Clamp-Handle

$6.49

$

In Stock, only 2 left!

0

11

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

12

Electrolux/AYP 530056570

Flex-Lower

$24.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530057987

Clamp-Lower

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530015940

Screw

$6.49

$

In Stock, Qty 9

0

15

Electrolux/AYP 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 530057986

Clamp-Upper

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 530071936

Kit-Upper Shaft
(Superseded to 575260201)

Note: (Incl. 18, flex)

$44.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 545008090

Assy-Driveshaft

$48.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530094408

Assy-Shoulder Strap
(Superseded to 530094417)

$

$

Not available

20

Electrolux/AYP 545177332

Manual

Note: Not Shown

$

$

Not available

20

Electrolux/AYP 530150031

Att. - Hanger (90 deg)

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

20

Electrolux/AYP 545167703

Decal-Upper Shaft

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 545003066

Decal-Warning pruner

Note: Not Shown

$

$

Not available
