PP 2822 (966513101) - Poulan Pro Hedge Trimmer (2011-03) ENGINE Parts Diagram

Hedge Trimmer

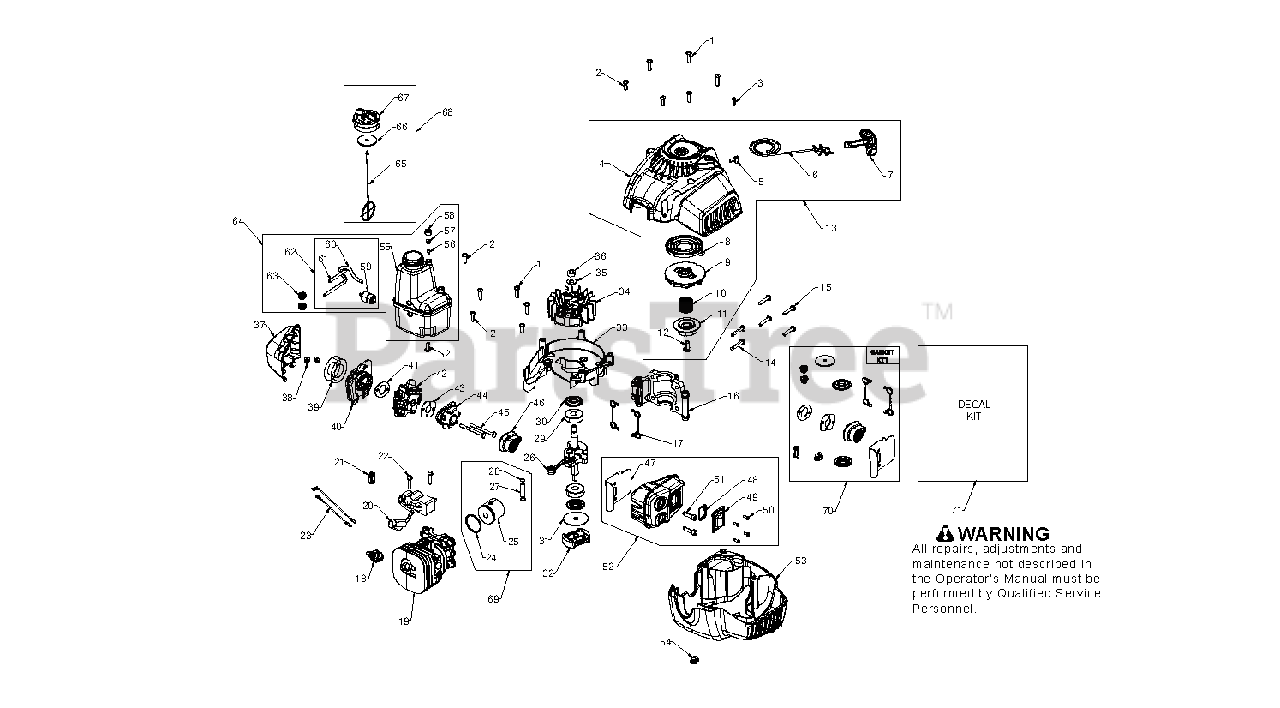

ENGINE Parts Diagram

  • Title

1

Poulan 574673101

SCREW

$4.99

$

Usually ships in 3-10 days

0

2

Poulan 574673201

SCREW

$6.49

$

In Stock, Qty 7

0

3

Poulan 576658201

SCREW

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 574673701

ENGINE HOUSING TOP

$14.99

$

Usually ships in 3-10 days

0

5

Poulan 574605601

EYELET, STARTER ROPE

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 530021167

ROPE STARTER
(Superseded to 545081817)

$8.99

$

In Stock, Qty 8

0

7

Poulan 574673501

STARTER HANDLE

$4.99

$

In Stock, only 1 left!

0

8

Poulan 530042095

SPRING STARTER
(Superseded to 545008013)

$6.49

$

In Stock, Qty 6

0

9

Poulan 576936001

STARTER PULLEY

$4.99

$

In Stock, only 3 left!

0

10

Poulan 545116901

DECAL, WARNING

$

$

Not available

11

Poulan 576935801

STARTER HUB

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 545112801

SCREW

$4.99

$

In Stock, only 2 left!

0

13

Poulan 574673401

STARTER HOUSING ASSY

Note: . 4 THRU 12

$31.99

$

In Stock, only 1 left!

0

14

Poulan 574672101

SCREW

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 530016897

$

$

Not available

16

Poulan 576936101

BEARING CAP

$8.99

$

In Stock, only 1 left!

0

17

Poulan 545083301

SEAL CYLINDER

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 530030179

PLUG SPARK (RCJ6-Y)

$7.49

$

In Stock, only 2 left!

0

19

Poulan 577587201

CYLINDER KIT & F'WHEEL SCROLL

Note: . 33

$72.99

$

In Stock, only 1 left!

0

20

Poulan 575504201

IGNITION MODULE

$

$

Not available

21

Poulan 574590901

GROMMET

$2.49

$

Usually ships in 3-10 days

0

22

Poulan 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

23

Poulan 575675001

WIRE COIL

$4.99

$

Usually ships in 3-10 days

0

24

Poulan 530019283

RING PISTON
(Superseded to 575227901)

$7.49

$

In Stock, Qty 17

0

25

Poulan 575504301

PISTON

$9.99

$

In Stock, only 1 left!

0

26

Poulan 577587101

CRANKSHAFT ASSY
(Superseded to 574671801)

$54.99

$

Usually ships in 3-10 days

0

27

Poulan 530032159

PISTON PIN

$4.99

$

In Stock, only 1 left!

0

28

Poulan 530015162

WRIST PIN RET.

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 545013401

Radial Ball Bearing, 6201

$10.99

$

In Stock, Qty 5

0

30

Poulan 545004301

CRANKSHAFT SEAL

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 574674401

GASKET, CLUTCH

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 577587801

CLUTCH KIT

Note: . 31

$9.99

$

Usually ships in 3-10 days

0

33

Poulan 577587201

CYLINDER KIT & F'WHEEL SCROLL

Note: . 19

$72.99

$

In Stock, only 1 left!

0

34

Poulan 576423301

FLYWHEEL ASSY

$24.99

$

In Stock, only 3 left!

0

35

Poulan 530016828

$

$

Not available

36

Poulan 530016134

NUT-FLYWHEEL

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 574672301

AIR FILTER COVER

$6.49

$

In Stock, Qty 5

0

38

Poulan 530016101

NUT

$6.49

$

In Stock, Qty 8

0

39

Poulan 574672401

FOAM

$6.49

$

In Stock, Qty 11

0

40

Poulan 574372601

$

$

Not available

41

Poulan 545082801

GASKET AIRBOX

$4.99

$

Usually ships in 3-10 days

0

42

Poulan 577587901

CARBURETOR KIT

Note: . 41 43

$53.99

$

Usually ships in 3-10 days

0

43

Poulan 545141501

GASKET CARB

$4.99

$

In Stock, only 2 left!

0

44

Poulan 574672901

CARB PLATE
(Superseded to 574672902)

$

$

Not available

45

Poulan 530016187

SCREW

$6.49

$

In Stock, only 4 left!

0

46

Poulan 545132501

Carburetor Boot

$17.99

$

In Stock, only 4 left!

0

47

Poulan 545119101

GASKET

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 545118901

SPARK ARRESTOR SCREEN

$2.49

$

Usually ships in 3-10 days

0

49

Poulan 574673901

HOOD EXHAUST OUTLET

$3.99

$

Usually ships in 3-10 days

0

50

Poulan 530016241

$

$

Not available

51

Poulan 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 12

0

52

Poulan 574673801

MUFFLER ASSY

Note: . 47 THRU 51

$18.99

$

In Stock, only 2 left!

0

53

Poulan 574674201

ENGINE HOUSING, LOWER

$12.99

$

Usually ships in 3-10 days

0

54

Poulan 576200201

GROMMET

$4.99

$

In Stock, Qty 5

0

55

Poulan 574677201

FUEL TANK

$

$

Not available

56

Poulan 574607101

VALVE

$

$

Not available

57

Poulan 574678301

FOAM

$

$

Not available

58

Poulan 574678401

VALVE COVER

$

$

Not available

59

Poulan 574607601

FUEL FILTER

$7.99

$

In Stock, only 2 left!

0

60

Poulan 574678101

FUEL TUBE INLET
(Superseded to 577587701)

$7.99

$

In Stock, only 2 left!

0

61

Poulan 574678201

FUEL TUBE OUTLET

$7.99

$

In Stock, only 2 left!

0

62

Poulan 577587701

FUEL LINE KIT

Note: . 59 60 61

$7.99

$

In Stock, only 2 left!

0

63

Poulan 574678001

FUEL TUBE GROMMET

$6.49

$

In Stock, Qty 10

0

64

Poulan 577588001

FUEL TANK ASSY

Note: . 55 THRU 63 68

$

$

Not available

65

Poulan 574677901

RETAINER

$2.49

$

Usually ships in 3-10 days

0

66

Poulan 574677801

GASKET

$4.99

$

Usually ships in 3-10 days

0

67

Poulan 574677501

FUEL CAP

$2.49

$

Usually ships in 3-10 days

0

68

Poulan 574607701

FUEL CAP ASSY

Note: . 65 66 67

$4.99

$

In Stock, Qty 5

0

69

Poulan 577285101

PISTON KIT

Note: . 24 25 27 28

$14.99

$

Usually ships in 3-10 days

0

70

Poulan 577285201

GASKET KIT

$21.99

$

Usually ships in 3-10 days

0

71

Poulan 577588101

DECAL KIT

$4.99

$

Usually ships in 3-10 days

0
