PP 291E30 (961980030-01) - Poulan Pro Snow Thrower (2010-03) Auger Housing / Impeller Assembly Parts Diagram

Snow Thrower

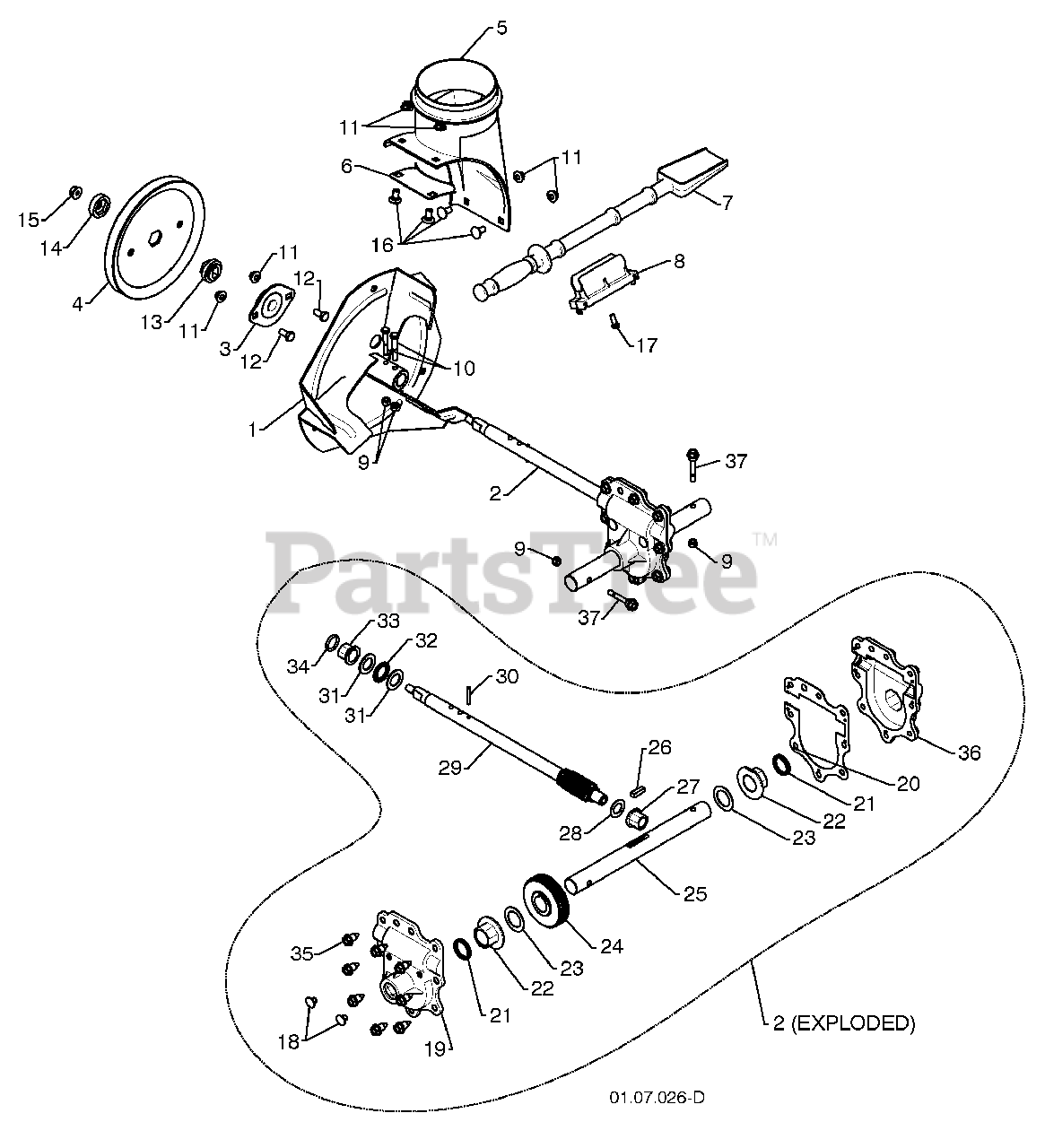

Auger Housing / Impeller Assembly Parts Diagram

  • Title

1

Electrolux/AYP 175321X431

IMPELLER
(Superseded to 532435775)

$78.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 427148

GEARBOX ASSEMBLY

$

$

Not available

3

Electrolux/AYP 188909

BEARING
(Superseded to 532188909)

$24.99

$

In Stock, Qty 6

0

4

Electrolux/AYP 427146

IMPELLER PULLEY
(Superseded to 532427146)

$31.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 175322

DISCHARGE BASE
(Superseded to 532442438)

$11.99

$

In Stock, Qty 18

0

6

Electrolux/AYP 178675X008

CORNER BRACKET
(Superseded to 178675X431)

$2.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 192199

CLEAN OUT TOOL
(Superseded to 532192199)

$34.99

$

In Stock, only 2 left!

0

8

Electrolux/AYP 405400

TOOL CLIP
(Superseded to 532405400)

$6.49

$

In Stock, only 2 left!

0

9

Electrolux/AYP 73800400

NUT 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 74780426

SCREW 1/4-20 X .625
(Superseded to 874780426)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 427942

NUT 5/16-18
(Superseded to 532427942)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 163183

SCREW 5/16-18 X .625
(Superseded to 532163183)

$4.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 427145

IMPELLER HUB
(Superseded to 532427145)

$4.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 427154

IMPELLER SLEEVE
(Superseded to 532427154)

$4.99

$

In Stock, only 1 left!

0

15

Murray 73900600

NUT 3/8-16

$

$

Not available

16

Electrolux/AYP 180355

CARRIAGE BOLT
(Superseded to 532180355)

$7.49

$

In Stock, Qty 13

0

17

Electrolux/AYP 194189

SCREW 13-16 X .625
(Superseded to 532194189)

$7.49

$

In Stock, Qty 20+

0

18

Electrolux/AYP 407760

PLUG

$

$

Not available

19

Electrolux/AYP 427302

GEARBOX COVER RH
(Superseded to 532427302)

$42.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 427345

GASKET
(Superseded to 532427345)

$6.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 407770

SEAL

$

$

Not available

22

Electrolux/AYP 407762

BEARING
(Superseded to 532174701)

$

$

Not available

23

Electrolux/AYP 174697

THRUST WASHER 1.00

$2.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 407763

WORM GEAR

$

$

Not available

25

Electrolux/AYP 407764

AUGER SHAFT

$

$

Not available

26

Electrolux/AYP 189282

SQUARE KEY
(Superseded to 532189282)

$7.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 407758

BEARING

$

$

Not available

28

Electrolux/AYP 174683

THRUST WASHER
(Superseded to 532174683)

$4.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 427147

IMPELLER SHAFT
(Superseded to 532427147)

$121.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 7836M

ROLL PIN

$

$

Not available

31

Electrolux/AYP 174681

THRUST WASHER
(Superseded to 532174681)

$14.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 174684

THRUST BEARING
(Superseded to 532174684)

$9.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 407769

BEARING

$2.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 407768

O-RING
(Superseded to 532407768)

$6.49

$

In Stock, only 1 left!

0

35

Electrolux/AYP 407767

SCREW 5/16-18 X .750

$

$

Not available

36

Electrolux/AYP 427317

GEARBOX COVER LH
(Superseded to 532427317)

$42.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 192090

SHEAR BOLT
(Superseded to 588077502)

$3.99

$

In Stock, Qty 20+

0
