PP 291E30 (961980030-01) - Poulan Pro Snow Thrower (2010-03) Drive Parts Diagram

Snow Thrower

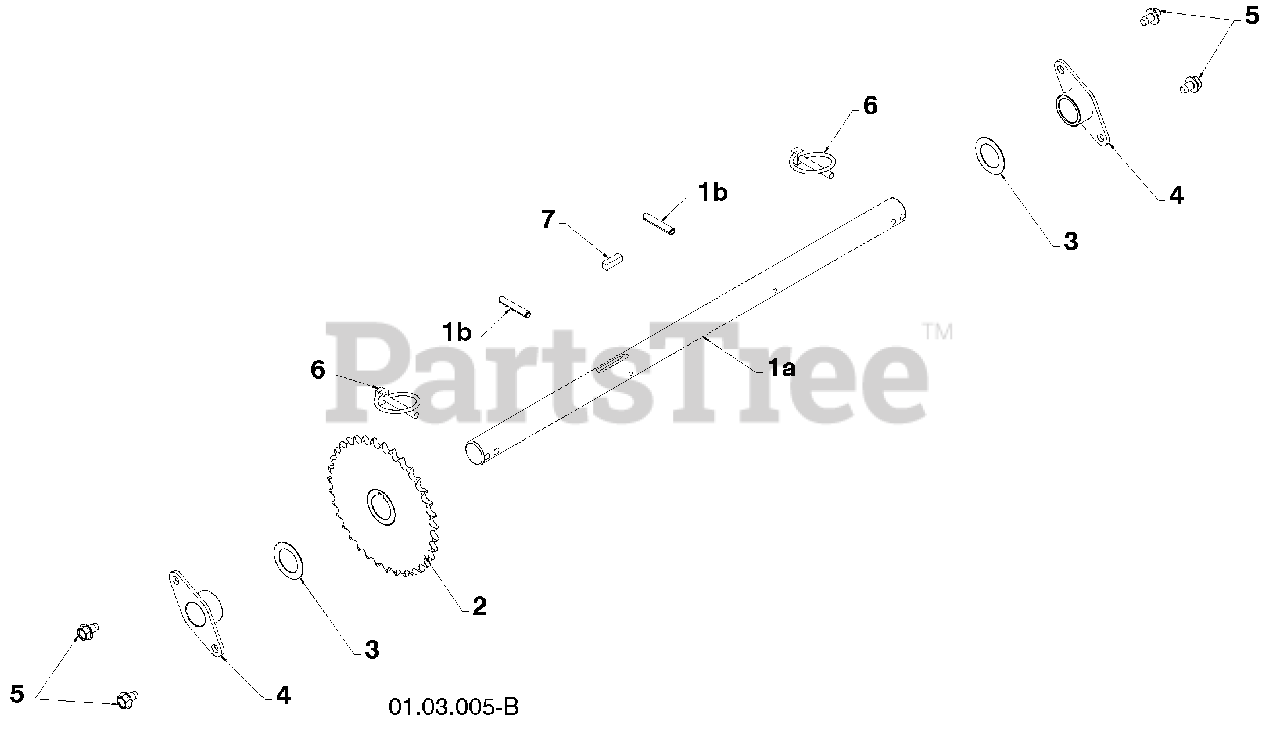

Drive Parts Diagram

  • Title

1

Electrolux/AYP 188226

(assy of 1a,1b) AXLE ASSEMBLY
(Superseded to 532188226)

$48.99

$

Usually ships in 3-10 days

0

1a

Electrolux/AYP 179352

AXLE SHAFT
(Superseded to 532179352)

$60.99

$

Usually ships in 3-10 days

0

1b

Electrolux/AYP 9465M1

ROLL PIN 3/16
(Superseded to 532184206)

$4.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 402691

SPROCKET
(Superseded to 532402691)

$60.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 174697

THRUST WASHER

$2.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 179830

BEARING
(Superseded to 532179830)

$24.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 17490508

BOLT 5/16-18 X .500
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 155443

CLIK PIN
(Superseded to 532155443)

$8.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 189282

SQUARE KEY
(Superseded to 532189282)

$7.49

$

In Stock, only 1 left!

0
