PP 30 (966805501) - Poulan Pro String Trimmer (2011-10) ENGINE Parts Diagram

String Trimmer

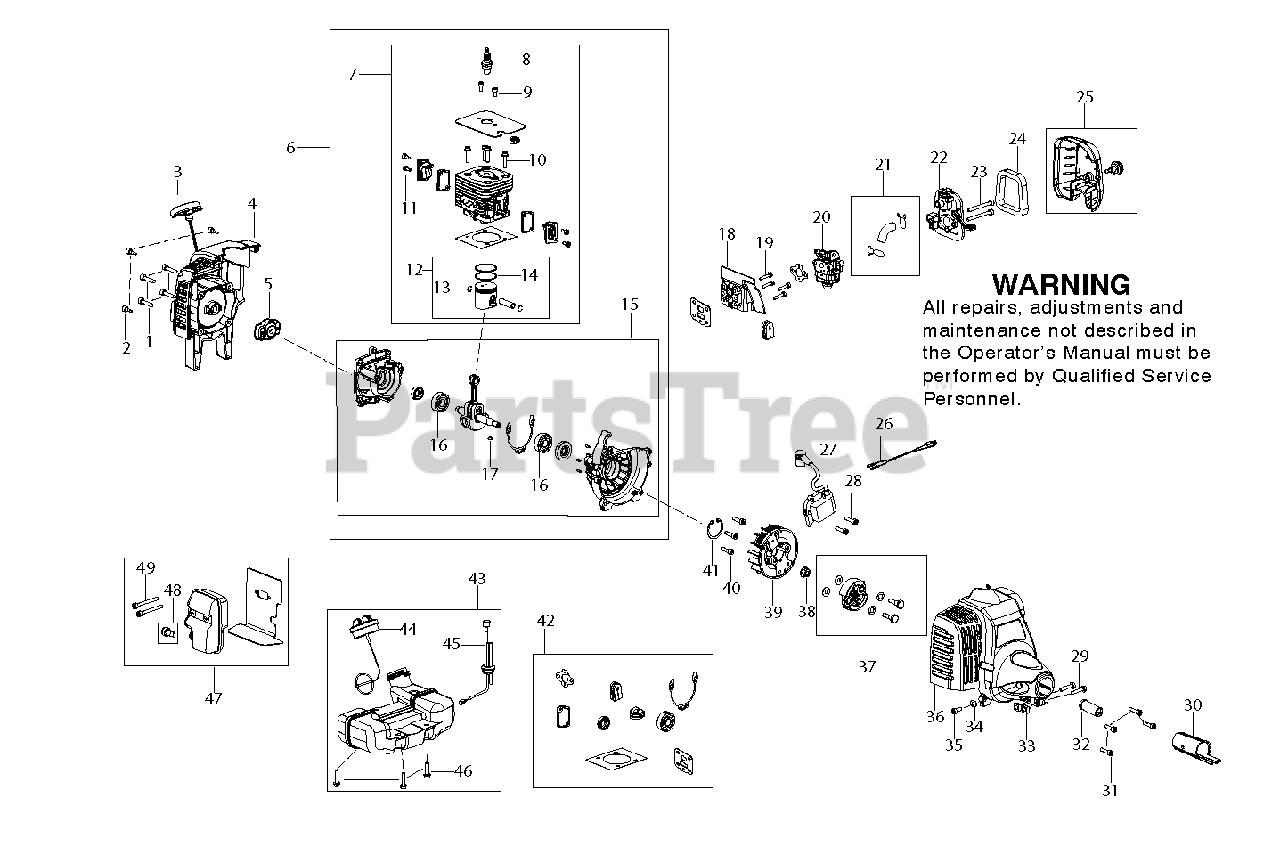

ENGINE Parts Diagram

  • Title

1

Poulan 575532001

SCREW KIT 4 PACK

$4.99

$

In Stock, Qty 20+

0

2

Poulan 576028501

SCREW

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 576128601

ROPE & HANDLE KIT

$4.99

$

Usually ships in 3-10 days

0

4

Poulan 575390801

KIT
(Superseded to 575720701)

Note: 3

$31.99

$

Usually ships in 3-10 days

0

5

Poulan 574590001

PAWL ASSY

$

$

Not available

6

Poulan 575390601

SHORT BLOCK KIT ASSY LT30

Note: 7 15

$

$

Not available

7

Poulan 575803701

CYLINDER & PISTON KIT

Note: 8 9 10 11 12

$

$

Not available

8

Poulan 576127301

Spark Plug, RZ7C
(Superseded to 574587001)

$6.99

$

In Stock, Qty 20+

0

9

Poulan 575532501

SCREW (4-PACK)

$2.23

$

Usually ships in 3-10 days

0

10

Poulan 575532401

SCREW (4-PACK)

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 575532201

SCREW 4 PACK

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 575403201

PISTON RING KIT

Note: 13 14

$

$

Not available

13

Poulan 574588801

CIRCLIP

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 574588701

PISTON RING

$

$

Not available

15

Poulan 575803801

C'CASE & C'SHAFT KIT

$

$

Not available

16

Poulan 575531601

BEARING (2-PACK)

$3.99

$

In Stock, Qty 6

0

17

Poulan 574589301

KEY 6221-830301

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 576128001

ADAPTER

$4.99

$

In Stock, only 2 left!

0

19

Poulan 575531801

SCREW (4-PACK)

$2.49

$

Usually ships in 3-10 days

0

20

Poulan 576128801

CARBURETOR

$34.99

$

In Stock, Qty 5

0

21

Poulan 575403301

INTAKE TUBE KIT

$4.99

$

In Stock, only 3 left!

0

22

Poulan 575391001

AIR BOX BASE ASSY

$6.49

$

In Stock, Qty 6

0

23

Poulan 576127901

SCREW

$4.99

$

Usually ships in 3-10 days

0

24

Poulan 574590201

FILTER

$4.99

$

In Stock, Qty 14

0

25

Poulan 575390901

AIR BOX COVER ASSY

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 574589701

COIL WIRE

$2.49

$

In Stock, only 3 left!

0

27

Poulan 576127401

IGNITION MODULE
(Superseded to 575535201)

$34.99

$

In Stock, only 1 left!

0

28

Poulan 574589601

SCREW

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 576128301

SCREW

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 575349001

INSERT

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 576128401

SCREW

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 575348901

GUIDE

$4.99

$

Usually ships in 3-10 days

0

33

Poulan 576128201

NUT

$4.99

$

Usually ships in 3-10 days

0

34

Poulan 530016285

WASHER

$

$

Not available

35

Poulan 575962301

SCREW

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 575390701

FAN HSG ASSY KIT

$

$

Not available

37

Poulan 575391201

CLUTCH ASSY

$12.99

$

Usually ships in 3-10 days

0

38

Poulan 574634601

NUT

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 576128101

FLYWHEEL
(Superseded to 575535101)

$12.99

$

Usually ships in 3-10 days

0

40

Poulan 574589601

SCREW

$2.49

$

Usually ships in 3-10 days

0

41

Poulan 574592201

C-RING

$2.49

$

Usually ships in 3-10 days

0

42

Poulan 575403101

GASKET KIT

$6.49

$

Usually ships in 3-10 days

0

43

Poulan 575803901

FUEL TANK ASSY

Note: 44 45 46

$

$

Not available

44

Poulan 576128901

ASSEMBLY
(Superseded to 574607701)

$4.99

$

In Stock, Qty 5

0

45

Poulan 575130601

KIT FUEL LINE ASSEMBLY

$

$

Not available

46

Poulan 574592501

SCREW

$2.23

$

Usually ships in 3-10 days

0

47

Poulan 575391101

MUFFLER ASSY

Note: 48 49

$15.99

$

Usually ships in 3-10 days

0

48

Poulan 576128501

KIT
(Superseded to 575391101)

$15.99

$

Usually ships in 3-10 days

0

49

Poulan 575532301

SCREW (2-PACK)

$3.99

$

Usually ships in 3-10 days

0
