PP 305 - Poulan Pro Chainsaw INTERNAL POWER UNIT Parts Diagram

Chainsaw

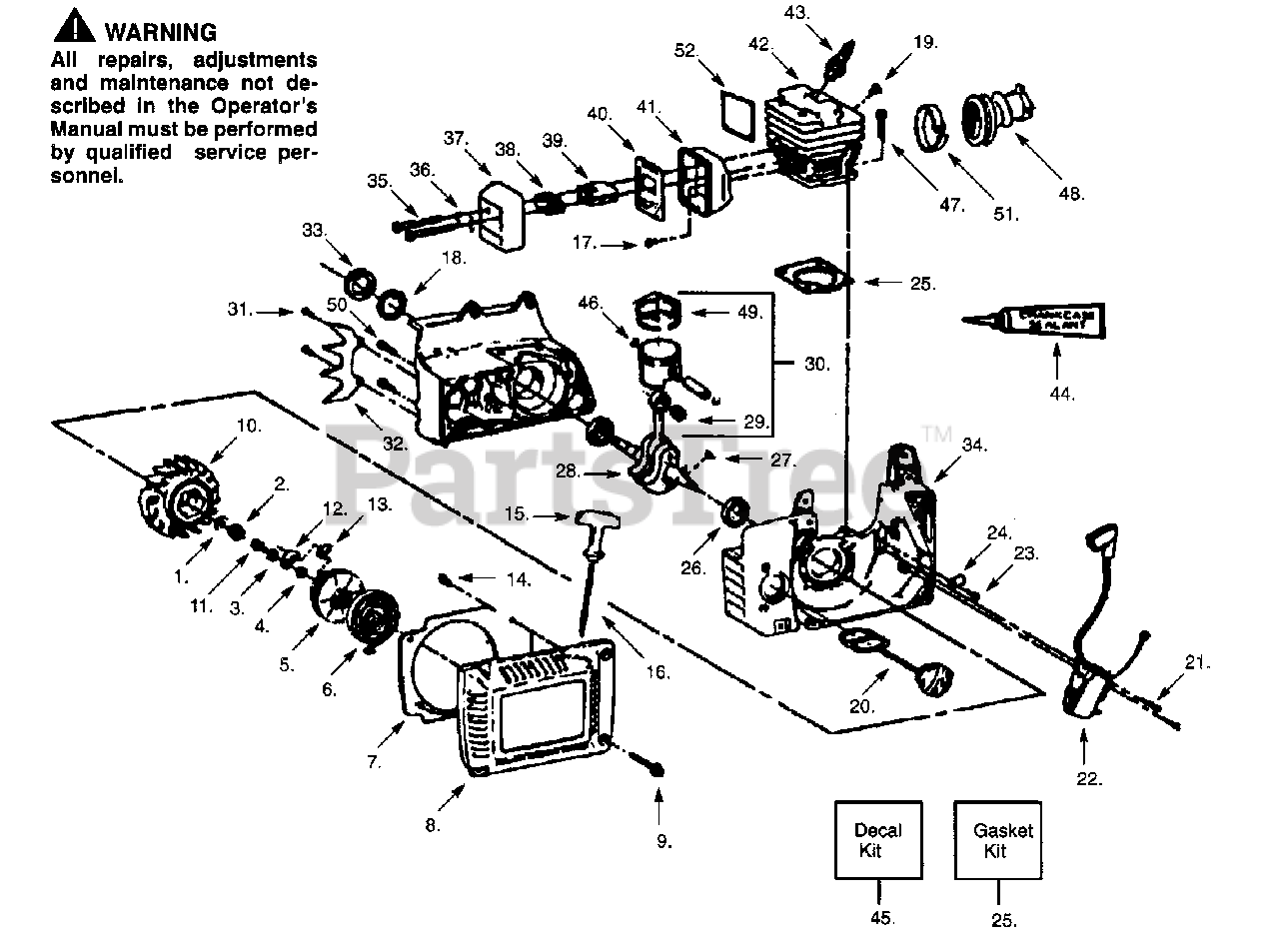

INTERNAL POWER UNIT Parts Diagram

  • Title

1

Poulan 530039127

Flywheel

$

$

Not available

2

Poulan 530001733

Nut

$

$

Not available

3

Poulan 530015254

Wave Washer

$

$

Not available

4

Poulan 530027163

Retainer

$

$

Not available

5

Poulan 530027170

Starter Pulley

$

$

Not available

6

Poulan 530042067

Starter Spring
(Superseded to 545008009)

$

$

Not available

7

Poulan 530027096

Baffle Plate

$

$

Not available

8

Poulan 530010975

Fan Housing

$

$

Not available

9

Poulan 530015709

Screw
(Superseded to 530015708)

$

$

Not available

10

Poulan 530015441

Washer

$

$

Not available

11

Poulan 530015713

Screw

$

$

Not available

12

Poulan 530027765

Starter Cam

$

$

Not available

13

Poulan 530027162

Starter Dog

$4.99

$

Usually ships in 3-10 days

0

14

Poulan 530015241

Screw
(Superseded to 545227101)

$3.49

$

In Stock, Qty 20+

0

15

Poulan 530027569

Starter Handle

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 530069233

Rope Kit

$5.99

$

In Stock, only 2 left!

0

17

Poulan 530015720

Bolt

$

$

Not available

18

Poulan 530001516

Snap Ring

$

$

Not available

19

Poulan 530015696

Clip

$

$

Not available

20

Poulan 530010846

Oil Cap Ass'y. (Inc. O Ring)
(Superseded to 530057236)

$

$

Not available

21

Poulan 530015708

Screw
(Superseded to 530015425)

$

$

Not available

22

Poulan 530039128

Ignition Module

$

$

Not available

23

Poulan 530015306

Screw

$

$

Not available

24

Poulan 530027264

Clamp

$

$

Not available

25

Poulan 530069487

Gasket Set

$

$

Not available

26

Poulan 530032093

Crankshaft Bearing

$

$

Not available

27

Poulan 530002595

Flywheel Key

$6.99

$

In Stock, Qty 7

0

28

Poulan 530027143

Crankshaft/Rod Ass'y.

$

$

Not available

29

Poulan 530032111

Piston Pin Bearing

$

$

Not available

30

Poulan 530010976

Model 285

$

$

Not available

30

Poulan 530010862

Model 305

$

$

Not available

30

Poulan 530010989

Model 335

$

$

Not available

31

Poulan 530015710

Screw

$

$

Not available

32

Poulan 530027184

Spur

$

$

Not available

33

Poulan 530019146

Crankshaft Seal

$4.99

$

In Stock, Qty 20+

0

34

Poulan 530014719

Crankcase Assy

Note: (Inc.20-22,32,33,36,37, #'s 20-22,32,33,36,37 of "HANDLE, CHAIN")

$

$

Not available

35

Poulan 530015718

Screw

$

$

Not available

36

Poulan 530015149

Washer

$3.49

$

In Stock, only 3 left!

0

37

Poulan 530028645

Muffler Cover

$

$

Not available

38

Poulan 530027095

Spark Arrestor Screen

$3.49

$

In Stock, only 1 left!

0

39

Poulan 530028647

Muffler Diffuser

$5.99

$

In Stock, only 1 left!

0

40

Poulan 530028646

Muffler Baffle Plate

$7.99

$

Usually ships in 3-10 days

0

41

Poulan 530028644

Muffler Body

$

$

Not available

42

Poulan 530012223

Model 285

$

$

Not available

42

Poulan 530012153

Model 305

$

$

Not available

42

Poulan 530012197

Model 335

$

$

Not available

43

Poulan 530030034

Spark Plug (CJ-4)

$

$

Not available

44

Poulan 530030054

Sealant

$

$

Not available

45

Poulan 530069227

Decal Kit

$

$

Not available

46

Poulan 530015697

Retainer

$3.49

$

In Stock, only 2 left!

0

47

Poulan 530001624

Screw

$

$

Not available

48

Poulan 530027218

Carb. Adapter

$

$

Not available

49

Poulan 530027640

Model 285

$

$

Not available

49

Poulan 530027092

Model 305

$

$

Not available

49

Poulan 530027608

Model 335

$

$

Not available

50

Poulan 530015707

Screw

$4.99

$

In Stock, only 2 left!

0

51

Poulan 530027285

Clamp Ass'y.

$

$

Not available

52

Poulan 530027838

Deflector (Model 335 Only)

$

$

Not available

52

, Operator Manual

Note: Not Shown.

$

$

Not available

Poulan 530068802

Model 285 & 305

Note: Not Shown.

$

$

Not available

Poulan 530067186

Model 335

Note: Not Shown.

$

$

Not available

, Carton

Note: Not Shown.

$

$

Not available

Poulan 530061052

Model 285,305,335 16" & 335-18" Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available

Poulan 530061628

Model 285-20" Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available

Poulan 530061159

Model 305-18" & 20" Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available

Poulan 530061641

Model 335-20" Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available
