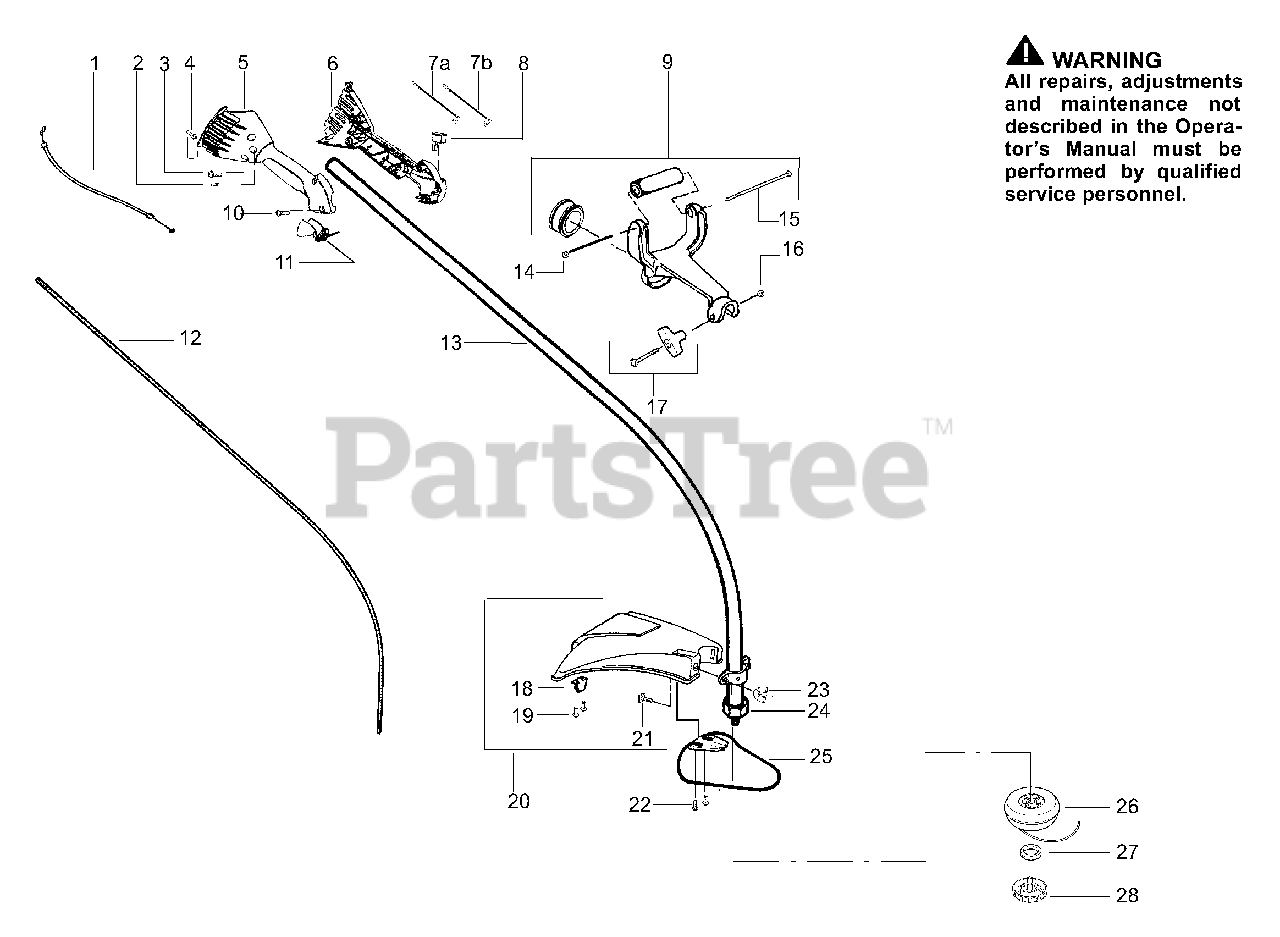

PP 31 - Poulan Pro String Trimmer Handle & Shaft Assembly Parts Diagram

String Trimmer

Handle & Shaft Assembly Parts Diagram

  • Title

1

Poulan 530054942

Assy-Throttle cable

$

$

Not available

2

Poulan 530015805

Screw-alignment
(Superseded to 530015886)

$3.49

$

In Stock, Qty 17

0

3

Poulan 530015886

Screw-10-24

$3.49

$

In Stock, Qty 17

0

4

Poulan 530015886

Screw-handle/fan hsg.

$3.49

$

In Stock, Qty 17

0

5

Poulan 530054837

Throttle Hsg.-Right

$

$

Not available

6

Poulan 530071553

Kit-Left Throttle Hsg.

$

$

Not available

7A

Poulan 530054943

Assy-Front wire

$

$

Not available

7B

Poulan 530055724

Assy-Front Wire (upper)

$

$

Not available

8

Poulan 530071356

Kit-Switch

$7.99

$

In Stock, Qty 12

0

9

Poulan 530010958

Assy-Antivibe Handle

$

$

Not available

10

Poulan 530015886

Screw

$3.49

$

In Stock, Qty 17

0

11

Poulan 530054940

Trigger-Throttle

$3.49

$

In Stock, only 3 left!

0

12

Poulan 530095964

Shaft-Flex

$

$

Not available

13

Poulan 530055371

Assy-Driveshaft

$

$

Not available

14

Poulan 530015785

Nut

$

$

Not available

15

Poulan 530015784

Bolt

$

$

Not available

16

Poulan 530015197

Nut-1/4-20"

$3.49

$

In Stock, only 3 left!

0

17

Poulan 530069252

Assy-"T" Handle
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

18

Poulan 530052285

Limiter-Line

$

$

Not available

19

Poulan 530015814

Screw

$3.49

$

In Stock, only 3 left!

0

20

Poulan 530071328

Kit -Shield Ass'y.

Note: (Incls. 18-19)

$

$

Not available

21

Poulan 530015820

Bolt

$4.99

$

In Stock, only 4 left!

0

22

Poulan 530016179

Screw-Wire Guard

$

$

Not available

23

Poulan 530016118

Wingnut
(Superseded to 530091373)

$2.49

$

In Stock, Qty 9

0

24

Poulan 530094543

Dustcup

$

$

Not available

25

Poulan 530054459

Assy-Wire Guard

$

$

Not available

26

Poulan 952711579

Assy-Wound Hub

Note: (Incl. 27)

$

$

Not available

27

Poulan 530403949

Guide-Line

$5.99

$

In Stock, only 2 left!

0

28

Poulan 530054222

Assy-Cap & Spring

$

$

Not available

Poulan 530088147

Operator Manual

Note: Not Shown

$

$

Not available

Poulan 530055350

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
