PP 325 - Poulan String Trimmer, Type 1 (2008-12) Shaft - Type 1 Parts Diagram

String Trimmer Type 1

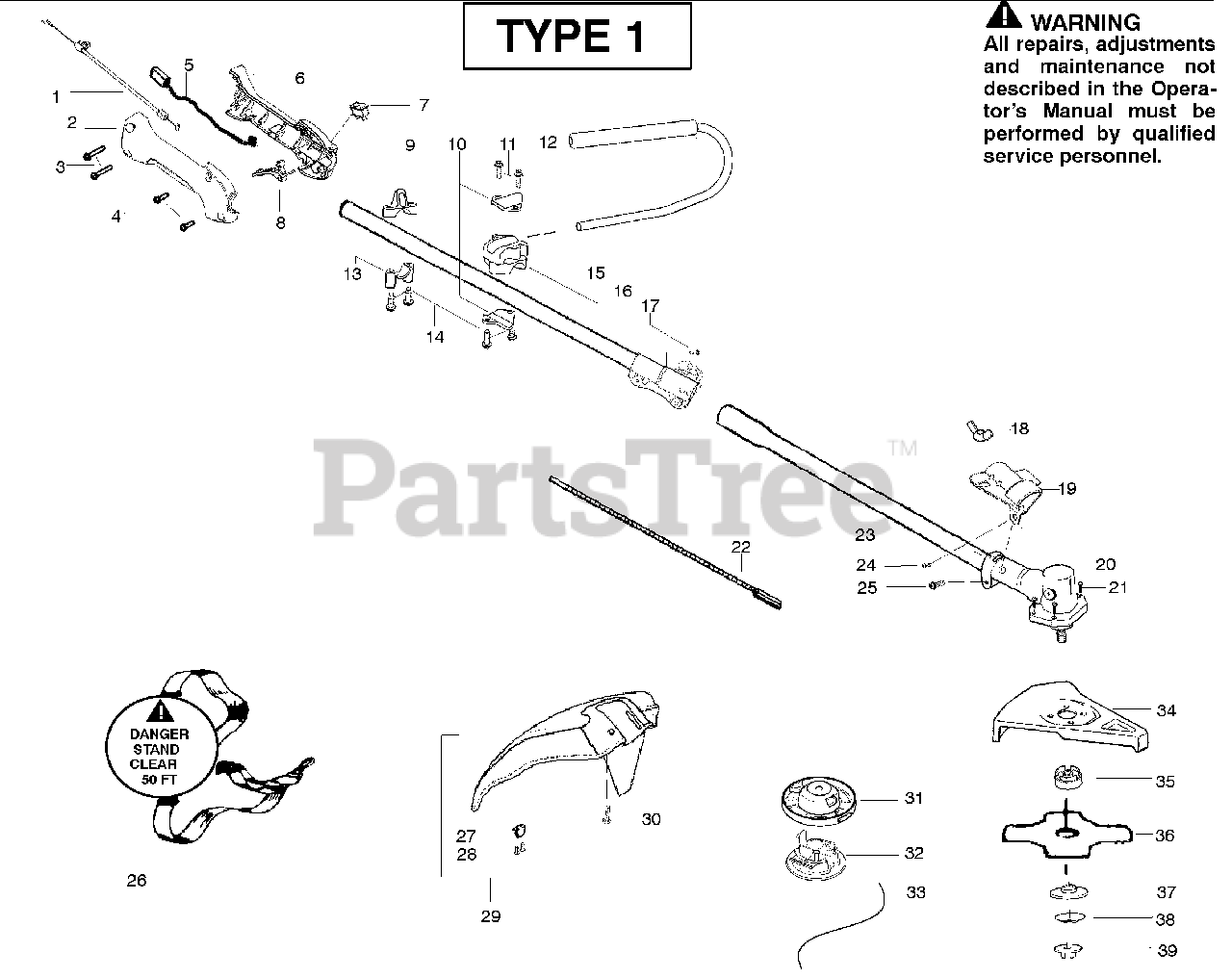

Shaft - Type 1 Parts Diagram

  • Title

1

Electrolux/AYP 530059759

Assy-Throttle Cable

$17.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530057541

Hsg-Throttle-right

$12.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530016406

Screw

$6.49

$

In Stock, only 1 left!

0

4

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

5

Electrolux/AYP 530054183

Assy-Wire

$8.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 530059760

Hsg-Throttle-left

$9.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 545077601

Trigger-Throttle
(Superseded to 530049107)

$4.99

$

In Stock, Qty 15

0

9

Electrolux/AYP 530057986

Clamp-Harness (upper)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530058563

Clamp-Bracket

$4.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 17

0

12

Electrolux/AYP 530071974

Assy-Handlebar

Note: (incl. grip,cap,decal)

$

$

Not available

13

Electrolux/AYP 530057987

Clamp-Harness (lower)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530015940

Screw

$6.49

$

In Stock, Qty 9

0

15

Electrolux/AYP 545024501

Clamp-Handlebar

$4.99

$

In Stock, only 4 left!

0

16

Electrolux/AYP 530071791

Kit-Upper Shaft
(Superseded to 575260201)

Note: (Incl. Flex and clamp)

$44.99

$

In Stock, only 2 left!

0

17

Electrolux/AYP 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

19

Electrolux/AYP 545150701

Bracket-Shield

$4.99

$

In Stock, only 3 left!

0

20

Electrolux/AYP 530096100

Gearbox

$78.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530016312

Screw

$6.49

$

In Stock, Qty 6

0

22

Electrolux/AYP 530096218

Shaft-Flex (lower)
(Superseded to 545173003)

$11.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 530071789

Assy-Lower Shaft

$27.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

26

Electrolux/AYP 530094408

Shoulder Strap
(Superseded to 530094417)

$

$

Not available

27

Electrolux/AYP 530052286

Limiter-Line

$

$

Not available

28

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

29

Electrolux/AYP 530071997

Kit-Shield Assy

Note: (incl. 27,28)

$27.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 545049401

Head-Fixed line
(Superseded to 545053902)

$37.99

$

In Stock, only 3 left!

0

32

Electrolux/AYP 545049501

Cap-Fixed Line

$9.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 952711635

Accy-Line (12 pcs)

$

$

Not available

34

Electrolux/AYP 530071383

Kit-Metal Shield

$14.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 530095815

Dust cup

$10.99

$

In Stock, Qty 7

0

36

Electrolux/AYP 952711584

Accy-Weed Blade

$

$

Not available

37

Electrolux/AYP 530095816

Washer

$10.99

$

In Stock, Qty 5

0

38

Electrolux/AYP 530016240

Washer-Belleville

$6.49

$

In Stock, Qty 5

0

39

Electrolux/AYP 530015793

Nut-Flange

$6.49

$

In Stock, Qty 10

0

39

Electrolux/AYP 545186784

Operator Manual

Note: Not Shown

$

$

Not available

39

Electrolux/AYP 545176003

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

39

Electrolux/AYP 530056335

Decal-Blade Direction

Note: Not Shown

$2.23

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 530031159

Wrench-Hex 5/2"

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 545167703

Decal-Upper Shaft Warning

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
