PP 330 - Poulan Pro Chainsaw, Type 1 Engine Type 1-2 Parts Diagram

Chainsaw, Type 1

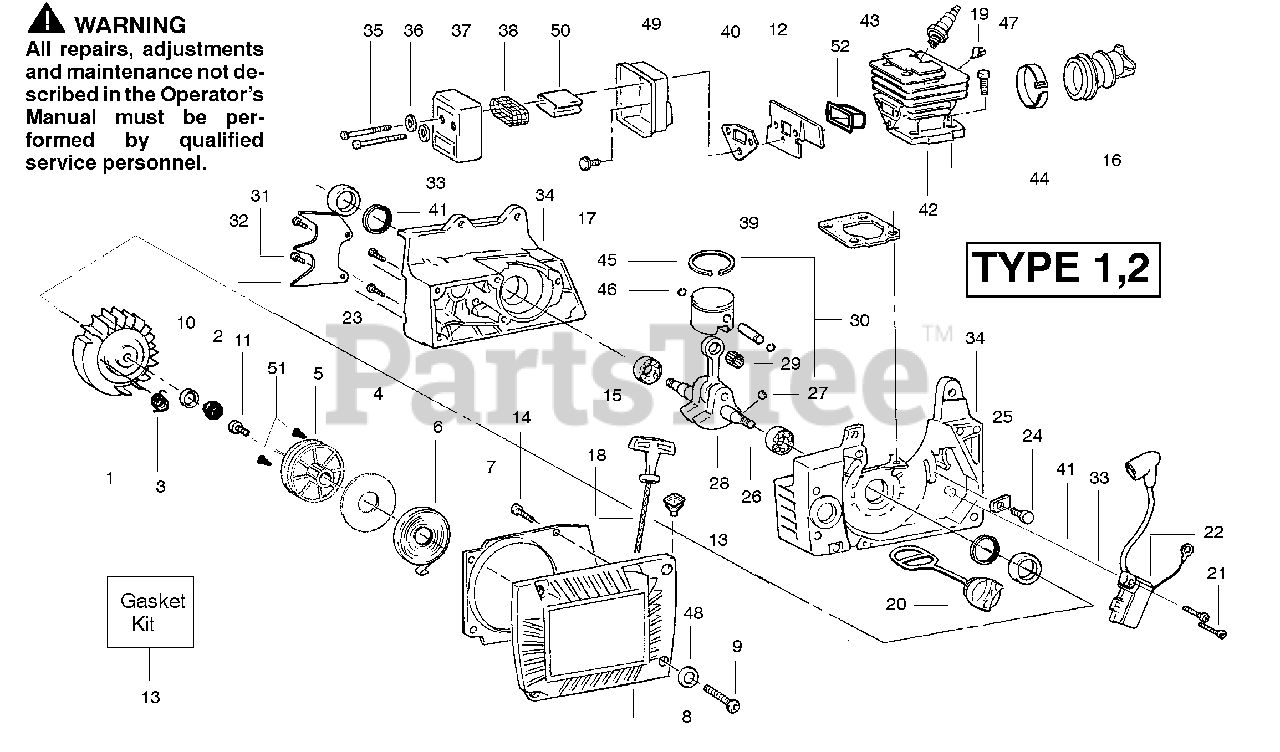

Engine Type 1-2 Parts Diagram

  • Title

1

Poulan 530069890

Flywheel Ass'y. Kit
(Superseded to 530054182)

$36.99

$

Usually ships in 3-10 days

0

2

Poulan 530049819

Nut-Flywheel

$

$

Not available

3

Poulan 530023817

Spring-Starter Dog

$3.49

$

In Stock, only 1 left!

0

4

Poulan 530016242

Washer

$

$

Not available

5

Poulan 530053728

Starter Pulley

$

$

Not available

6

Poulan 530042087

Starter Spring
(Superseded to 545008012)

$5.99

$

In Stock, only 4 left!

0

7

Poulan 530052435

Baffle Plate

$

$

Not available

8

Poulan 530049938

Fan Housing Ass'y.

$

$

Not available

9

Poulan 530015812

Screw

$

$

Not available

10

Poulan 530015441

Washer-Conical

$

$

Not available

11

Poulan 530015920

Screw

$3.49

$

In Stock, Qty 6

0

12

Poulan 530053595

Muffler Back Plate

$

$

Not available

13

Poulan 530069487

Kit - Gasket

Note: (incl. 39,40 pg.1 : 13 pg.2 : 2,3 pg.3)

$

$

Not available

14

Poulan 530015241

Screw
(Superseded to 545227101)

$3.49

$

In Stock, Qty 20+

0

15

Poulan 530049797

Starter Handle
(Superseded to 530056422)

$

$

Not available

16

Poulan 530030202

Boot-Intake

$

$

Not available

17

Poulan 530016291

Screw

$

$

Not available

18

Poulan 530069919

Rope Kit

$4.99

$

In Stock, only 3 left!

0

19

Poulan 530015696

Clip

$

$

Not available

20

Poulan 530010846

Oil Cap Ass'y.
(Superseded to 530057236)

Note: (Incl. "O" Ring)

$

$

Not available

21

Poulan 530015708

Screw
(Superseded to 530015425)

$

$

Not available

22

Poulan 530039128

Ignition Module

$

$

Not available

23

Poulan 530015707

Screw

$4.99

$

In Stock, only 2 left!

0

24

Poulan 530015306

Screw

$

$

Not available

25

Poulan 530027264

Clamp

$

$

Not available

26

Poulan 530032093

Crankshaft Bearing

$

$

Not available

27

Poulan 530002595

Flywheel Key

$6.99

$

In Stock, Qty 7

0

28

Poulan 530027143

Crankshaft & Rod Ass'y.

$

$

Not available

29

Poulan 530032111

Piston Pin Bearing

$

$

Not available

30

Poulan 530071321

Piston Kit

Note: (Incl. 29, 45 & 46)

$

$

Not available

31

Poulan 530015875

Screw

$3.49

$

In Stock, only 3 left!

0

32

Poulan 952027846

Spur

$

$

Not available

33

Poulan 530019146

Crankshaft Seal

$4.99

$

In Stock, Qty 20+

0

34

Poulan 530069893

Crankcase Ass'y.

$

$

Not available

35

Poulan 530016259

Screw

$4.99

$

In Stock, Qty 6

0

36

Poulan 530015722

Washer

$7.99

$

In Stock, only 3 left!

0

37

Poulan 530053465

Muffler Cover

$

$

Not available

38

Poulan 530030205

Spark Arrestor Screen

$

$

Not available

39

Poulan 530069487

Gasket Kit

$

$

Not available

40

Poulan 530069487

Muffler Gasket

$

$

Not available

41

Poulan 530001516

Snap Ring

$

$

Not available

42

Poulan 530403749

Cylinder Ass'y.

$

$

Not available

43

Poulan 952030164

Spark Plug (RCJ-6Y)
(Superseded to 952030249)

$4.49

$

In Stock, Qty 20+

0

44

Poulan 530027285

Clamp Ass'y.

$

$

Not available

45

Poulan 530030176

Piston Ring

$

$

Not available

46

Poulan 530015697

Retainer

$3.49

$

In Stock, only 2 left!

0

47

Poulan 530001624

Screw

$

$

Not available

48

Poulan 530015629

Washer

$

$

Not available

49

Poulan 530053596

Muffler Body

$17.99

$

Usually ships in 3-10 days

0

50

Poulan 530049362

Muffler Diffuser

$

$

Not available

51

Poulan 530016080

Screw

$3.49

$

In Stock, only 4 left!

0

52

Poulan 530053710

Exh Port Insulatora

$9.49

$

Usually ships in 3-10 days

0

52

Poulan 545123577

Operator Manual

Note: Not Shown

$

$

Not available

52

Poulan 530047839

Warning Decal

Note: Not Shown

$

$

Not available

52

Poulan 530047941

Kickback Warning Decal

Note: Not Shown

$

$

Not available
