PP 331 - Poulan Pro String Trimmer Engine Assembly Parts Diagram

String Trimmer

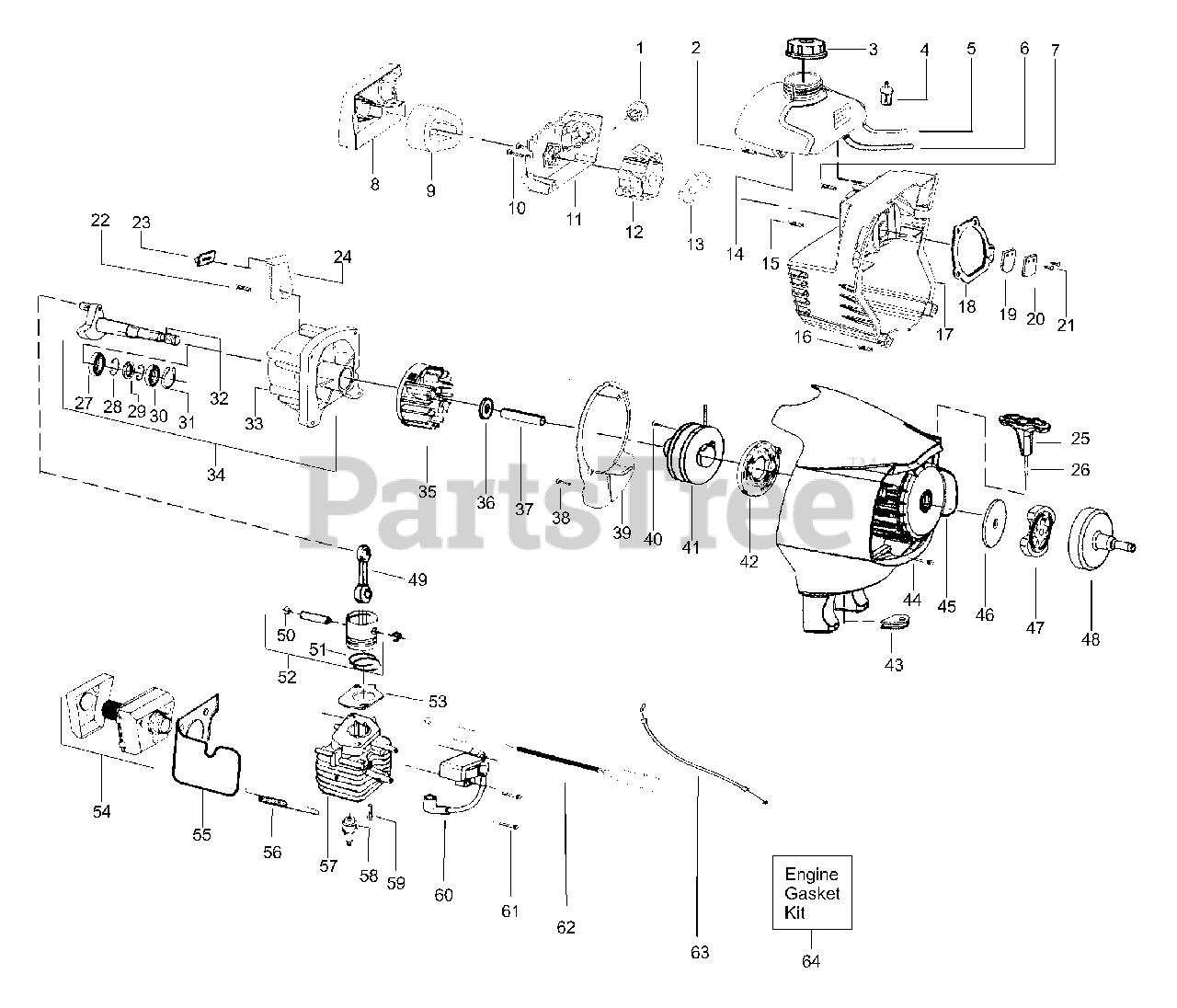

Engine Assembly Parts Diagram

  • Title

1

Poulan 530047721

Bulb-purge

$9.49

$

In Stock, Qty 20+

0

2

Poulan 530015843

Screw-tank

$3.49

$

Usually ships in 3-10 days

0

3

Poulan 530049386

Assy-Fuel cap
(Superseded to 530057973)

$9.49

$

Usually ships in 3-10 days

0

4

Poulan 530095646

Assy-Fuel pick-up

$6.99

$

In Stock, Qty 20+

0

5

Poulan 530071404

Kit-Fuel line
(Superseded to 530069247)

$2.49

$

In Stock, Qty 20+

0

6

Poulan 530069216

Kit-Fuel/Purge line

$13.99

$

In Stock, Qty 20+

0

7

Poulan 530015775

Screw

$3.49

$

In Stock, only 1 left!

0

8

Poulan 530054935

Cover-Air box

$

$

Not available

9

Poulan 530054946

Filter-Air

$28.99

$

In Stock, Qty 10

0

10

Poulan 530015849

Screw-carb.

$3.49

$

Usually ships in 3-10 days

0

11

Poulan 530054934

Air Box

$

$

Not available

12

Poulan 530071565

Kit-Carb.(wt619)

$

$

Not available

13

Poulan 530071401

Gasket-Carb.(kit)

$

$

Not available

14

Poulan 530055317

Assy-Fuel tank
(Superseded to 545075305)

$

$

Not available

15

Poulan 530015771

Screw-crankcase

$3.49

$

In Stock, only 4 left!

0

16

Poulan 530015952

Screw-shrd to f/hsg.

$

$

Not available

17

Poulan 530056044

Shroud

$

$

Not available

18

Poulan 530071401

Gasket-shd/c'case(kit)

$

$

Not available

19

Poulan 530027593

Valve-reed

$5.99

$

In Stock, only 2 left!

0

20

Poulan 530054596

Stop-reed

$

$

Not available

21

Poulan 530016064

Screw-reed valve

$3.49

$

In Stock, Qty 20+

0

22

Poulan 530015875

Screw-tank retainer

$3.49

$

In Stock, only 3 left!

0

23

Poulan 530055492

Isolator-fuel tank

$

$

Not available

24

Poulan 530054941

Ret.-fuel tank

$

$

Not available

25

Poulan 530054834

Handle-starter

$4.99

$

In Stock, Qty 20+

0

26

Poulan 530071325

Kit-Rope

$

$

Not available

27

Poulan 530032103

Bearing-inner

$

$

Not available

28

Poulan 530015787

Retainer

$

$

Not available

29

Poulan 530019158

Seal

$

$

Not available

30

Poulan 530032102

Bearing-outer

$

$

Not available

31

Poulan 530015789

Retainer-crankshaft

$

$

Not available

32

Poulan 530054948

Assy-crankshaft

$

$

Not available

33

Poulan 530014016

Assy-crankcase

$

$

Not available

34

Poulan 530055372

Assy-c'case/c'shaft

Note: (Incl. 27-31,32,33)

$

$

Not available

35

Poulan 530071402

Kit-Flywheel Assy.

$34.99

$

Usually ships in 3-10 days

0

36

Poulan 530016030

Washer

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 530055620

Spacer

$7.99

$

Usually ships in 3-10 days

0

38

Poulan 530015775

Screw-baffle

$3.49

$

In Stock, only 1 left!

0

39

Poulan 530056864

Plate-baffle

$

$

Not available

40

Poulan 530016326

Screw-rope

$

$

Not available

41

Poulan 530071399

Kit-pulley

Note: (Incl. #40)

$

$

Not available

42

Poulan 530042086

Spring-starter
(Superseded to 545008011)

$11.99

$

In Stock, only 3 left!

0

43

Poulan 530019182

Grommet

$

$

Not available

44

Poulan 530015810

Screw-F/hsg
(Superseded to 530016386)

$4.99

$

In Stock, only 1 left!

0

45

Poulan 530055248

Housing-Fan w/eyelet

$

$

Not available

46

Poulan 530094189

Washer-Clutch

$6.99

$

In Stock, Qty 8

0

47

Poulan 530055122

Assy.-Clutch

$22.99

$

In Stock, Qty 9

0

48

Poulan 530028799

Assy-Drum

$

$

Not available

49

Poulan 530010960

Assy-Connecting rod

$

$

Not available

50

Poulan 530015162

Retainer-piston pin

$3.49

$

In Stock, only 2 left!

0

51

Poulan 530025875

Ring-Piston

$

$

Not available

52

Poulan 530069277

Kit-Piston

$

$

Not available

53

Poulan 530071401

Gasket-Cylinder(kit)

$

$

Not available

54

Poulan 530069310

Kit-Muffler

$

$

Not available

55

Poulan 530053346

Heat shield/air dam
(Superseded to 530058957)

$6.99

$

In Stock, only 2 left!

0

56

Poulan 530036409

Spring-muffler

$

$

Not available

57

Poulan 530069628

Kit-Cylinder
(Superseded to 530071581)

$

$

Not available

58

Poulan 952030249

Spark plug (RCJ-6Y)

$4.49

$

In Stock, Qty 20+

0

59

Poulan 530001624

Bolt-Cylinder

$

$

Not available

60

Poulan 530039217

Module-Ignition
(Superseded to 501092801)

$31.99

$

In Stock, only 2 left!

0

61

Poulan 530016357

Screw-module

$3.49

$

In Stock, only 2 left!

0

62

Poulan 530057238

Assy-Rear wire

$

$

Not available

63

Poulan 530054942

Assy-Throttle Cable

$

$

Not available

64

Poulan 530071401

Kit-Gasket

$

$

Not available
