PP 335 - Poulan Pro Predator Chainsaw Carburetor Assembly Parts Diagram

Predator Chainsaw

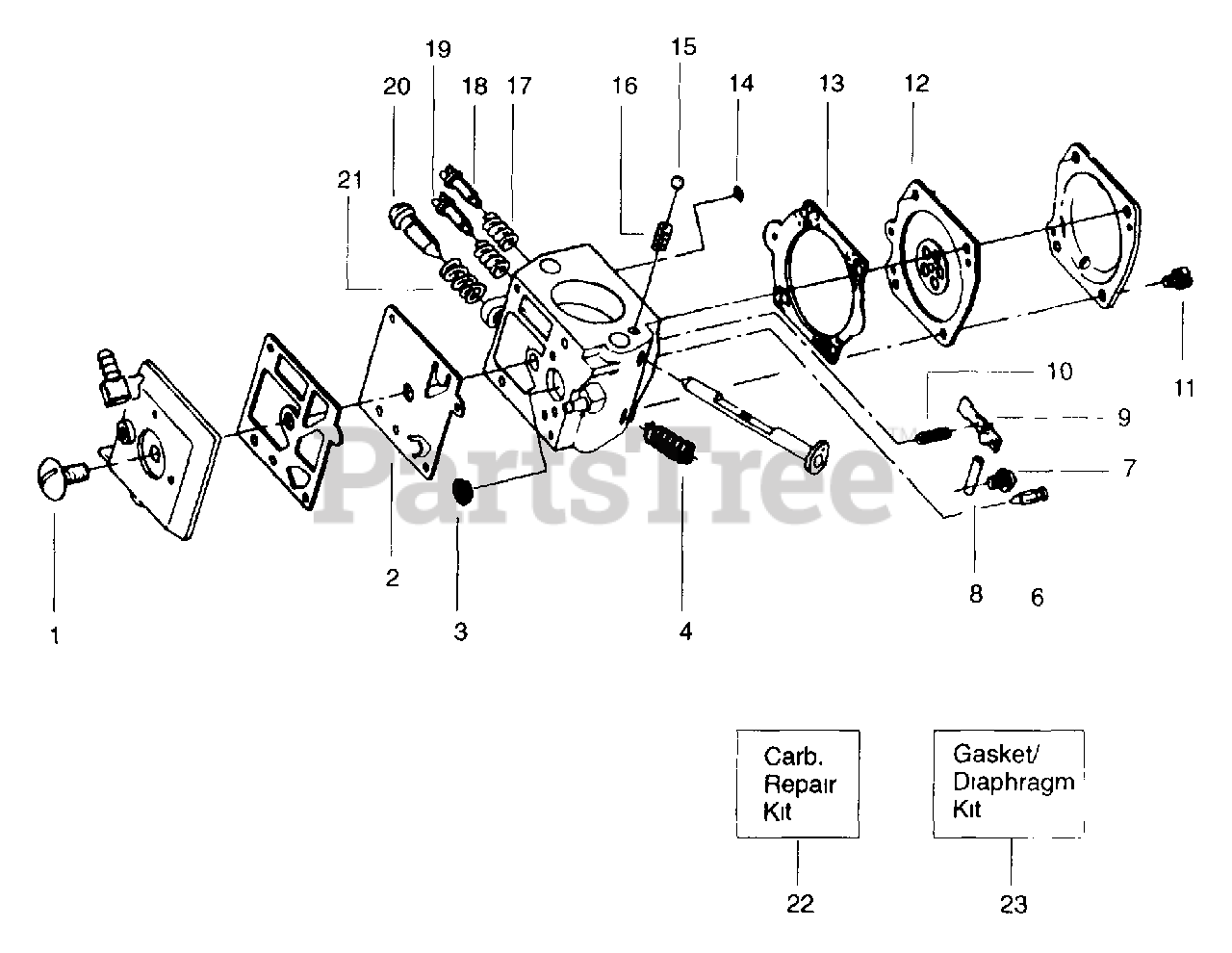

Carburetor Assembly Parts Diagram

  • Title

Poulan 530035201

Carburetor Assembly - HDA #49

$

$

Not available

1

Poulan 530035237

Screw

$

$

Not available

2

Poulan 530035229

Fuel Pump Diaphragm

Note: Contained in Gasket/Diaphragm Kit and Carb. Repair Kit.

$11.99

$

In Stock, only 1 left!

0

3

Poulan 530035249

Inlet Screen
(Superseded to 501666101)

Note: Contained in Carb. Repair Kit.

$14.99

$

In Stock, Qty 20+

0

4

Poulan 530035244

Throttle Spring

$

$

Not available

6

Poulan 530035106

Inlet Needle Valve
(Superseded to 503117001)

Note: Contained in Carb. Repair Kit.

$26.99

$

In Stock, Qty 6

0

7

Poulan 530035236

Screw
(Superseded to 505316717)

Note: Contained in Carb. Repair Kit.

$7.99

$

In Stock, Qty 6

0

8

Poulan 530035028

Pin
(Superseded to 505520125)

Note: Contained in Carb. Repair Kit.

$7.99

$

In Stock, only 3 left!

0

9

Poulan 530035252

Metering Lever

Note: Contained in Carb. Repair Kit.

$

$

Not available

10

Poulan 530035241

Spring

Note: Contained in Carb. Repair Kit.

$

$

Not available

11

Poulan 530035021

Screw

$

$

Not available

12

Poulan 530035230

Metering Diaphragm

Note: Contained in Gasket/Diaphragm Kit and Carb. Repair Kit.

$

$

Not available

13

Poulan 530035228

Metering Diaphragm Gasket

Note: Contained in Gasket/Diaphragm Kit and Carb. Repair Kit.

$

$

Not available

14

Poulan 530035124

Check Valve Screen

Note: Contained in Carb. Repair Kit.

$

$

Not available

15

Poulan 530035226

Ball

$

$

Not available

16

Poulan 530035240

Spring
(Superseded to 501468401)

$7.99

$

In Stock, only 1 left!

0

17

Poulan 530035243

Needle Adjusting Spring

$

$

Not available

18

Poulan 530035245

High Speed Needle

$

$

Not available

19

Poulan 530035246

Idle Needle

$

$

Not available

20

Poulan 530035238

Idle Adjust Screw

$

$

Not available

21

Poulan 530035242

Idle Speed Spring

$

$

Not available

22

Poulan 530069849

Carb Repair Kit

$

$

Not available

23

Poulan 530069844

Gasket/Diaphragm Kit

$22.99

$

In Stock, Qty 6

0

Poulan 530035225

Plug - Cup (5mm)

Note: Not Shown

$

$

Not available
