PP 335 - Poulan Pro Predator Chainsaw Handle, Chain & Bar Parts Diagram

Predator Chainsaw

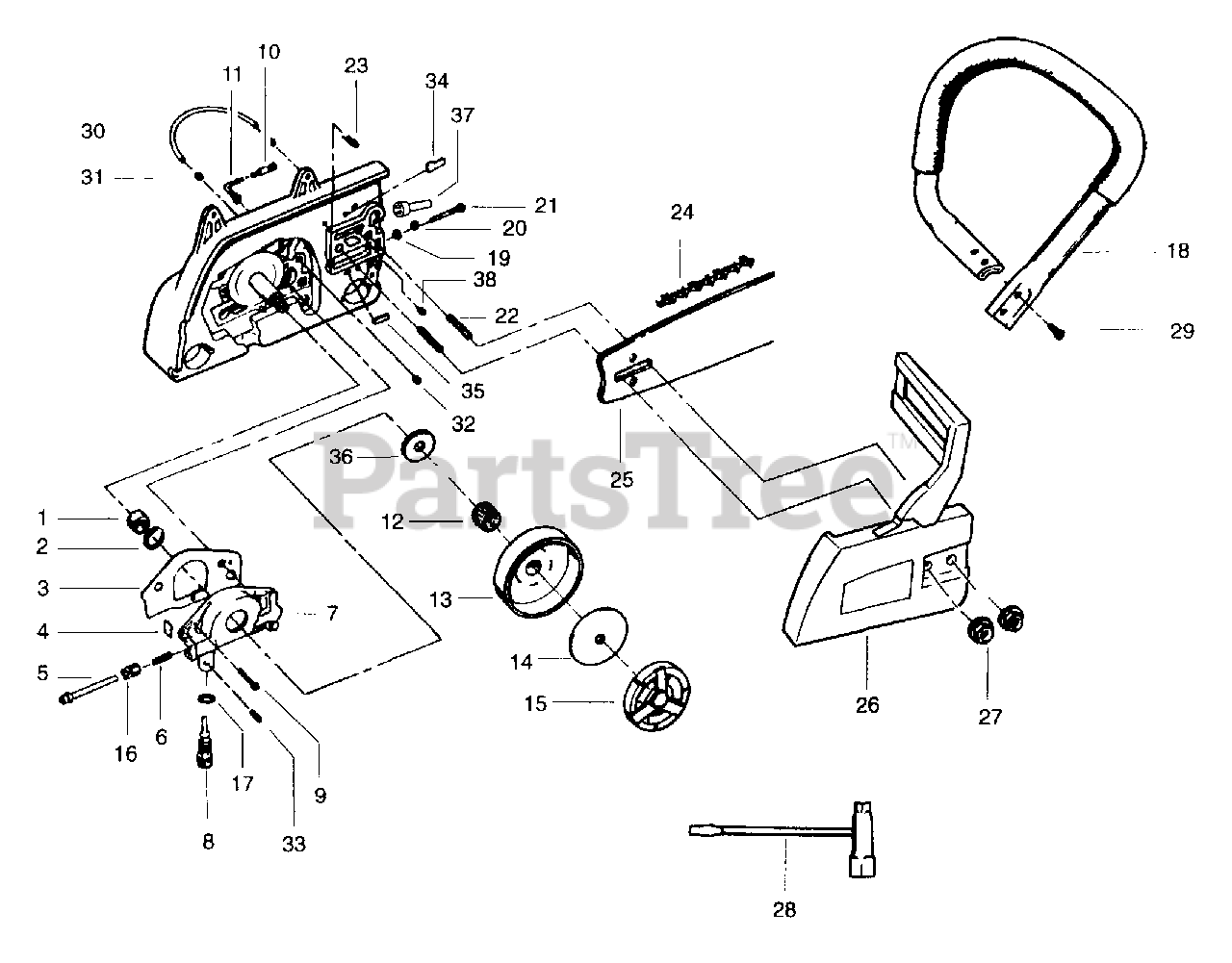

Handle, Chain & Bar Parts Diagram

  • Title

1

Poulan 530027140

Wire - Worm Gear

$

$

Not available

2

Poulan 530019147

Seal - Oil Pump

$

$

Not available

3

Poulan 530069487

Gasket Kit

$

$

Not available

4

Poulan 530027128

Dust Plug

$

$

Not available

5

Poulan 530014204

Shaft Assy

$

$

Not available

6

Poulan 530027126

Spring - Plunger

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 530069218

Oil Pump Ass'y. Kit

$

$

Not available

8

Poulan 530015699

Screw - Oiler Adjusting

$

$

Not available

9

Poulan 530015871

Screw
(Superseded to 530015650)

$

$

Not available

10

Poulan 530027272

Oil & Filter Pickup

$

$

Not available

11

Poulan 530027192

Line - Intake Oil

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 530032049

Clutch Bearing

$

$

Not available

13

Poulan 530048084

Drum & Sprocket Ass'y.

$26.99

$

In Stock, only 2 left!

0

14

Poulan 530027161

Clutch Plate

$1.99

$

Usually ships in 3-10 days

0

15

Poulan 530014161

Clutch Ass'y.

$

$

Not available

16

Poulan 530027129

Gear - Spur

$

$

Not available

17

Poulan 530019079

"O" Ring

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530047163

Handlebar Ass'y.
(Superseded to 530053350)

$27.99

$

Usually ships in 3-10 days

0

19

Poulan 530015826

Bar Adjusting Pin

$4.99

$

In Stock, Qty 20+

0

20

Poulan 530038593

Retainer - Bar Adjust

$4.99

$

In Stock, Qty 20+

0

21

Poulan 530016110

Screw

$4.99

$

In Stock, Qty 20+

0

22

Poulan 530016238

Bar Stud

$

$

Not available

23

Poulan 530015108

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

24

Poulan 952051310

Chain - 20" (33SL)

$

$

Not available

25

Poulan 952044583

Bar - 20" (SN)

$

$

Not available

26

Poulan 530053315

Chain Brake Ass'y
(Superseded to 952069321)

$

$

Not available

27

Poulan 530015445

Nut - Bar Mounting
(Superseded to 530015251)

$

$

Not available

28

Poulan 530031146

Scrench
(Superseded to 545006011)

$

$

Not available

29

Poulan 530016058

Screw

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530021061

Line - Oiler

$

$

Not available

31

Poulan 530002464

Sleeve - Ferrule

$3.99

$

In Stock, only 1 left!

0

32

Poulan 530015422

Nut - Slotted Tube

$

$

Not available

33

Poulan 530015752

Pin-Adjustment Screw

$

$

Not available

34

Poulan 530027222

Chain Pad - Top

$

$

Not available

35

Poulan 530027223

Chain Pad

$

$

Not available

36

Poulan 530015733

Washer - Thrust

$4.99

$

In Stock, Qty 5

0

37

Poulan 530029236

Crankcase Plug

$

$

Not available

38

Poulan 530025539

Fitting - Bar Pad

$

$

Not available
