PP 336 - Poulan Pro Chainsaw External Power Unit Parts Diagram

Chainsaw

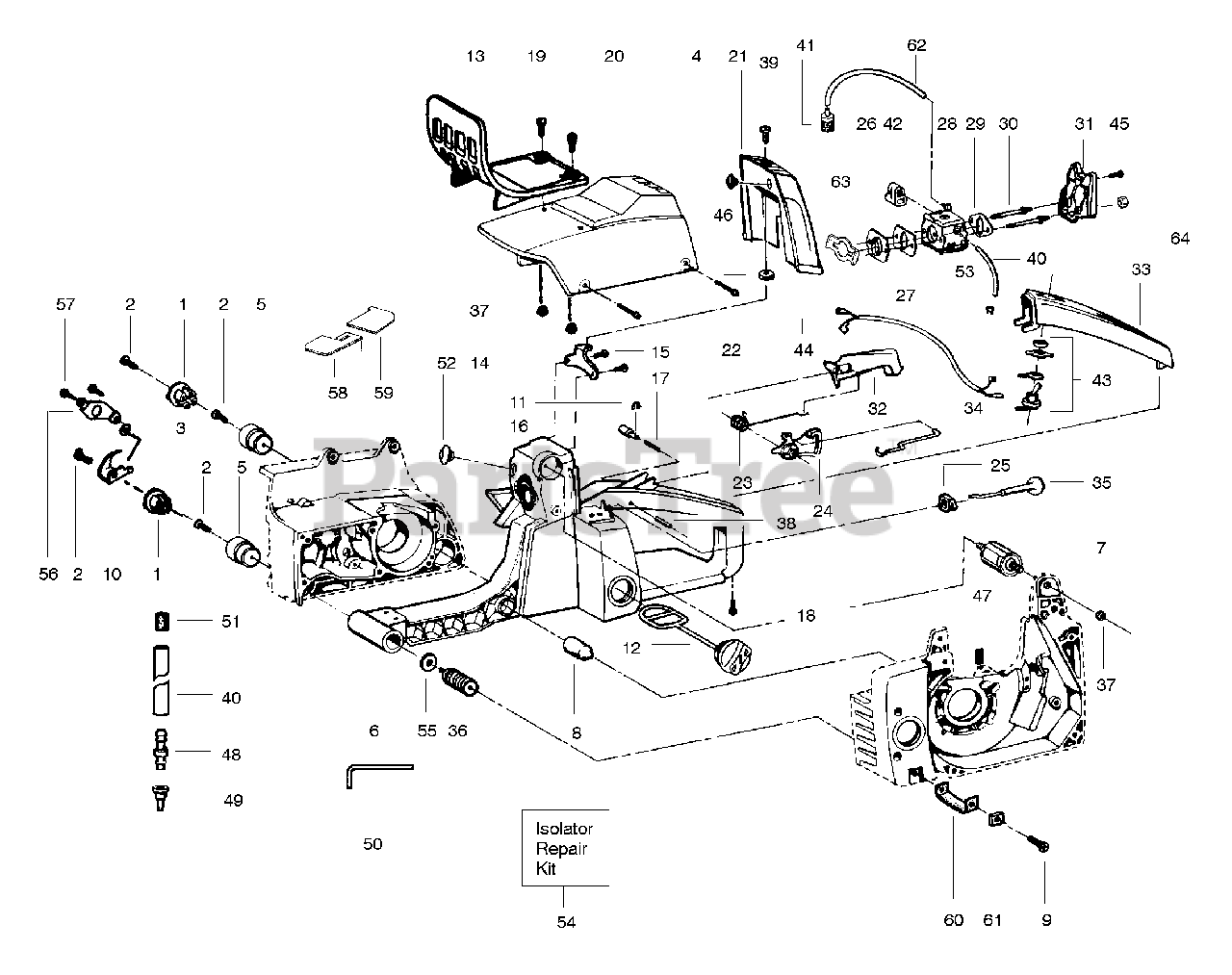

External Power Unit Parts Diagram

  • Title

1

Poulan 530027732

Retainer-Chain Catcher

$

$

Not available

2

Poulan 530016057

Screw

$4.99

$

In Stock, Qty 10

0

3

Poulan 530015562

Washer-Flat

$2.49

$

In Stock, only 1 left!

0

4

Poulan 530027399

Carb. Cover Bumper

$3.49

$

In Stock, only 1 left!

0

5

Poulan 530042080

Lower Isolator

$

$

Not available

6

Poulan 530069925

Rear Handle & Fuel Tank

$

$

Not available

7

Cylindrical Mount-Service Reference 1

Note: Refer to the "Service reference" indicated for more information

$

$

Not available

8

Poulan 530027187

Bumper Isolator

$3.49

$

In Stock, only 1 left!

0

9

Poulan 530015871

Screw
(Superseded to 530015650)

$

$

Not available

10

Poulan 530027733

Chain Catcher

$

$

Not available

11

Poulan 530015702

"C" Clip

$

$

Not available

12

Poulan 530010845

Fuel Cap Ass'y.

$

$

Not available

13

Poulan 530047382

Handguard

$

$

Not available

14

Poulan 530036035

Bracket

$

$

Not available

15

Poulan 530015598

Screw

$

$

Not available

16

Poulan 530029666

Throttle Lock

$

$

Not available

17

Poulan 530024772

Throttle Spring

$

$

Not available

18

Poulan 530015716

Screw

$

$

Not available

19

Poulan 530015406

Screw

$

$

Not available

20

Poulan 530069392

Cylinder Shield Kit

$

$

Not available

21

Poulan 530036038

Carb. Cover

$

$

Not available

22

Poulan 530015871

Screw
(Superseded to 530015650)

$

$

Not available

23

Poulan 530027134

Trigger Latch Spring

$

$

Not available

24

Poulan 530027133

Throttle Trigger

$

$

Not available

25

Poulan 530036053

Grommet

$

$

Not available

26

Poulan 530027121

Bracket

$

$

Not available

27

Poulan 530069487

Engine Gasket Set

$

$

Not available

28

Poulan 530035201

Carburetor (HDA-49)

$

$

Not available

29

Poulan 530023664

Air Filter Plate

$

$

Not available

30

Poulan 530049562

Carb. Mounting Stud

$

$

Not available

31

Poulan 530010892

Air Filter Ass'y.

$

$

Not available

32

Poulan 530027135

Throttle Lockout

$

$

Not available

33

Poulan 530027207

Rear Handle Cover

$

$

Not available

34

Poulan 530027073

Throttle Wire

$9.49

$

In Stock, only 1 left!

0

35

Poulan 530027075

Choke Knob

$

$

Not available

36

Poulan 530069384

Isolator Kit

$

$

Not available

37

Poulan 534790500

Nut

$3.49

$

In Stock, Qty 6

0

38

Poulan 530015701

Dowel Pin

$3.49

$

In Stock, only 1 left!

0

39

Poulan 530015724

Screw

$

$

Not available

40

Poulan 530069216

Line Kit (Bulk 530008133)

$13.99

$

In Stock, Qty 20+

0

41

Poulan 530091878

Fuel Pickup Ass'y.

$

$

Not available

42

Poulan 530049265

Grommet-Carb.

$

$

Not available

43

Poulan 530069225

Switch Kit

$

$

Not available

44

Poulan 530027138

Lead Wire Ass'y.

$

$

Not available

45

Poulan 530015802

Screw
(Superseded to 530015598)

$

$

Not available

46

Poulan 530027202

Retainer-Screw

$

$

Not available

47

Poulan 530025539

Impulse Fitting

$

$

Not available

48

Poulan 530024475

Vent Fitting

$4.99

$

In Stock, Qty 20+

0

49

Poulan 530026119

Check Valve

$5.99

$

In Stock, Qty 20+

0

50

Poulan 530031159

Hex Key

$3.49

$

In Stock, only 1 left!

0

51

Poulan 530027339

Vent Plug

$

$

Not available

52

Poulan 530025922

Air Box Plug

$

$

Not available

53

Poulan 530027341

Clamp

$

$

Not available

54

Poulan 530069297

Isolator Repair Kit

$

$

Not available

55

Poulan 530015123

Washer

$4.99

$

In Stock, only 3 left!

0

56

Poulan 530029347

Bracket Retainer

$

$

Not available

57

Poulan 530015875

Screw

$3.49

$

In Stock, only 3 left!

0

58

Poulan 530019192

Carb. Seal-Left

$

$

Not available

59

Poulan 530019191

Carb. Seal-Right

$

$

Not available

60

Poulan 530037104

AV Strap

$

$

Not available

61

Poulan 530037012

Strap Retainer Plate

$4.99

$

In Stock, Qty 10

0

62

Poulan 530069910

Fuel Line Kit (Bulk 530009078)

$

$

Not available

63

Poulan 530049273

Bracket-Carb Stud

$

$

Not available

64

Poulan 530049561

Nut-Air Filter

$3.49

$

In Stock, only 1 left!

0
