PP 35 - Poulan Pro String Trimmer Handle, Chassis & Bar Assembly Parts Diagram

String Trimmer

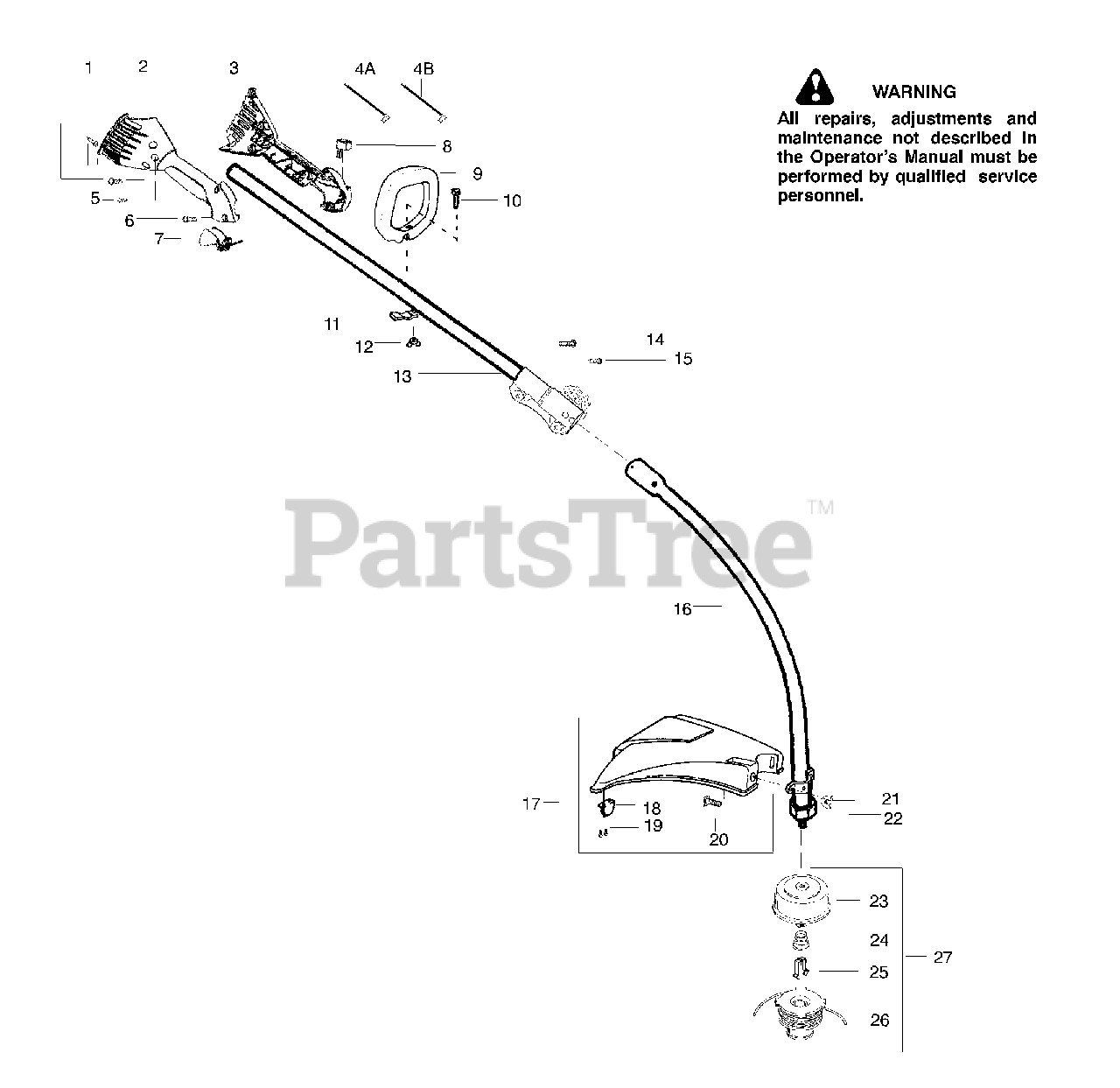

Handle, Chassis & Bar Assembly Parts Diagram

  • Title

1

Poulan 530015886

Screw-handle/fan hsg

$6.49

$

In Stock, Qty 17

0

2

Poulan 530054837

Hsg.-Throttle (Right)

$

$

Not available

3

Poulan 530071554

Kit-Left Throttle Hsg.

$10.99

$

Usually ships in 3-10 days

0

4A

Poulan 530054943

Assy-Front Wire Lower Front Wire

$

$

Not available

4B

Poulan 530055724

Assy-Front Wire Upper Front Wire

$

$

Not available

5

Poulan 530015805

Screw-Alignment
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

6

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

7

Poulan 530054940

Trigger

$3.99

$

In Stock, Qty 10

0

8

Poulan 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

9

Poulan 530055699

Assy-Handle-Assist

$11.99

$

Usually ships in 3-10 days

0

10

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 530088416

Clamp-Assist Handle

$

$

Not available

12

Poulan 530016118

Wingnut
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

13

Poulan 530071607

Assy-Upper Shaft

Note: (Incl. flex shaft & coupler)

$

$

Not available

14

Poulan 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 530016343

Screw-Alignment

Note: (Used on previous models)

$2.49

$

Usually ships in 3-10 days

0

16

Poulan 530071557

Assy-Lower Shaft

Note: (Incl. flex shaft)

$46.99

$

Usually ships in 3-10 days

0

17

Poulan 530069666

Kit-Shield Ass'y.

Note: (Incl.18-21)

$

$

Not available

18

Poulan 530052286

Line Limiter

$

$

Not available

19

Poulan 530015814

Screw-Line Limiter

$6.49

$

In Stock, Qty 20+

0

20

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 530091373

Wingnut

$4.99

$

In Stock, only 1 left!

0

22

Poulan 530094543

Dustcup

$

$

Not available

23

Poulan 530095773

Assy-Hub/Arbor

$10.99

$

Usually ships in 3-10 days

0

24

Poulan 530053241

Spring-Return

$

$

Not available

25

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, Qty 6

0

26

Poulan 530053243

Assy-Wound Spool

$

$

Not available

27

Poulan 530053239

Assy-TNG VI 3/8" -RH 2x

$

$

Not available

Poulan 530163732

Manual-Operator

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530056221

Decal-Upper Shaft

Note: Not Shown

$

$

Not available

Poulan 530056220

Decal-Shaft
(Superseded to 545209101)

Note: Not Shown

$

$

Not available

Poulan 530057369

Decal-Starting Instruction

Note: Not Shown

$

$

Not available
