PP 365 C - Poulan Pro Chainsaw INTERNAL POWER UNIT Parts Diagram

Chainsaw

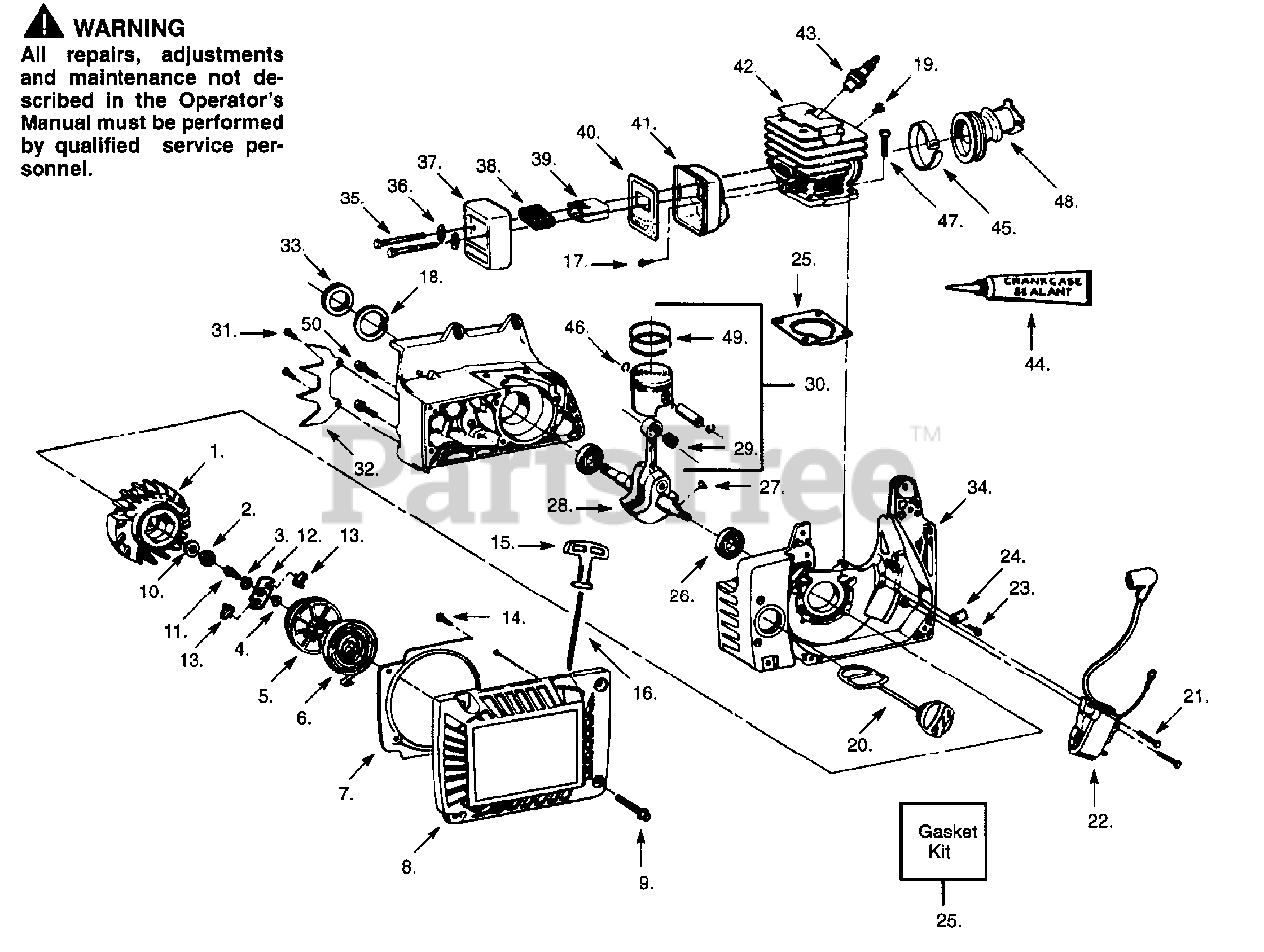

INTERNAL POWER UNIT Parts Diagram

  • Title

1

Poulan 530039155

Flywheel

$

$

Not available

2

Poulan 530001733

Nut

$

$

Not available

3

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

4

Poulan 530027163

Retainer

$

$

Not available

5

Poulan 530036054

Starter Pulley

$

$

Not available

6

Poulan 530042067

Starter Spring
(Superseded to 545008009)

$8.49

$

Usually ships in 3-10 days

0

7

Poulan 530027096

Baffle Plate

$

$

Not available

8

Poulan 530014714

Fan Housing

$

$

Not available

9

Poulan 530015709

Screw
(Superseded to 530015708)

$1.49

$

Usually ships in 3-10 days

0

10

Poulan 530015441

Washer

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 530015713

Screw

$

$

Not available

12

Poulan 530036055

Starter Cam

$

$

Not available

13

Poulan 530027162

Starter Dog

$6.49

$

In Stock, Qty 5

0

14

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 530042056

Starter Handle

$

$

Not available

16

Poulan 530069233

Rope Kit

$7.49

$

In Stock, Qty 20+

0

17

Poulan 530015720

Bolt

$

$

Not available

18

Poulan 530001516

Snap Ring

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530015696

Clip

$

$

Not available

20

Poulan 530010846

Oil Cap Ass'y. (Incl. O Ring)
(Superseded to 530057236)

$

$

Not available

21

Poulan 530015708

Screw
(Superseded to 530015425)

$1.49

$

Usually ships in 3-10 days

0

22

Poulan 530039128

Ignition Module

$

$

Not available

23

Poulan 530015306

Screw

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530027264

Clamp

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 530069263

Model 336C

$

$

Not available

25

Poulan 530069382

Model 365C

$

$

Not available

26

Poulan 530032093

Crankshaft Bearing

$

$

Not available

27

Poulan 530002595

Flywheel Key

$4.99

$

In Stock, Qty 7

0

28

Poulan 530027143

Crankshaft/Rod Ass'y.

$157.99

$

Usually ships in 3-10 days

0

29

Poulan 530032111

Piston Pin Bearing

$

$

Not available

30

Poulan 530010989

Model 336C

$

$

Not available

30

Poulan 530069381

Model 365C

$

$

Not available

31

Poulan 530015710

Screw

$

$

Not available

32

Poulan 530027184

Spur

$

$

Not available

33

Poulan 530019160

Crankshaft Seal

$

$

Not available

34

Crankcase Ass'y.

Note: (Incl.18,26,33,& 20,21,32,, 33,36,& 37 from "HANDLE & CHAIN")

$

$

Not available

34

Poulan 530014748

Model 336C

$

$

Not available

34

Poulan 530014715

Model 365C

$

$

Not available

35

Poulan 530015718

Screw

$

$

Not available

36

Poulan 530015722

Washer

$4.99

$

In Stock, only 3 left!

0

37

Poulan 530036170

Model 336C
(Superseded to 530056612)

$

$

Not available

37

Poulan 530036550

Model 365C

$

$

Not available

38

Poulan 530027095

Model 336C

$3.99

$

In Stock, only 1 left!

0

38

Poulan 530036714

Model 365C

$

$

Not available

39

Poulan 530028647

Model 336C

$6.49

$

In Stock, only 1 left!

0

39

Poulan 530036172

Model 365C

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 530036173

Model 336C

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530036551

Model 365C

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530036171

Model 336C

$

$

Not available

41

Poulan 530036549

Model 365C

$

$

Not available

42

Poulan 530012197

Model 336C

$

$

Not available

42

Poulan 530016035

Model 365C

$

$

Not available

43

Poulan 530030034

Model 336C

$

$

Not available

43

Poulan 530030159

Model 365C

$

$

Not available

44

Poulan 530030054

Sealant

$

$

Not available

45

Poulan 530027285

Clamp Ass'y.

$

$

Not available

46

Poulan 530015697

Retainer

$6.49

$

In Stock, Qty 6

0

47

Poulan 530001624

Screw

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 530027218

Carb. Adapter

$

$

Not available

49

Poulan 530027608

Model 336C

$

$

Not available

49

Poulan 530036176

Model 365C

$

$

Not available

50

Poulan 530015707

Screw

$4.99

$

In Stock, only 2 left!

0
