PP 425 - Poulan Pro Chainsaw HANDLE ASSEMBLY Parts Diagram

Chainsaw

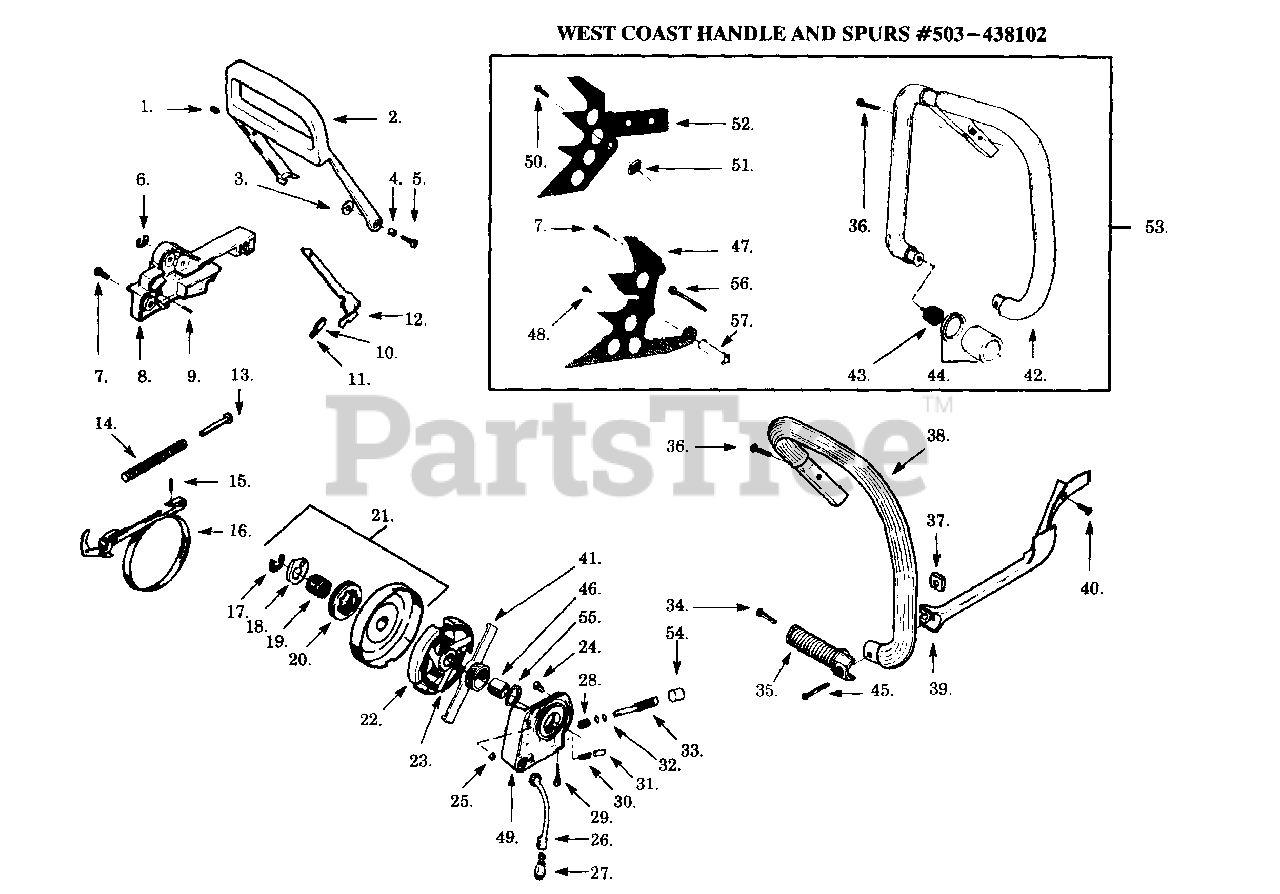

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Poulan 721430350

Pin

$

$

Not available

2

Poulan 506093802

Actuator

$

$

Not available

3

Poulan 503234502

Washer

$

$

Not available

4

Poulan 503436101

Bushing

$

$

Not available

5

Poulan 503200225

Screw

$3.49

$

In Stock, Qty 11

0

6

Poulan 735311020

E-Clip

$3.49

$

In Stock, Qty 8

0

7

Poulan 503200216

Screw

$3.49

$

In Stock, Qty 20+

0

8

Poulan 506093404

Brake Housing

$

$

Not available

9

Poulan 720127050

Pin

$

$

Not available

10

Poulan 503436701

Block

$

$

Not available

11

Poulan 503436501

Spring

$3.49

$

In Stock, only 1 left!

0

12

Poulan 503436901

Actuator Arm

$

$

Not available

13

Poulan 503435801

Pin

$

$

Not available

14

Poulan 503408101

Spring

$

$

Not available

15

Poulan 720123500

Pin

$

$

Not available

16

Poulan 506094502

Band

$

$

Not available

17

Poulan 503272101

E-Clip

$1.99

$

In Stock, Qty 20+

0

18

Poulan 503656502

Washer
(Superseded to 503752401)

$4.99

$

In Stock, Qty 20+

0

19

Poulan 503432001

Clutch Bearing

$17.99

$

In Stock, Qty 12

0

20

Poulan 501598002

Rim-3/8"x7T
(Superseded to 640200215)

$9.49

$

In Stock, Qty 16

0

20

Poulan 505303661

Rim-3/8"x8T
(Superseded to 608000112)

$

$

Not available

21

Poulan 503438401

Clutch Drum Ass'y. (Incl. 17-20)

$

$

Not available

22

Poulan 503524601

Clutch Ass'y.

$

$

Not available

23

Poulan 503471801

Clutch Spring

$5.99

$

In Stock, only 3 left!

0

24

Poulan 503202516

Screw

$3.49

$

Usually ships in 3-10 days

0

25

Poulan 501288501

Seal Ring

$5.99

$

In Stock, only 2 left!

0

26

Poulan 503426701

Oil Pickup Tube

$11.99

$

In Stock, Qty 5

0

27

Poulan 501544102

Oil Pickup

$20.99

$

In Stock, only 2 left!

0

28

Poulan 501615801

Spring

$6.99

$

Usually ships in 3-10 days

0

29

Poulan 503421301

Adjusting Screw

$

$

Not available

30

Poulan 503422401

Spring

$3.49

$

In Stock, only 1 left!

0

31

Poulan 503421401

Pin

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 503230054

Washer

$

$

Not available

33

Poulan 503421202

Pump Piston

$

$

Not available

34

Poulan 503210632

Screw

$

$

Not available

35

Poulan 503428201

Spring

$

$

Not available

36

Poulan 503200230

Screw

$3.49

$

In Stock, only 4 left!

0

37

Poulan 503226501

Nut
(Superseded to 503226504)

$5.49

$

In Stock, Qty 20+

0

38

Poulan 503425802

Handlebar

$

$

Not available

39

Poulan 503425102

Brace

$

$

Not available

40

Poulan 503210619

Screw
(Superseded to 503214974)

$3.49

$

Usually ships in 3-10 days

0

41

Poulan 503723601

Worm Gear

$

$

Not available

42

Poulan 503435702

Handlebar

$

$

Not available

43

Poulan 504125014

Mount

$

$

Not available

44

Poulan 503437401

Spacer

$

$

Not available

45

Poulan 503200235

Screw
(Superseded to 725533755)

$3.49

$

In Stock, only 4 left!

0

46

Poulan 503764501

Bushing

$

$

Not available

47

Poulan 503434201

Inner Spur

$

$

Not available

48

Poulan 503200210

Screw
(Superseded to 503200710)

$4.99

$

In Stock, only 2 left!

0

49

Poulan 503421006

Oil Pump Ass'y (Incl. 25, 28-33, & 54)

$

$

Not available

50

Poulan 503200212

Screw
(Superseded to 503200712)

$4.99

$

In Stock, Qty 7

0

51

Poulan 503226501

Nut
(Superseded to 503226504)

$5.49

$

In Stock, Qty 20+

0

52

Poulan 503434301

Outer Spur

$

$

Not available

53

Poulan 503438102

Wrap Around Handlebar Kit (Incl. 7, 36, 42-44, 47, 48, 50-52, 56 & 57,)

$

$

Not available

54

Poulan 503624901

Dust Shield

$6.99

$

In Stock, only 2 left!

0

55

Poulan 503230014

Washer
(Superseded to 503230058)

$3.49

$

In Stock, only 2 left!

0

56

Poulan 503200265

Screw

$

$

Not available

57

Poulan 503132802

Spacer

$

$

Not available

Poulan 503434402

Winter Kit

Note: Not Shown.

$

$

Not available

Poulan 506094406

Chain Brake Ass'y. (Incl. 1, 2, 6, 8-16)

Note: Not Shown.

$

$

Not available

Poulan 503427201

Air Box Post Repair Kit

Note: Not Shown.

$

$

Not available
