PP 442 - Poulan Pro Blower Interior Power Unit Parts Diagram

Blower

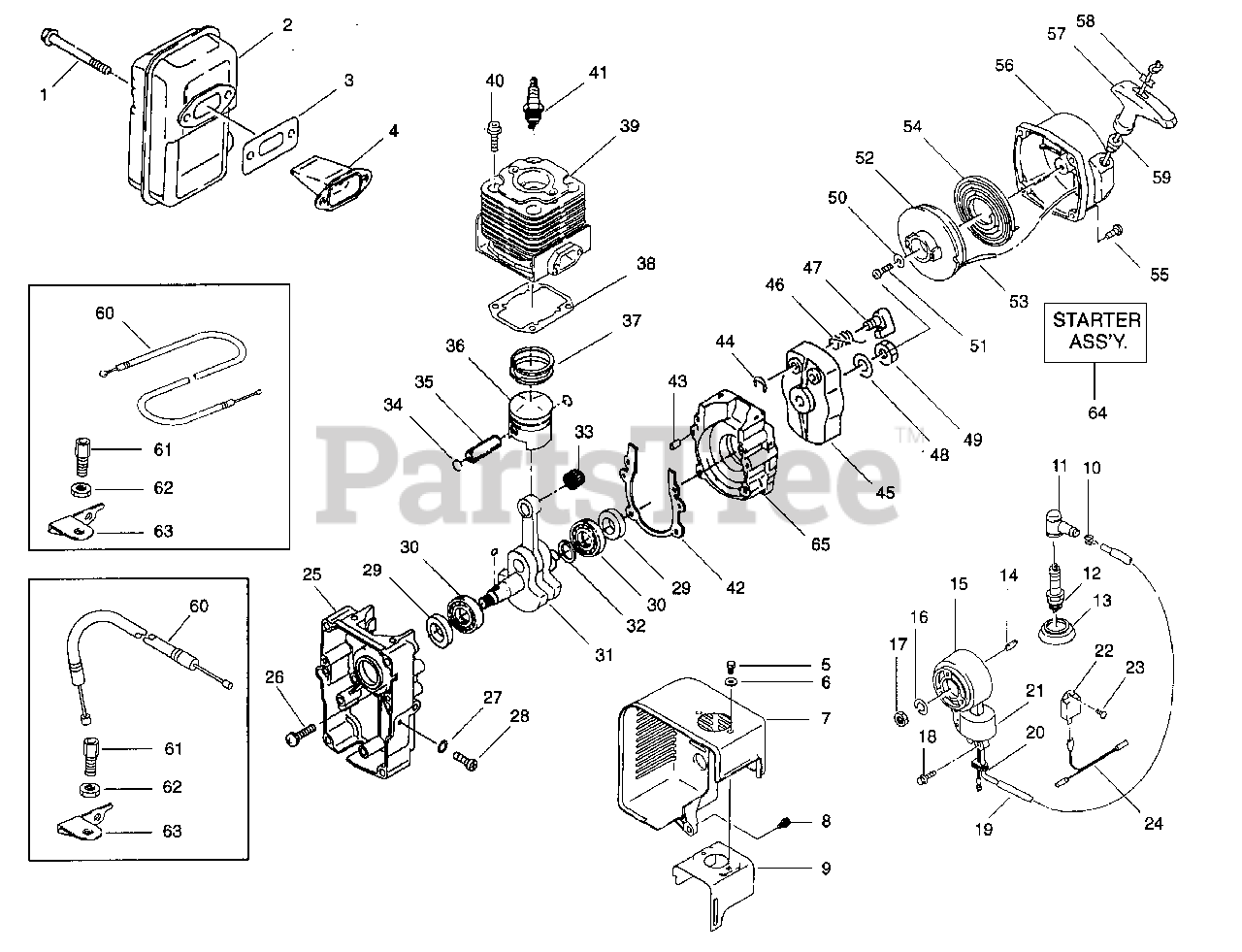

Interior Power Unit Parts Diagram

  • Title

1

Poulan 921502180

Bolt

$

$

Not available

2

Poulan 490702577

Muffler
(Superseded to 490702751)

$

$

Not available

3

Poulan 110092873

Gasket

$

$

Not available

4

Poulan 180772093

Spark Arrester

$

$

Not available

5

Poulan 921502131

Bolt

$

$

Not available

6

Poulan 920222385

Washer

$

$

Not available

7

Poulan 490892370

Shroud

$

$

Not available

8

Poulan 920092285

Screw

$

$

Not available

9

Poulan 490892298

Shroud

$

$

Not available

10

Poulan 211692051

Terminal

$

$

Not available

11

Poulan 211302056

Cap

$

$

Not available

12

Poulan 920702066

Spark Plug

$

$

Not available

13

Poulan 490062051

Boot

$

$

Not available

14

Poulan 920382078

Key

$

$

Not available

15

Poulan 210502181

Flywheel

$

$

Not available

16

Poulan 920222147

Washer

$

$

Not available

17

Poulan 314R1000

Nut
(Superseded to 545145454)

$

$

Not available

18

Poulan 180R0520

Bolt

$1.49

$

Usually ships in 3-10 days

0

19

Poulan 920592233

Tube

$

$

Not available

20

Poulan 920712077

Grommet

$

$

Not available

21

Ignition Coil Ass'y.

$

$

Not available

21

Poulan 211712165

Type 1

$

$

Not available

21

Poulan 211712201

Type 2

$

$

Not available

22

Poulan 211192134

Igniter-Type 1 Only

$

$

Not available

23

Poulan 214B0408

Screw-Type 1 Only

$0.99

$

Usually ships in 3-10 days

0

24

Lead Wire

$

$

Not available

24

Poulan 260112263

Type 1

$

$

Not available

24

Poulan 260112321

Type 2

$

$

Not available

25

Poulan 140022240

Crankcase - Drive Side
(Superseded to 530058378)

$

$

Not available

26

Poulan 223B0630

Screw

$0.99

$

Usually ships in 3-10 days

0

27

Poulan 751Q0600

Gasket

$0.99

$

Usually ships in 3-10 days

0

28

Poulan 214B0608

Screw

$0.99

$

Usually ships in 3-10 days

0

29

Poulan 920492076

Oil Seal

$

$

Not available

30

Poulan 920452005

Bearing

$

$

Not available

31

Poulan 491196090

Crankshaft Assy

$

$

Not available

32

Shim

$

$

Not available

32

Poulan 920252134

T=0.10

$

$

Not available

32

Poulan 920252135

T=0.20

$

$

Not available

32

Poulan 920252136

T=0.40

$

$

Not available

32

Poulan 920252127

T=0.60

$

$

Not available

33

Poulan 130332005

Needle Bearing

$

$

Not available

34

Poulan 920332058

Snap Ring

$

$

Not available

35

Poulan 130022065

Piston Pin

$

$

Not available

36

Poulan 130012121

Piston

$

$

Not available

37

Poulan 130086049

Piston Ring Set

$

$

Not available

38

Poulan 110092854

Gasket

$

$

Not available

39

Poulan 110052114

Cylinder

$

$

Not available

40

Poulan 920022150

Bolt

$

$

Not available

41

Poulan 920702066

Spark Plug

$

$

Not available

42

Poulan 110092521

Gasket

$2.49

$

In Stock, only 1 left!

0

43

Poulan 551A0610

Pin

$0.99

$

Usually ships in 3-10 days

0

44

Poulan 920332010

Ring

$

$

Not available

45

Poulan 490802155

Starter Pulley

$

$

Not available

46

Poulan 921442046

Spring-Return
(Superseded to 531003367)

$

$

Not available

47

Poulan 131652070

Pawl

$3.99

$

In Stock, only 2 left!

0

48

Poulan 410B0800

Washer

$0.99

$

Usually ships in 3-10 days

0

49

Poulan 315B0800

Nut
(Superseded to 545145455)

$

$

Not available

50

Poulan 922002019

Washer

$

$

Not available

51

Poulan 920092218

Screw

$

$

Not available

52

Poulan 591012085

Recoil Starter

$

$

Not available

53

Poulan 591062117

Rope

$

$

Not available

54

Poulan 921442038

Spring - Recoil

$

$

Not available

55

Poulan 242B0416

Screw
(Superseded to 545145452)

$

$

Not available

56

Poulan 320992210

Starter Case

$

$

Not available

57

Poulan 460752067

Grip

$

$

Not available

58

Poulan 131692386

Plate

$

$

Not available

59

Poulan 130702064

Rope Guide

$

$

Not available

60

Cable-Throttle

$

$

Not available

60

Poulan 540122535

Type 1

$

$

Not available

60

Poulan 540122562

Type 2

$

$

Not available

61

Screw

$

$

Not available

61

Poulan 610022053

Type 1

$

$

Not available

61

Poulan 920092354

Type 2

$

$

Not available

62

Poulan 312B0600

Nut
(Superseded to 545145453)

$

$

Not available

63

Poulan 110462086

Bracket

$

$

Not available

64

Poulan 490882380

Starter Ass'y.

Note: (Incl. 50-54 & 56-59)

$

$

Not available

65

Poulan 140022239

Crankcase - Starter Side

$

$

Not available
