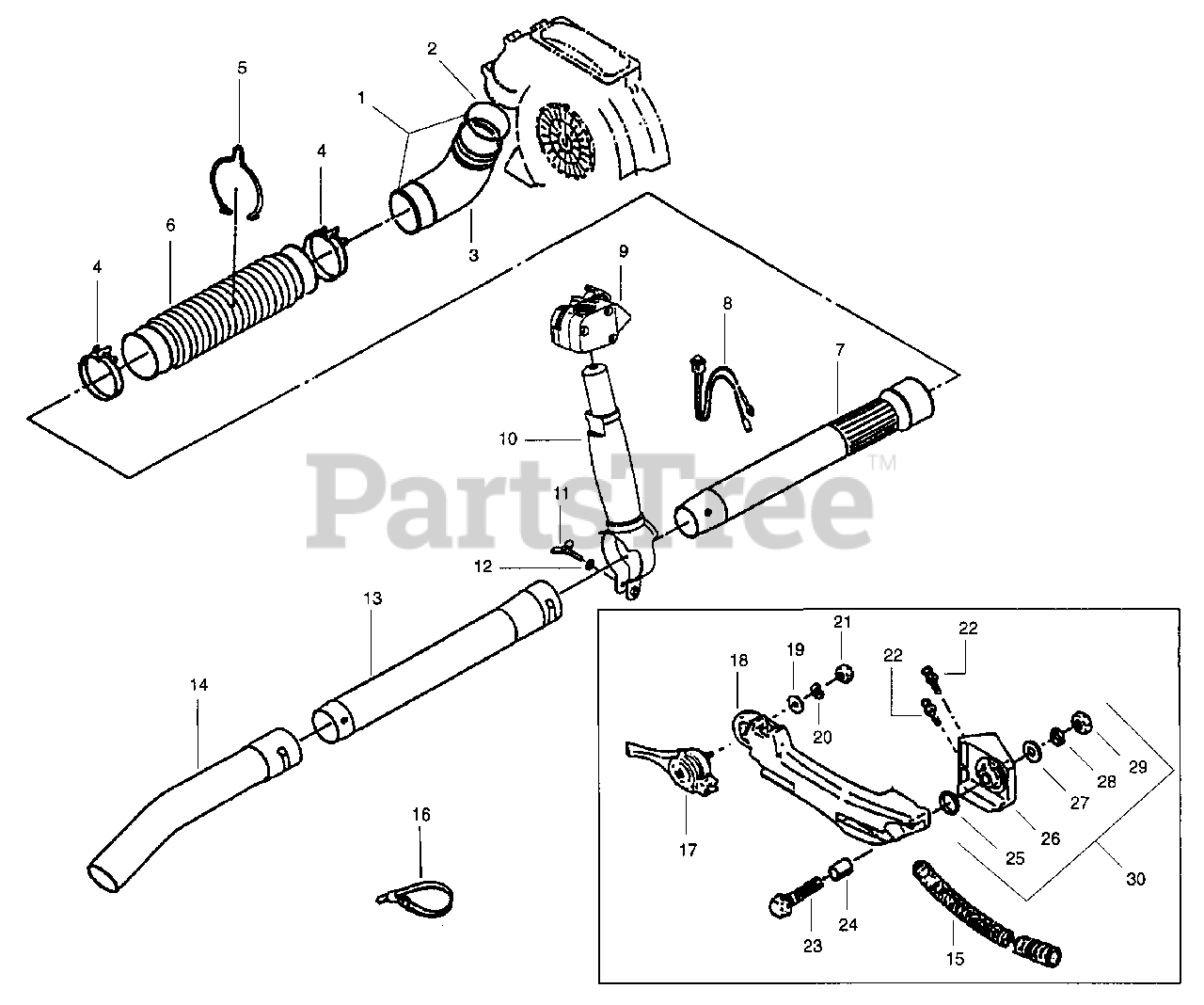

PP 442 - Poulan Pro Blower Pipes, Tubes, & Throttle Assembly Parts Diagram

Blower

Pipes, Tubes, & Throttle Assembly Parts Diagram

  • Title

1

Poulan 530089363

Elbow Pipe Ass'y.

Note: (Incl. 2 & 3)

$

$

Not available

2

Poulan 530089212

O-Ring
(Superseded to 545145482)

$

$

Not available

3

Poulan 530089211

Elbow Pipe

$

$

Not available

4

Poulan 530089229

Hose Band

$

$

Not available

5

Poulan 530089436

Wire Clamp

$

$

Not available

6

Poulan 530089225

Flexible Pipe

$

$

Not available

7

Poulan 530089386

Base Pipe

$

$

Not available

8

Stop Switch

$

$

Not available

8

Poulan 530089384

Type 1

$

$

Not available

8

Poulan 530089432

Type 2

$

$

Not available

9

Poulan 530089442

Throttle Lever Ass'y. - Type 2

$

$

Not available

10

Poulan 530089431

Lever Ass'y.

$

$

Not available

11

Poulan 530089443

Wire Bolt

$

$

Not available

12

Poulan 530089444

Washer

$

$

Not available

13

Poulan 530089387

Middle Pipe

$

$

Not available

14

Poulan 530089388

Bend Pipe

$

$

Not available

15

Tube

$

$

Not available

15

Poulan 530089385

Type 1

$

$

Not available

15

Poulan 530089433

Type 2

$

$

Not available

16

Poulan 530089230

Wire Band

$

$

Not available

17

Poulan 530089380

Throttle Lever

$

$

Not available

18

Poulan 530089372

Stay

$

$

Not available

19

Poulan 530089383

Washer

$

$

Not available

20

Poulan 530089382

Lockwasher

$

$

Not available

21

Poulan 530089381

Nut

$

$

Not available

22

Poulan 530089379

Screw

$

$

Not available

23

Poulan 530089375

Bolt

$

$

Not available

24

Poulan 530089373

Spacer

$

$

Not available

25

Poulan 530089374

O-Ring

$

$

Not available

26

Poulan 530089371

Stay

$

$

Not available

27

Poulan 530089378

Washer

$

$

Not available

28

Poulan 530089377

Lockwasher

$

$

Not available

29

Poulan 530089376

Nut

$

$

Not available

30

Poulan 530089370

Throttle Lever Ass'y. - Type 1

Note: (Incl.25-29)

$

$

Not available
