PP 446 E - Poulan Pro Pole Saw, Type 1 Oil Tank & Bar Clamp Type 1, 2 Parts Diagram

Pole Saw, Type 1

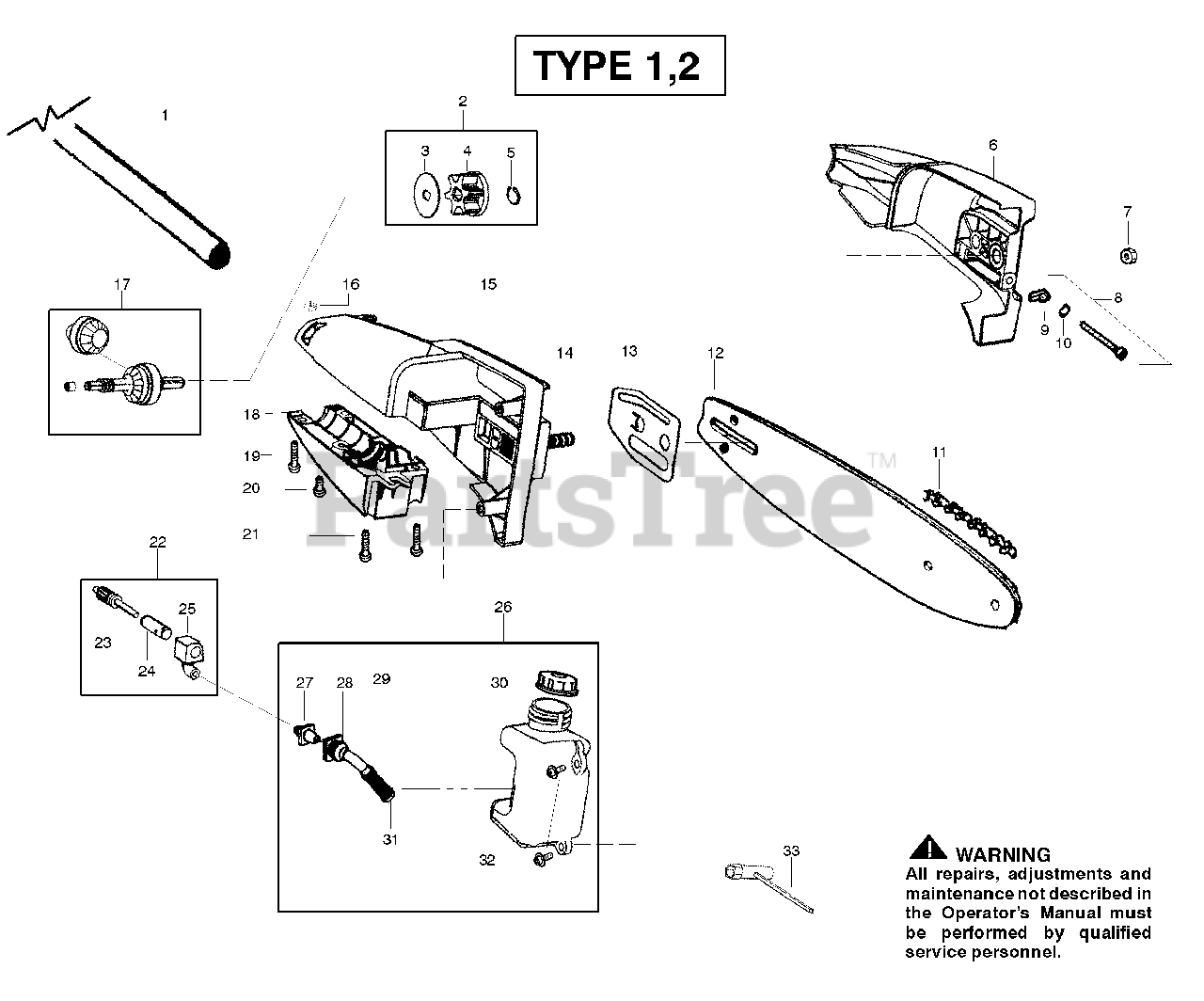

Oil Tank & Bar Clamp Type 1, 2 Parts Diagram

  • Title

1

Poulan 545008090

Assy-Driveshaft

$48.99

$

Usually ships in 3-10 days

0

2

Poulan 530071647

Kit-Sprocket Assy.

Note: (incl. 3,4,5)

$17.99

$

Usually ships in 3-10 days

0

3

Poulan 530056521

Washer

$4.99

$

In Stock, only 4 left!

0

4

Poulan 530056520

Sprocket

$9.99

$

In Stock, only 1 left!

0

5

Poulan 530056563

Retainer-Sprocket

$6.49

$

In Stock, only 1 left!

0

6

Poulan 530057100

Assy-Bar Clamp

Note: (incl. #8)

$

$

Not available

7

Poulan 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 20+

0

8

Poulan 530069611

Kit-Bar Adjust

Note: (incl. 9,10)

$4.99

$

In Stock, Qty 20+

0

9

Poulan 530015826

Pin-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

10

Poulan 530038593

Retainer-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

11

Poulan 952051549

Accy-Chain-8"
(Superseded to 581562501)

$18.99

$

In Stock, Qty 10

0

12

Poulan 530044908

Bar-8"

$

$

Not available

13

Poulan 530056523

Plate-Bar pad

$4.99

$

In Stock, only 2 left!

0

14

Poulan 530016133

Bolt-Bar

$6.49

$

In Stock, only 4 left!

0

15

Poulan 530056513

Hsg. -Upper

Note: (incl. #14)

$

$

Not available

16

Poulan 530016284

Nut

$4.99

$

In Stock, only 4 left!

0

17

Poulan 530071646

Kit-Gear Assy

$37.99

$

In Stock, only 1 left!

0

18

Poulan 530056514

Hsg.-Lower

$

$

Not available

19

Poulan 530016312

Screw

$6.49

$

In Stock, Qty 6

0

20

Poulan 530015805

Screw-Align
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

21

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

22

Poulan 530071645

Kit-Oil Assy

Note: (incl. 23,24,25)

$

$

Not available

23

Poulan 530053764

Assy-Gear Plunger

$9.99

$

Usually ships in 3-10 days

0

24

Poulan 530053765

Barrel

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 530056522

Block-Oil

$

$

Not available

26

Poulan 530056528

Assy-Oil Tank
(Superseded to 530150266)

Note: (incl. 27,28,29,30,31)

$26.99

$

In Stock, only 1 left!

0

27

Poulan 530056524

Fitting-Oil Line

$4.99

$

In Stock, only 1 left!

0

28

Poulan 530021160

Intake-Oil Line

$7.49

$

In Stock, only 1 left!

0

29

Poulan 530037821

Filter-Oil
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 530053072

Cap-Oil
(Superseded to 530150552)

$6.49

$

Usually ships in 3-10 days

0

31

Poulan 530030189

Plug-Oil Filter
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

32

Poulan 530015843

Screw

$6.49

$

In Stock, only 2 left!

0

33

Poulan 530031163

Wrench-Bar

$9.99

$

In Stock, Qty 17

0
