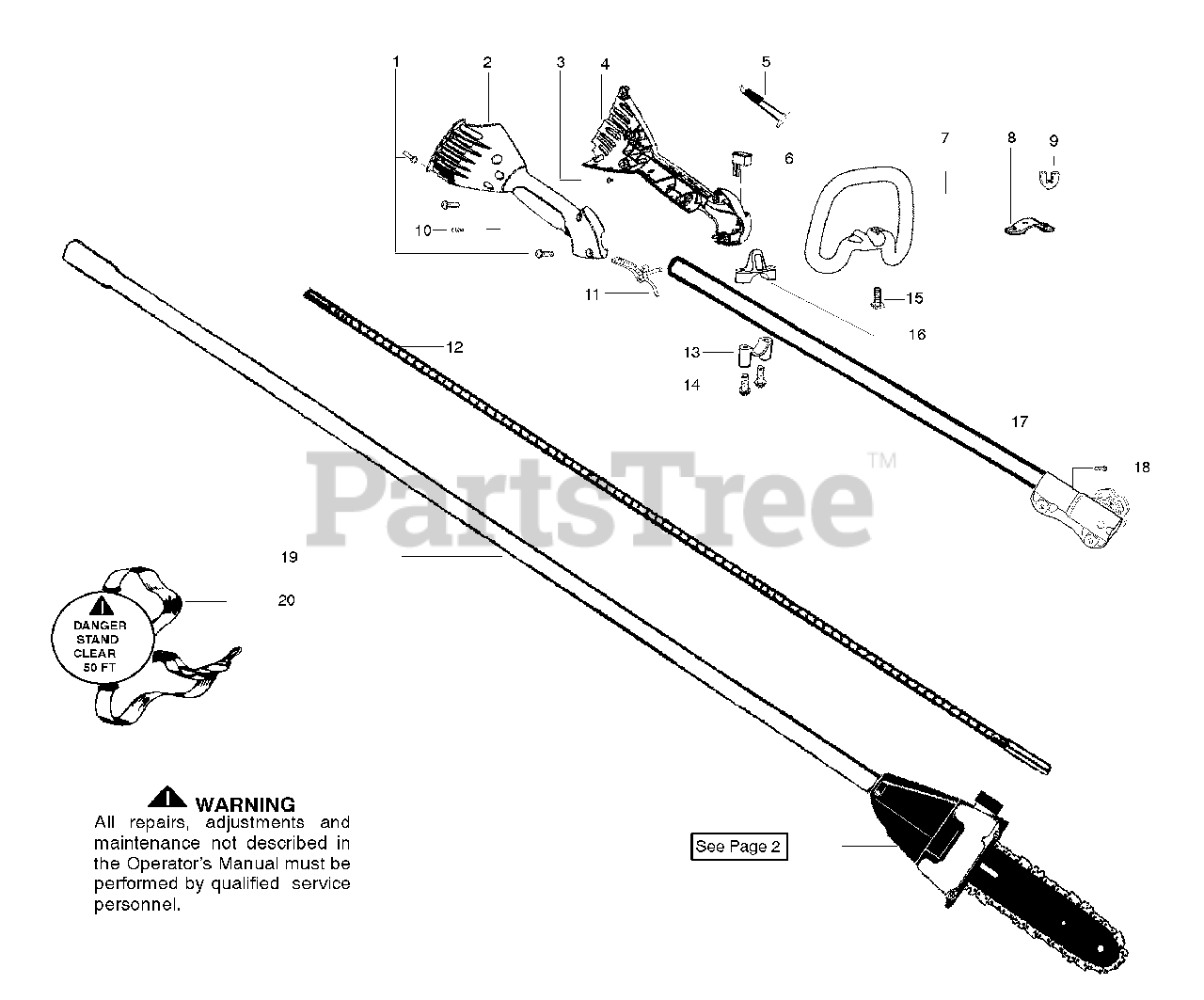

PP 446 - Poulan Pro Pole Saw Handle & Shaft Assembly Parts Diagram

Pole Saw

Handle & Shaft Assembly Parts Diagram

  • Title

1

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

2

Poulan 530057983

Hsg.-Throttle right

$

$

Not available

3

Poulan 530016326

Screw-Cable Ret.

$

$

Not available

4

Poulan 530057984

Hsg.-Throttle left

$9.99

$

Usually ships in 3-10 days

0

5

Poulan 530058843

Assy-Wire

$8.99

$

Usually ships in 3-10 days

0

6

Poulan 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

7

Poulan 530056251

Handle
(Superseded to 530059101)

$9.99

$

Usually ships in 3-10 days

0

8

Poulan 530059185

Clamp-Handle

$6.49

$

In Stock, only 2 left!

0

9

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

10

Poulan 530015805

Screw-Align
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

11

Poulan 530058759

Trigger-Throttle
(Superseded to 545017701)

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 530056570

Flex-Lower

$24.99

$

Usually ships in 3-10 days

0

13

Poulan 530057987

Clamp-Lower

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 530015940

Screw

$6.49

$

In Stock, Qty 9

0

15

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 530057986

Clamp-Upper

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 530071791

Kit-Upper Shaft
(Superseded to 575260201)

$44.99

$

In Stock, only 2 left!

0

18

Poulan 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 545008090

Assy-Driveshaft

$48.99

$

Usually ships in 3-10 days

0

20

Poulan 530094408

Assy-Shoulder Strap
(Superseded to 530094417)

$

$

Not available

Poulan 545123534

Manual

Note: Not Shown

$

$

Not available

Poulan 530056846

Decal- Shaft Lower

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

Poulan 530095894

Att. - Hanger

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

Poulan 530057296

Decal-Upper Shaft

Note: Not Shown

$

$

Not available

Poulan 530031159

Wrench-Hex(5/32)

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0

Poulan 530057369

Decal-Start Inst.

Note: Not Shown

$

$

Not available
