PP 455 - Poulan Pro Chainsaw Chain Brake Assembly Parts Diagram

Chainsaw

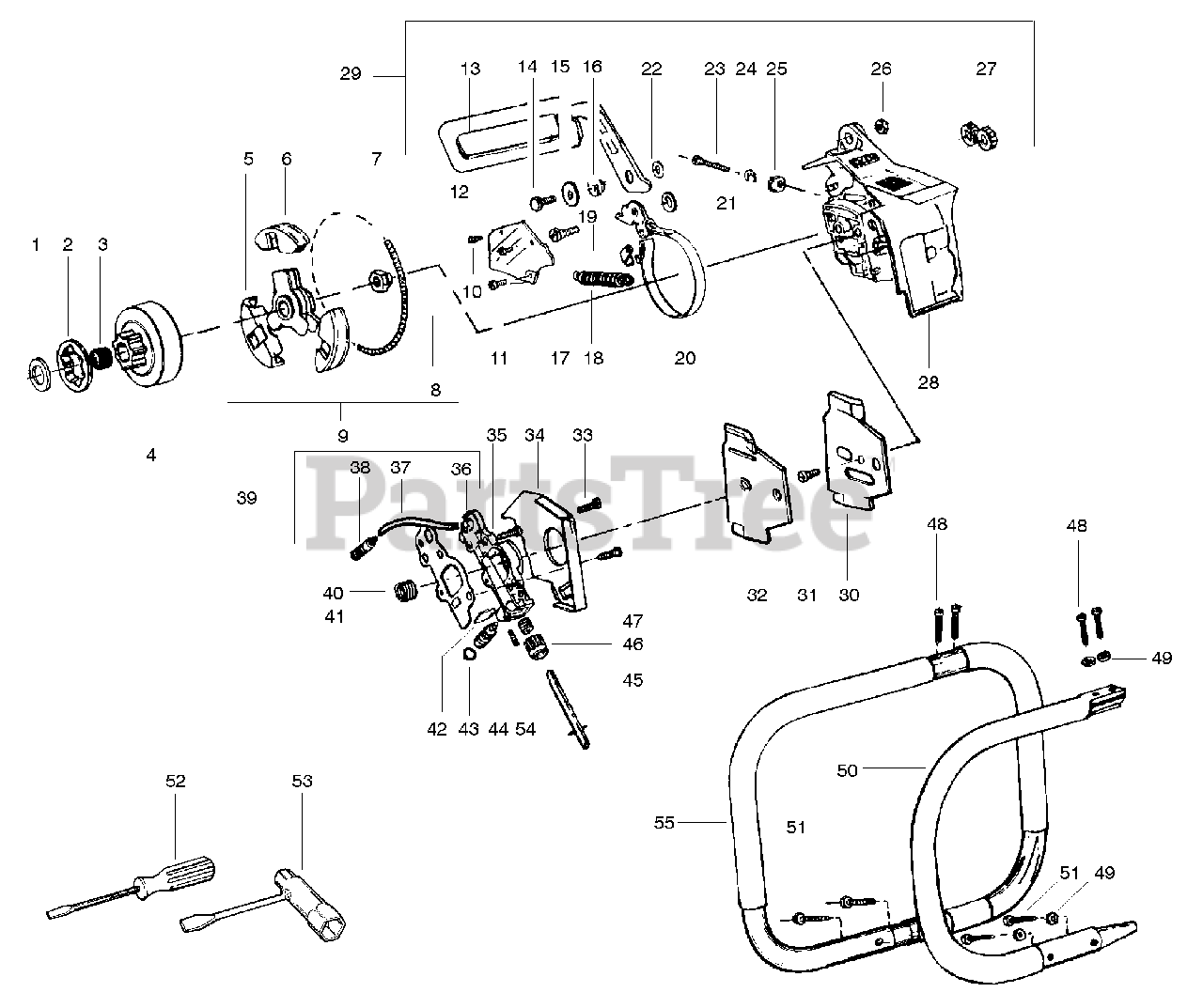

Chain Brake Assembly Parts Diagram

  • Title

1

Poulan 507430848

Thrust Washer

$

$

Not available

2

Poulan 952004746

Rim Sprocket (3/8 7 tooth)

$

$

Not available

3

Poulan 530032049

Bearing

$

$

Not available

4

Poulan 507475081

Clutch Drum

Note: (Incl. 3)

$

$

Not available

5

Poulan 507433102

Clutch Shoe

$

$

Not available

6

Poulan 507433133

Clutch Driver

$21.99

$

Usually ships in 3-10 days

0

7

Poulan 507430800

Nut

$

$

Not available

8

Poulan 507431200

Clutch Spring

$

$

Not available

9

Poulan 507475976

Clutch Ass'y.

Note: (Incl. 5,6 & 8)

$

$

Not available

10

Poulan 507431675

Screw

$1.49

$

Usually ships in 3-10 days

0

11

Poulan 507431673

Screw

$1.49

$

Usually ships in 3-10 days

0

12

Poulan 507476582

Cover

$4.99

$

Usually ships in 3-10 days

0

13

Poulan 50747648618

Kickback Guard Assy.

$

$

Not available

14

Poulan 507431697

Screw

$

$

Not available

15

Poulan 507430930

Washer

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 507433529

Bushing

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 507431036

Shoulder Bolt

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 507433185

Spring

$18.99

$

Usually ships in 3-10 days

0

19

Poulan 507431038

Locking Plate

$

$

Not available

20

Poulan 507476284

Band Ass'y.

$

$

Not available

21

Poulan 507430878

Washer

$2.49

$

Usually ships in 3-10 days

0

22

Poulan 507433532

Washer

$2.49

$

Usually ships in 3-10 days

0

23

Poulan 507432613

Screw

$

$

Not available

24

Poulan 507431636

Retaining Ring

$

$

Not available

25

Poulan 507425672

Pin

$

$

Not available

26

Poulan 507431698

Nut

$

$

Not available

27

Poulan 507433036

Strut Nut

$

$

Not available

28

Poulan 5074762741

Clutch Cover & Tension

$65.99

$

Usually ships in 3-10 days

0

29

Poulan 5074764711

Chain Brake Ass'y.

Note: (Incl. 10-27)

$

$

Not available

30

Poulan 507433109

Guide Plate-Outer

$

$

Not available

31

Poulan 507429266

Terminal Screw

$

$

Not available

32

Poulan 507432686

Guide Plate-Inner

$4.99

$

In Stock, only 3 left!

0

33

Poulan 507431642

Screw

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 507431596

Dirt Shield

$

$

Not available

35

Poulan 507431669

Screw

$

$

Not available

36

Poulan 507476534

Oil Pump Ass'y.

$46.99

$

Usually ships in 3-10 days

0

37

Poulan 507430227

Hose

$

$

Not available

38

Poulan 507474959

Oil Pickup Ass'y.

$

$

Not available

39

Poulan 507476535

Oil Pump Ass'y.

Note: (Incl. 36-38)

$

$

Not available

40

Poulan 507430231

Wire Worm

$4.99

$

Usually ships in 3-10 days

0

41

Poulan 507430228

Gasket

$

$

Not available

42

Poulan 507430229

Seal

$

$

Not available

43

Poulan 507431359

O-Ring

$2.49

$

Usually ships in 3-10 days

0

44

Poulan 507430385

Adjusting Screw

$4.99

$

Usually ships in 3-10 days

0

45

Poulan 507474932

Plunger Ass'y.

$

$

Not available

46

Poulan 507430880

Gear

$

$

Not available

47

Poulan 507431221

Plunger Spring

$

$

Not available

48

Poulan 507433184

Screw

$

$

Not available

49

Poulan 507431706

Washer

$

$

Not available

50

Poulan 50747620018

Front Handle Kit

$

$

Not available

51

Poulan 507431687

Screw

$1.49

$

Usually ships in 3-10 days

0

52

Poulan 507431247

Screwdriver

$

$

Not available

53

Poulan 530031146

Combination T Wrench
(Superseded to 545006011)

$

$

Not available

54

Poulan 507431699

Roll Pin

$2.49

$

Usually ships in 3-10 days

0

55

Poulan 507476193

Front Handle Full Wrap

$

$

Not available

55

Poulan 507433461

Kickback Decal

Note: Not Shown

$

$

Not available

55

Poulan 507433712

Side Decal

Note: Not Shown

$

$

Not available

55

Poulan 507432836

Brake Decal

Note: Not Shown

$

$

Not available
