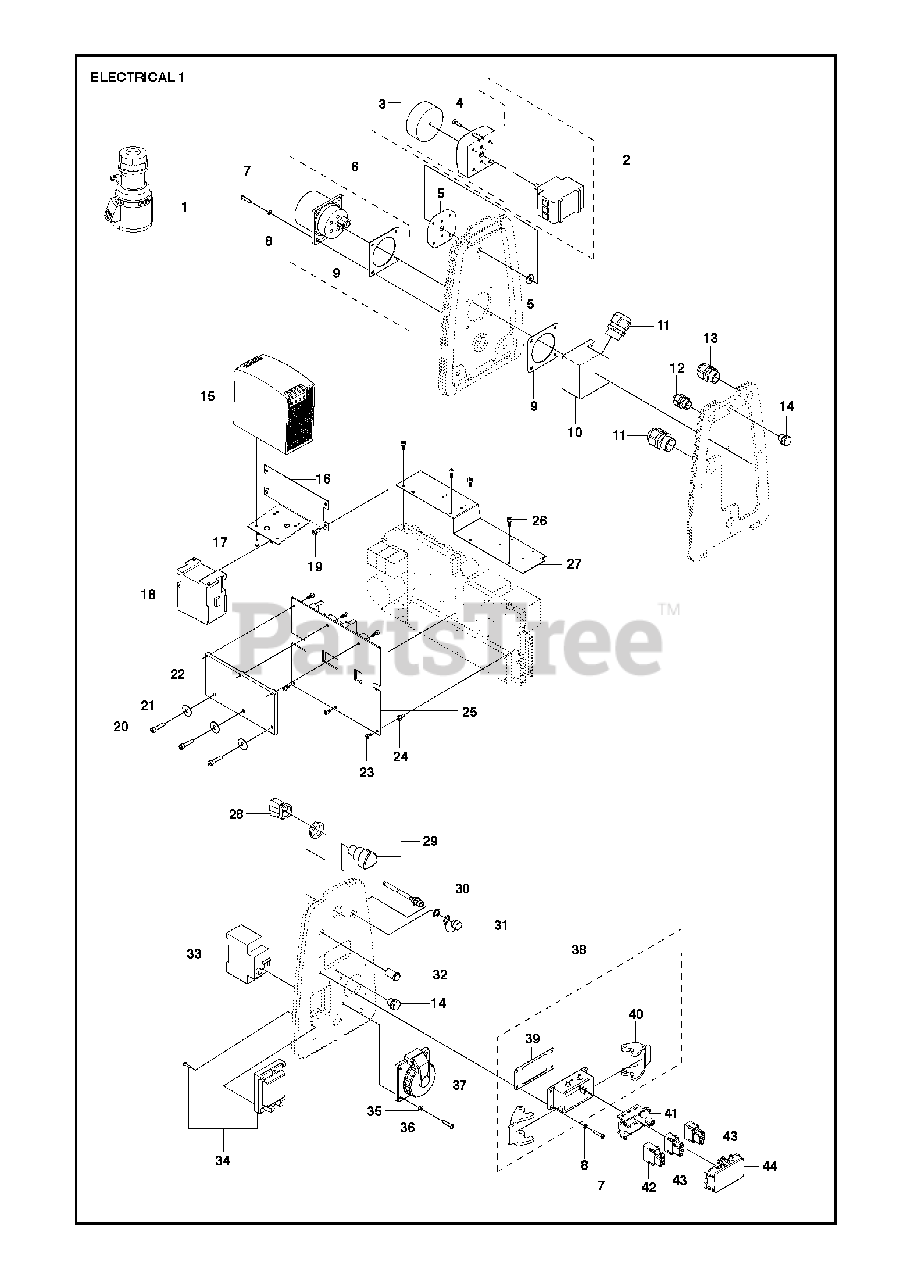

PP 480 - Husqvarna Hydraulic Power Pack (SN: 20134402530 & Above) (2013-11) ELECTRICAL Parts Diagram

Hydraulic Power Pack

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna Construction 531 11 71-31

SOCKET

$107.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 505 52 64-01

SWITCHIncl. 3-4

$205.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 585 56 95-01

KNOBIncl. 4

$69.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 585 57 45-01

SCREW

$1.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 505 52 62-01

GASKET KIT

$31.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 531 11 71-52

HOLDERIncl. 9

$70.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 575 61 74-02

SCREW

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 734 11 35-71

WASHER

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 578 31 05-01

SEALING

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 531 12 34-09

CAP

$409.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 505 52 69-03

CABLE GROMMET

$24.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 505 52 69-01

CABLE GROMMET

$16.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 505 52 69-02

CABLE GROMMET

$9.16

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 505 52 84-01

VALVE

$35.99

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 505 52 74-01

TRANSFORMER

$1520.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 581 48 65-02

ANGLE BRACKET

$84.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 531 11 95-86

SCREW

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 531 11 72-22

CONTACTOR

$436.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 531 11 93-89

SCREW

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 725 53 31-01

SCREW IHSCM

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna Construction 531 11 92-60

WASHER

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna Construction 531 12 33-62

PLATE

$162.99

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 505 52 83-01

SCREW

$2.99

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 505 52 82-01

SPACER

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna Construction 579 65 78-02

PRINTED CIRCUIT ASSY

$1055.43

$

Usually ships in 3-10 days

0

26

Husqvarna Construction 531 11 92-08

SCREW

$3.99

$

In Stock, only 1 left!

0

27

Husqvarna Construction 522 52 50-01

ATTACHMENT PLATE

$98.99

$

Usually ships in 3-10 days

0

28

Husqvarna Construction 531 11 72-05

CIRCUIT BREAKER

$219.99

$

Usually ships in 3-10 days

0

29

Husqvarna Construction 581 64 53-01

STOP SWITCH

$93.99

$

Usually ships in 3-10 days

0

30

Husqvarna Construction 505 52 77-02

CABLE KIT

$849.99

$

Usually ships in 3-10 days

0

31

Husqvarna Construction 585 47 86-01

RUBBER PLUG

$106.99

$

Usually ships in 3-10 days

0

32

Husqvarna Construction 575 64 71-01

LAMP

$131.99

$

Usually ships in 3-10 days

0

33

Husqvarna Construction 531 11 72-08

GUARDOnly 5-pin

$381.50

$

Usually ships in 3-10 days

0

34

Husqvarna Construction 505 52 67-01

SHUTTEROnly 5-pin

$131.99

$

Usually ships in 3-10 days

0

35

Husqvarna 734 11 46-01

WASHEROnly 5-pin
(Superseded to 819070816)

$6.99

$

In Stock, Qty 14

0

36

Husqvarna Construction 575 61 74-03

SCREWOnly 5-pin

$1.99

$

Usually ships in 3-10 days

0

37

Husqvarna Construction 505 52 68-01

SOCKETOnly 5-pin

$

$

Not available

38

Husqvarna Construction 505 52 92-01

CONTACTIncl. 39 - 40

$205.99

$

Usually ships in 3-10 days

0

39

Husqvarna Construction 575 39 41-01

GASKET

$16.99

$

Usually ships in 3-10 days

0

40

Husqvarna Construction 505 24 70-01

SHACKLE

$74.99

$

Usually ships in 3-10 days

0

41

Husqvarna Construction 505 52 89-01

FRAME

$161.99

$

Usually ships in 3-10 days

0

42

Husqvarna Construction 505 52 88-01

CONSOLE

$176.99

$

Usually ships in 3-10 days

0

43

Husqvarna Construction 505 52 87-01

CONSOLE

$53.99

$

Usually ships in 3-10 days

0

44

Husqvarna Construction 575 33 54-01

COVER

$148.99

$

Usually ships in 3-10 days

0
