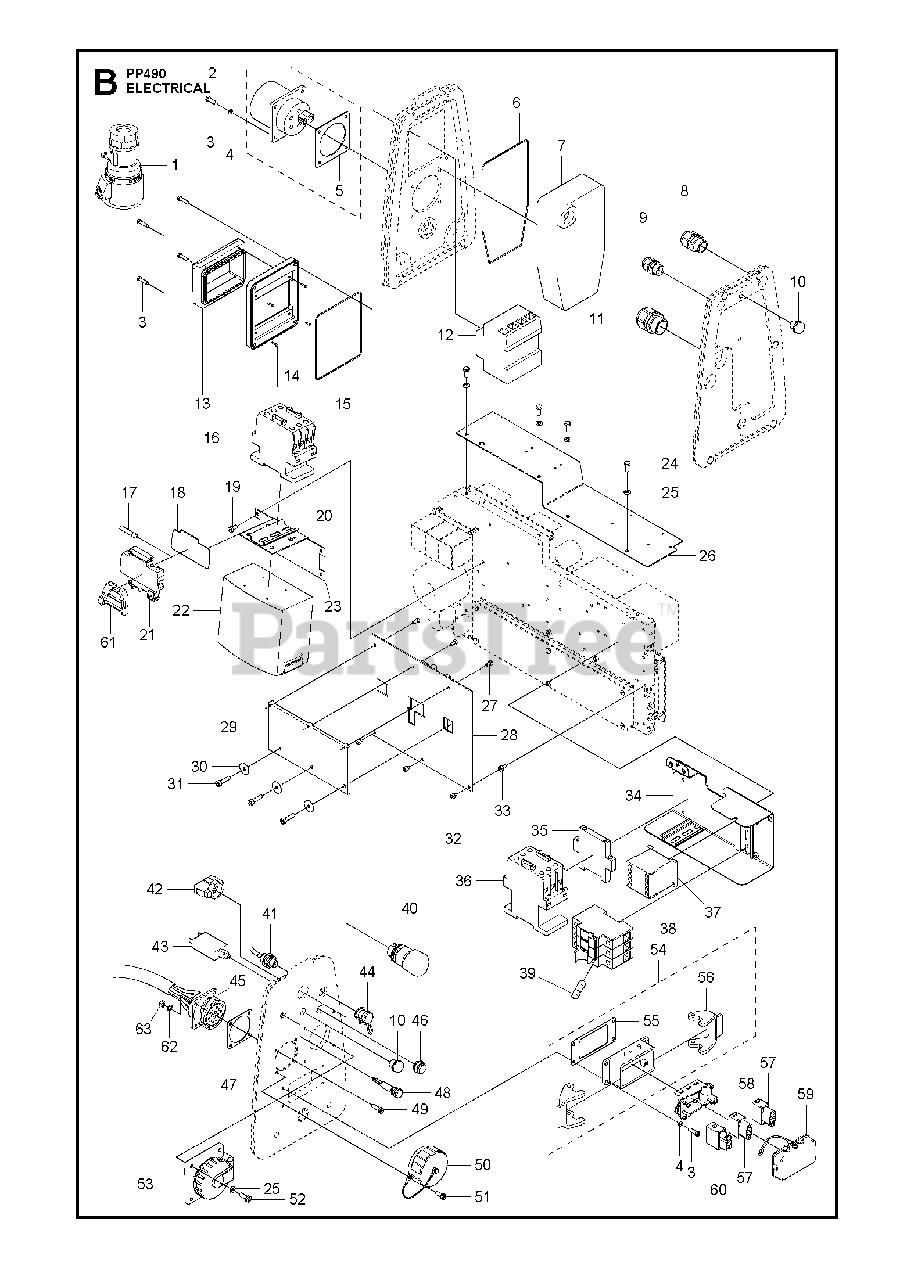

PP 490 - Husqvarna Hydraulic Power Pack (2016-01) ELECTRICAL Parts Diagram

Hydraulic Power Pack

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna Construction 531 11 71-31

SOCKET

$100.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 531 11 71-52

HOLDER

$65.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 575 61 74-02

SCREW

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 734 11 35-71

WASHER

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 578 31 05-01

SEALING

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 501 52 58-01

O-RING

$

$

Not available

7

Husqvarna Construction 587 00 55-01

ELECTRIC BOX

$569.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 505 52 69-02

CABLE GROMMET

$9.16

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 505 52 69-01

CABLE GROMMET

$15.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 505 52 84-01

VALVE

$33.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 505 52 69-03

CABLE GROMMET

$23.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 577 24 36-01

SWITCH

$1116.50

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 587 00 57-01

LID

$136.50

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 587 00 56-01

COVER

$130.67

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 501 52 51-01

O-RING

$

$

Not available

16

Husqvarna Construction 588 26 19-02

CONTACTOR

$378.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 588 26 27-01

FUSE

$41.99

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 588 26 28-01

PLATE

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 531 11 93-89

SCREW

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 531 11 95-86

SCREW

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna Construction 588 26 26-01

FUSE HOLDER

$104.99

$

Usually ships in 3-10 days

0

22

Husqvarna Construction 588 26 24-01

TRANSFORMER

$2278.99

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 581 48 65-02

ANGLE BRACKET

$79.99

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 531 11 92-08

SCREW

$3.99

$

In Stock, Qty 7

0

25

Husqvarna 734 11 46-01

WASHER
(Superseded to 819070816)

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna Construction 522 52 50-01

ATTACHMENT PLATE

$92.99

$

Usually ships in 3-10 days

0

27

Husqvarna Construction 531 11 93-88

SCREW

$1.99

$

Usually ships in 3-10 days

0

28

Husqvarna Construction 588 49 76-01

PRINTED CIRCUIT

$1380.17

$

Usually ships in 3-10 days

0

29

Husqvarna Construction 531 12 33-62

PLATE

$152.99

$

Usually ships in 3-10 days

0

30

Husqvarna Construction 531 11 92-60

WASHER

$6.99

$

Usually ships in 3-10 days

0

31

Husqvarna 725 53 31-01

SCREW IHSCM

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna Construction 505 52 83-01

SCREW

$2.99

$

Usually ships in 3-10 days

0

33

Husqvarna Construction 505 52 82-01

SPACER

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna Construction 587 02 32-01

ANGLE BRACKET

$178.50

$

Usually ships in 3-10 days

0

35

Husqvarna Construction 588 26 25-01

INTERLOCK SWITCH

$69.99

$

Usually ships in 3-10 days

0

36

Husqvarna Construction 588 26 19-01

CONTACTOR

$417.99

$

Usually ships in 3-10 days

0

37

Husqvarna Construction 588 26 20-01

CONTACTOR

$115.99

$

Usually ships in 3-10 days

0

38

Husqvarna Construction 588 26 22-01

FUSE HOLDER

$44.99

$

Usually ships in 3-10 days

0

39

Husqvarna Construction 588 26 23-01

FUSE

$111.99

$

Usually ships in 3-10 days

0

40

Husqvarna Construction 581 64 53-01

STOP SWITCH

$87.99

$

Usually ships in 3-10 days

0

41

Husqvarna Construction 505 52 77-02

CABLE KIT

$796.99

$

Usually ships in 3-10 days

0

42

Husqvarna Construction 531 11 72-05

CIRCUIT BREAKER

$205.99

$

Usually ships in 3-10 days

0

43

Husqvarna Construction 588 26 29-01

FUSE

$49.99

$

Usually ships in 3-10 days

0

44

Husqvarna Construction 585 47 86-01

RUBBER PLUG

$99.99

$

Usually ships in 3-10 days

0

45

Husqvarna Construction 587 02 87-01

CABLE ASSY

$811.99

$

Usually ships in 3-10 days

0

46

Husqvarna Construction 588 26 43-01

PROTECTIVE CAP

$87.99

$

Usually ships in 3-10 days

0

47

Husqvarna Construction 525 73 45-01

SEALING

$8.49

$

Usually ships in 3-10 days

0

48

Husqvarna Construction 575 64 71-01

LAMP

$123.99

$

Usually ships in 3-10 days

0

49

Husqvarna Construction 531 11 92-50

SCREW

$2.63

$

Usually ships in 3-10 days

0

50

Husqvarna Construction 525 73 44-01

LID

$138.99

$

Usually ships in 3-10 days

0

51

Husqvarna Construction 531 11 92-51

SCREW

$

$

Not available

52

Husqvarna Construction 575 61 74-03

SCREW

$1.99

$

Usually ships in 3-10 days

0

53

Husqvarna Construction 505 52 68-01

SOCKET

$

$

Not available

54

Husqvarna Construction 505 52 92-01

CONTACT

$191.99

$

Usually ships in 3-10 days

0

55

Husqvarna Construction 575 39 41-01

GASKET

$15.99

$

Usually ships in 3-10 days

0

56

Husqvarna Construction 505 24 70-01

SHACKLE

$69.99

$

Usually ships in 3-10 days

0

57

Husqvarna Construction 505 52 87-01

CONSOLE

$49.99

$

Usually ships in 3-10 days

0

58

Husqvarna Construction 505 52 89-01

FRAME

$150.99

$

Usually ships in 3-10 days

0

59

Husqvarna Construction 575 33 54-01

COVER

$137.99

$

Usually ships in 3-10 days

0

60

Husqvarna Construction 505 52 88-01

CONSOLE

$165.99

$

Usually ships in 3-10 days

0

61

Husqvarna Construction 531 11 71-74

SUPPORT

$6.99

$

Usually ships in 3-10 days

0

62

Husqvarna Construction 735 21 46-01

LOCKWASHER

$1.99

$

Usually ships in 3-10 days

0

63

Husqvarna 731 23 14-01

HEXAGON NUT

$2.49

$

In Stock, Qty 13

0
