PP 525 - Poulan Pro Chainsaw CLUTCH Parts Diagram

Chainsaw

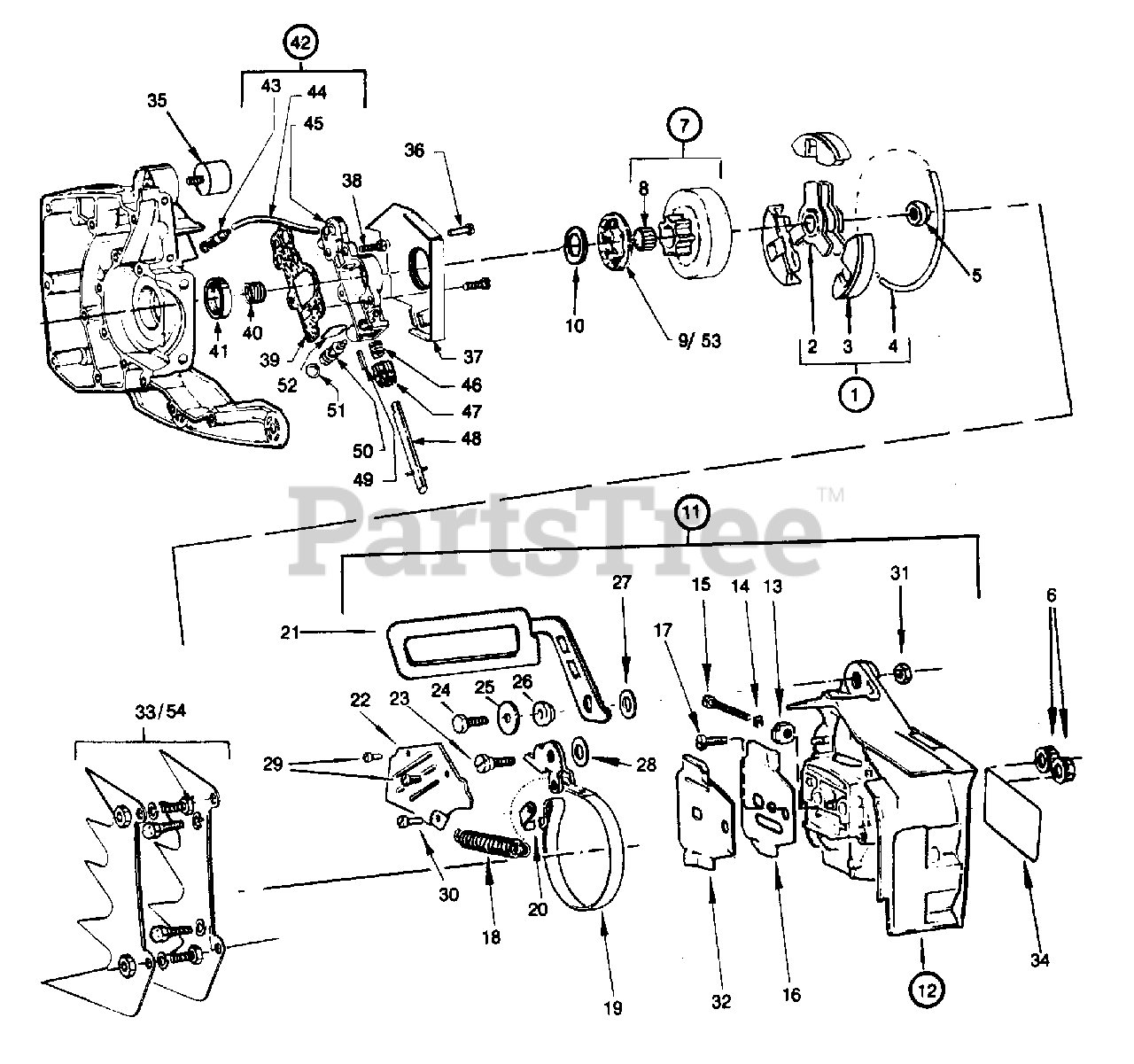

CLUTCH Parts Diagram

  • Title

1

Poulan 507475976

Clutch Assy

$

$

Not available

2

Poulan 507433133

Clutch Driver

$21.99

$

Usually ships in 3-10 days

0

3

Poulan 507433102

Clutch Shoe (Wide)

$

$

Not available

4

Poulan 507431200

Clutch Spring

$

$

Not available

5

Poulan 507430800

Nut

$

$

Not available

6

Poulan 507433036

Strut Nut

$

$

Not available

7

Poulan 507475081

Clutch Drum & Bearing

$

$

Not available

8

Poulan 507430743

Bearing

$

$

Not available

9

Poulan 507429956

3/8 7T Rim Segment

$

$

Not available

10

Poulan 507430848

Thrust Washer

$

$

Not available

11

Poulan 5074764121

Brake Assy Complete

$

$

Not available

12

Poulan 5074762761

Clutch Cover & Tensioner

$60.99

$

Usually ships in 3-10 days

0

13

Poulan 507425672

Pin

$

$

Not available

14

Poulan 507431636

Retaining Ring

$

$

Not available

15

Poulan 507432613

Screw - Chain Tension

$

$

Not available

16

Poulan 507433109

Guide Plate (Outer)

$

$

Not available

17

Poulan 507429266

Terminal Screw

$

$

Not available

18

Poulan 507433185

Spring Chain Brake (White)

$18.99

$

Usually ships in 3-10 days

0

19

Poulan 507476284

Cam/Band Assy

$

$

Not available

20

Poulan 507431038

Locking Plate

$

$

Not available

21

Poulan 50747648618

Kickback Guard Assy

$

$

Not available

22

Poulan 507476583

Cover Assy

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 507431036

Shoulder Bolt

$6.49

$

Usually ships in 3-10 days

0

24

Poulan 507431716

Screw 1/4 - 20 X 1

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 507430930

Washer - Lever

$3.99

$

Usually ships in 3-10 days

0

26

Poulan 507433529

Bushing

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 507433532

Washer

$2.49

$

Usually ships in 3-10 days

0

28

Poulan 507430878

Washer

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 507431675

Screw 10 - 24 X 2

$1.49

$

Usually ships in 3-10 days

0

30

Poulan 507431673

Screw 10 - 24 X 3/8

$1.49

$

Usually ships in 3-10 days

0

31

Poulan 507431698

Nut

$

$

Not available

32

Poulan 507432686

Inner Guide Plate

$4.99

$

In Stock, only 3 left!

0

33

Poulan 507476072

Pivot Grip Kit (2/Kit)

$

$

Not available

34

Poulan 507433712

Side Decal - Poulan Pro

$

$

Not available

35

Poulan 507430197

Shock Absorber

$

$

Not available

36

Poulan 507431642

Screw 10 - 24 X 1

$2.49

$

Usually ships in 3-10 days

0

37

Poulan 507431317

Dirt Shield

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 507431669

Screw 10 - 24 X 3/4

$

$

Not available

39

Poulan 507430228

Gasket - Oil Pump

$

$

Not available

40

Poulan 507430231

Wire Worm

$4.99

$

Usually ships in 3-10 days

0

41

Poulan 507428746

Seal

$

$

Not available

42

Poulan 507476536

Oil Pump Assy Complete

$

$

Not available

43

Poulan 507474959

Oil Pickup Assy

$

$

Not available

44

Poulan 507430640

Inlet tube

$

$

Not available

45

Poulan 507476534

Oil Pump Body

$46.99

$

Usually ships in 3-10 days

0

46

Poulan 507431221

Plunger Spring

$

$

Not available

47

Poulan 507430880

Gear - Oil Pump

$

$

Not available

48

Poulan 507474932

Plunger Assy

$

$

Not available

49

Poulan 507431699

Roll Pin

$2.49

$

Usually ships in 3-10 days

0

50

Poulan 507433242

Adj. Screw

$

$

Not available

51

Poulan 507431359

O-Ring

$2.49

$

Usually ships in 3-10 days

0

52

Poulan 507430229

Seal - Oil Pump

$

$

Not available

53

Poulan 507429957

Rim (404 - 7T)

$

$

Not available

54

Poulan 507476079

Pivot Grip Kit (H)

$

$

Not available
