PP 525 - Poulan Pro Chainsaw POWER UNIT Parts Diagram

Chainsaw

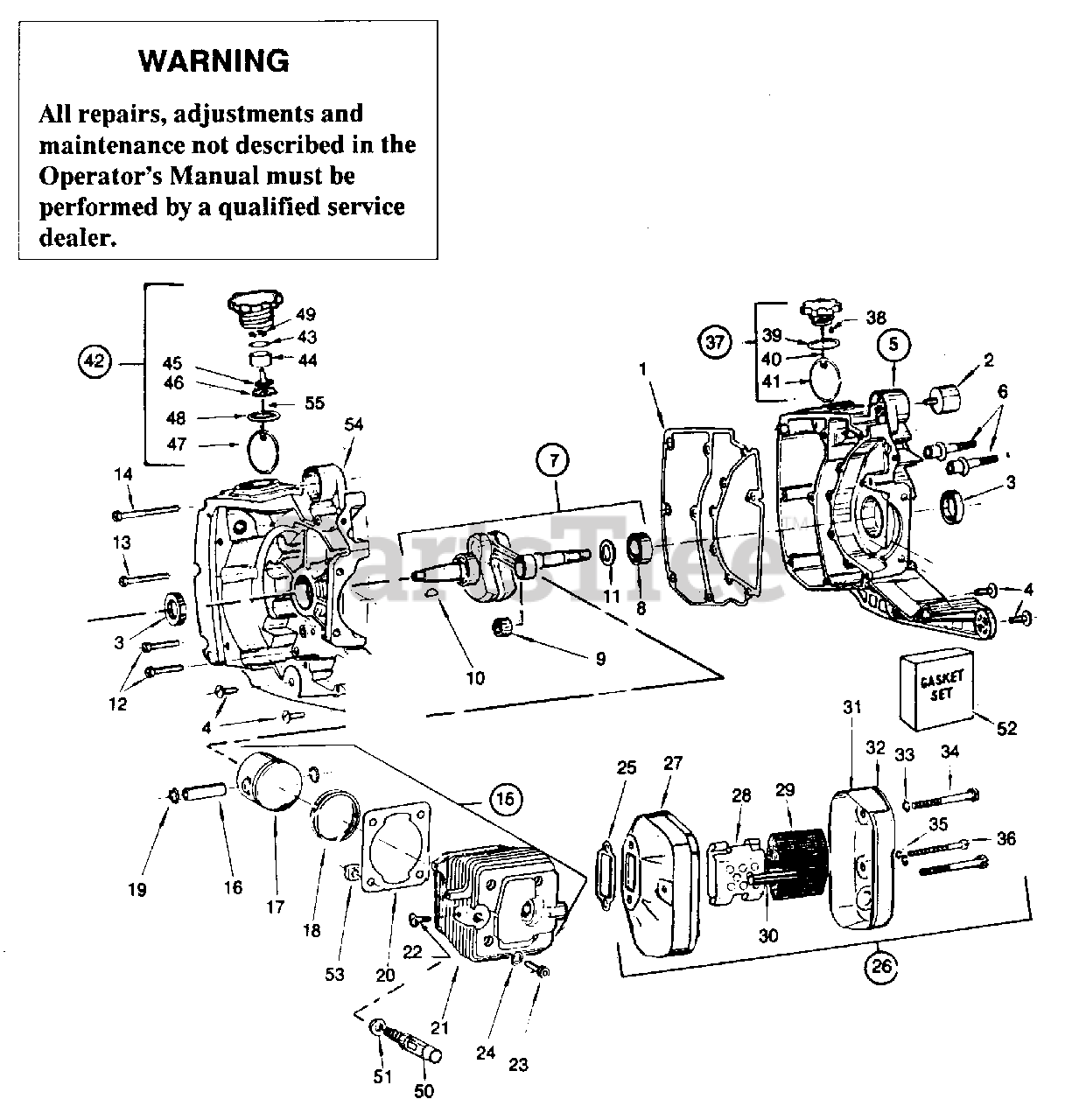

POWER UNIT Parts Diagram

  • Title

1

Poulan 507430573

C'Case Gasket

$

$

Not available

2

Poulan 507430197

Shock Absorber

$

$

Not available

3

Poulan 507428746

Seal

$

$

Not available

4

Poulan 507432634

Screw - Shock Mount

$

$

Not available

5

Poulan 5074762101

Crankcase & Stud Assy

$

$

Not available

6

Poulan 507433228

Bar Mounting Studs

$

$

Not available

7

Poulan 507475422

C'Shaft Assy

$

$

Not available

8

Poulan 507432536

Main Bearing

$

$

Not available

9

Poulan 507430743

Bearing

$

$

Not available

10

Poulan 507432210

Flywheel Key (Machined)

$

$

Not available

11

Poulan 507430913

Thrust Washer

$

$

Not available

12

Poulan 507431650

Screw 10 - 24 X 1 1/4

$

$

Not available

13

Poulan 507431690

Screw 10 - 24 X 2 1/4

$

$

Not available

14

Poulan 507431658

Screw 10 - 24 X 2 1/2

$3.49

$

In Stock, only 1 left!

0

15

Poulan 507476293

Cyl./Piston/Ring Set

$

$

Not available

16

Poulan 507433221J

Wrist Pin

$

$

Not available

17

Poulan 507475398J

Piston

$66.99

$

Usually ships in 3-10 days

0

18

Poulan 507474590

Piston / Ring Set

$

$

Not available

19

Poulan 507428781

Retainer - Wrist Pin

$

$

Not available

20

Poulan 507433226

Cylinder Base Gasket

$

$

Not available

21

Poulan 507433323

Cylinder

$

$

Not available

22

Poulan 507429928

Plate Screw

$

$

Not available

23

Poulan 507431691

Screw 1/4 - 28 X 1

$

$

Not available

24

Poulan 507431706

Washer

$

$

Not available

25

Poulan 507430684

Muffler Gasket

$

$

Not available

26

Poulan 5074760748

Muffler Assy

$

$

Not available

27

Poulan 5074759848

Muffler Body

$

$

Not available

28

Poulan 507433096

Muffler Channel (2 Req'd)

$5.99

$

In Stock, only 1 left!

0

29

Poulan 507433104

Muffler Screen

$

$

Not available

30

Poulan 507430835

Spacer

$

$

Not available

31

Poulan 5074764298

Muffler Cover
(Superseded to 545145415)

$

$

Not available

32

Poulan 5074761068

Heat Shield Assy

$13.99

$

Usually ships in 3-10 days

0

33

Poulan 507431686

Lockwasher

$

$

Not available

34

Poulan 507430992

Screw - Muffler

$

$

Not available

35

Poulan 507431683

Lockwasher

$

$

Not available

36

Poulan 507430993

Screw

$

$

Not available

37

Poulan 50747516818

Oil Cap Assy (Grey)

$

$

Not available

38

Poulan 507428335

Screw

$

$

Not available

39

Poulan 507433143

O-Ring Oil Cap

$

$

Not available

40

Poulan 507427690

Bead Chain (Oil Cap)

$

$

Not available

41

Poulan 507431369

Retainer - Oil Cap

$

$

Not available

42

Poulan 50747516718

Gas Cap Assy (Grey)

$

$

Not available

43

Poulan 507427273

Gasket

$

$

Not available

44

Poulan 507431003

Spacer

$

$

Not available

45

Poulan 507431702

Umbrella Valve

$

$

Not available

46

Poulan 507427278

Cover Gas Cap

$

$

Not available

47

Poulan 507431368

Retainer - Gas Cap

$

$

Not available

48

Poulan 507429946

Gas Cap O-Ring

$

$

Not available

49

Poulan 507427993

Disc

$

$

Not available

50

Poulan 50747535618

Decompression Valve (Grey)

$

$

Not available

51

Poulan 507432302

Washer

$3.49

$

In Stock, only 1 left!

0

52

Poulan 507475492

Gasket Set

$

$

Not available

53

Poulan 507431655

Nut

$

$

Not available

54

Poulan 5074332271

C'Case Half M/S/ (Gold)

$100.99

$

Usually ships in 3-10 days

0

55

Poulan 507431370

Bead Chain Gas Cap

$

$

Not available
