PP 525 - Poulan Pro Chainsaw STARTER & SHROUD Parts Diagram

Chainsaw

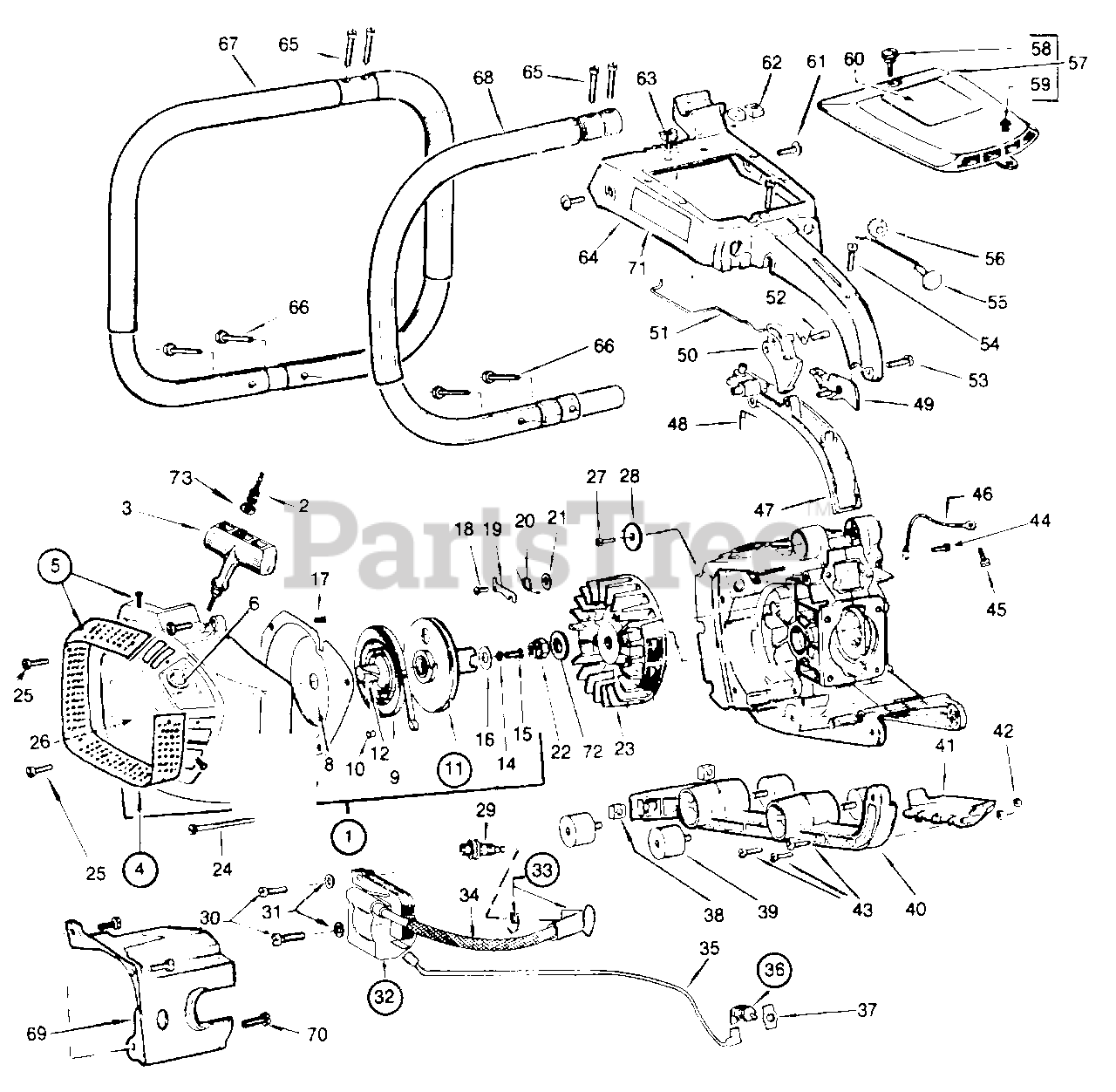

STARTER & SHROUD Parts Diagram

  • Title

1

Poulan 5074754391

Starter Assy Complete (Gold)

$

$

Not available

2

Poulan 507426752

Starter Cord

$

$

Not available

3

Poulan 50743144118

Starter Handle

$

$

Not available

4

Poulan 5074745391

Starter Cover Assy (Gold)

$

$

Not available

5

Poulan 507475583

Blower Cover Screen

$

$

Not available

6

Poulan 507430716

Eyelet

$

$

Not available

7

Poulan 507430576

Baffle

$12.99

$

Usually ships in 3-10 days

0

8

Poulan 507430812

Washer

$

$

Not available

9

Poulan 507431325

Rewind Spring (Bridle Type)

$12.99

$

Usually ships in 3-10 days

0

10

Poulan 507431004

Bushing - Starter Spring

$

$

Not available

11

Poulan 507476135

Starter Pulley

$

$

Not available

12

Poulan 507428444

Starter Bushing

$

$

Not available

14

Poulan 507431692

Lockwasher

$1.49

$

In Stock, only 1 left!

0

15

Poulan 507431694

Screw

$2.49

$

Usually ships in 3-10 days

0

16

Poulan 507428105

Washer

$3.99

$

In Stock, only 1 left!

0

17

Poulan 507431695

Screw 1/4 - 20 X 1/2.

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 507430877

Pawl Pivot

$

$

Not available

19

Poulan 507430876

Pawl

$

$

Not available

20

Poulan 507431416

Pawl Spring

$3.99

$

In Stock, only 1 left!

0

21

Poulan 507430878

Washer

$2.49

$

Usually ships in 3-10 days

0

22

Poulan 507430800

Nut

$

$

Not available

23

Poulan 507433294

Flywheel

$54.99

$

Usually ships in 3-10 days

0

24

Poulan 507433159

Screw - Hex Head

$

$

Not available

25

Poulan 507433158

Screw - Hex Head

$3.99

$

Usually ships in 3-10 days

0

26

Poulan 507433712

Side Decal - Poulan Pro

$

$

Not available

27

Poulan 507432930

Screw - Guard/Cover

$

$

Not available

28

Poulan 507433488

Washer

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 507431614

Spark Plug

$

$

Not available

30

Poulan 507433611

Screw #8

$

$

Not available

31

Poulan 507431640

Washer - #8

$

$

Not available

32

Poulan 507476339

Module & Switch Wire Assy

$

$

Not available

33

Poulan 507476096

Spark Plug Boot & Clip

$

$

Not available

34

Poulan 507430694

Sleeve

$

$

Not available

35

Poulan 507433248

Switch Wire - Module Switch

$

$

Not available

36

Poulan 507475623

Grounding Switch

$

$

Not available

37

Poulan 507432916

Switch Plate

$

$

Not available

38

Poulan 507431655

Nut

$

$

Not available

39

Poulan 507430197

Shock Absorber

$

$

Not available

40

Poulan 50743057518

Bottom Frame (Grey)

$

$

Not available

41

Poulan 50743240418

Rear Hand Guard (Grey)

$

$

Not available

42

Poulan 507431078

Nut

$2.49

$

Usually ships in 3-10 days

0

43

Poulan 507431685

Screw 8 - 32 X 1

$

$

Not available

44

Poulan 507429928

Plate Screw

$

$

Not available

45

Poulan 507429266

Terminal Screw

$

$

Not available

46

Poulan 507430990

Ground Wire

$2.49

$

Usually ships in 3-10 days

0

47

Poulan 50747393518

Lower Grip Assy (Grey)

$

$

Not available

48

Poulan 507431092

Spring - Throttle Trigger
(Superseded to 507433052)

$

$

Not available

49

Poulan 5074308401

Throttle Lockout Lever (Gold)

$1.99

$

Usually ships in 3-10 days

0

50

Poulan 5074303271

Throttle Trigger (Gold)

$

$

Not available

51

Poulan 507430830

Throttle Link

$

$

Not available

52

Poulan 507430399

Throttle Pin

$1.49

$

In Stock, only 1 left!

0

53

Poulan 507430887

Screw

$1.49

$

Usually ships in 3-10 days

0

54

Poulan 507431705

Screw - Lwr Grip

$1.49

$

Usually ships in 3-10 days

0

55

Poulan 50743020219

Choke Knob & Wire Assy

$

$

Not available

56

Poulan 507429650

Grommet

$

$

Not available

57

Poulan 50747572118

Top Cover Assy (Grey)

$

$

Not available

58

Poulan 507432817

Knob Cover Knob-Knurled

$

$

Not available

59

Poulan 507430282

Bumper

$

$

Not available

60

Poulan 507433724

Decal - Top Cover

$

$

Not available

61

Poulan 507432634

Screw - Shock Mount

$

$

Not available

62

Poulan 507431655

Nut

$

$

Not available

63

Poulan 507430203

Nut

$2.49

$

Usually ships in 3-10 days

0

64

Poulan 50743117418

Top Framer - Man. Oiler (Grey)

$

$

Not available

65

Poulan 507433184

Screw Handle 1/4 - 28 X 1/8

$

$

Not available

67

Poulan 50747648518

Front Handle - Full Wrap

$

$

Not available

68

Poulan 50747648418

Front Handle - Half Wrap

$56.99

$

Usually ships in 3-10 days

0

69

Poulan 50743233718

Cylinder Shroud (Grey)

$

$

Not available

70

Poulan 507431649

Screw 10 - 24 X 5/8

$

$

Not available

71

Poulan 507433710

Decal - Top Frame

$

$

Not available

72

Poulan 507429851

Washer - F/W

$

$

Not available

73

Poulan 507431640

Washer - Rope

$

$

Not available
