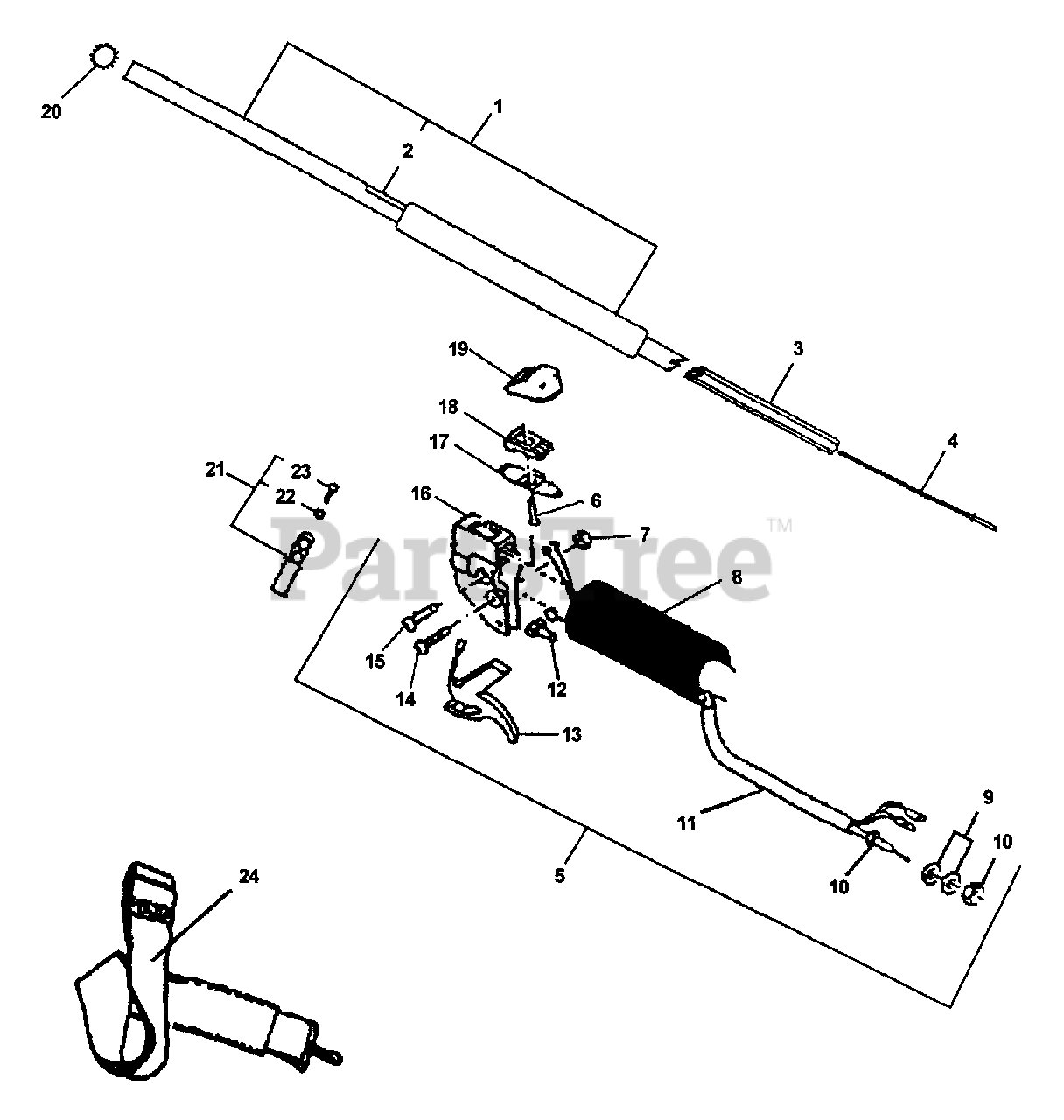

PP-600 - Echo Pole Saw (Type 1) Driveshaft, Throttle, Harness Parts Diagram

Pole Saw (Type 1)

Driveshaft, Throttle, Harness Parts Diagram

  • Title

Echo 61020622060

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 1 & 2, 5 - 19, 21 - 23

$

$

Not available

1

Echo 60520622660

MAIN PIPE ASSY

Note: INCLUDES ITEMS 2

$114.99

$

Usually ships in 2-4 days

0

2

Echo 89016022060

LABEL - WARNING
(Superseded to 89016022660)

$8.99

$

In Stock, only 3 left!

0

3

Echo 61021722060

LINER - FLEXIBLE
(Superseded to 61021722061)

$25.99

$

In Stock, only 3 left!

0

4

Echo 61001322060

DRIVESHAFT - FLEXIBLE

$17.99

$

Usually ships in 2-4 days

0

5

Echo 17800322160

THROTTLE CONTROL ASSY

Note: Includes ITEMS 6-19

$44.99

$

Usually ships in 2-4 days

0

6

Echo 90005400300

SCREW
(Superseded to Discontinued)

$

$

Not available

7

Echo 20013922060

NUT - 5
(Superseded to Discontinued)

$

$

Not available

8

Echo 35111122060

GRIP, HANDLE
(Superseded to Discontinued)

$

$

Not available

9

Echo 17802022060

WASHER - 6
(Superseded to Discontinued)

$

$

Not available

10

Echo 43723522060

NUT - 6
(Superseded to Discontinued)

$

$

Not available

11

Echo 17810022160

CONTROL CABLE ASSY

$22.99

$

Usually ships in 2-4 days

0

12

Echo 17811222060

GUIDE, CABLE
(Superseded to Discontinued)

$

$

Not available

13

Echo 17801022160

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

14

Echo 88995022060

SCREW - 5

$1.49

$

Usually ships in 2-4 days

0

15

Echo 90005500100

SCREW
(Superseded to Discontinued)

$

$

Not available

16

Echo 17802422160

BRACKET, THROTTLE CONTROL
(Superseded to Discontinued)

$

$

Not available

17

Echo 16341322060

TERMINAL - GROUND
(Superseded to Discontinued)

$

$

Not available

18

Echo 16340022060

IGNITION SWITCH ASSY

$2.49

$

Usually ships in 2-4 days

0

19

Echo 16341022060

KNOB, SWITCH
(Superseded to Discontinued)

$

$

Not available

20

Echo 90003800100

LOCKWASHER - EXTERNAL

$0.99

$

In Stock, only 3 left!

0

21

Echo 30061022060

HANGER KIT
(Superseded to 30061022061)

Note: INCLUDES ITEMS 22 & 23

$5.49

$

Usually ships in 2-4 days

0

22

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 20+

0

23

Echo 90005300200

SCREW
(Superseded to Discontinued)

$

$

Not available

24

Echo 30100022060

SHOULDER STRAP ASSY

$32.99

$

In Stock, only 2 left!

0
