PP-600 - Echo Pole Saw (Type 1) Gearcase, Bar & Chain Parts Diagram

Pole Saw (Type 1)

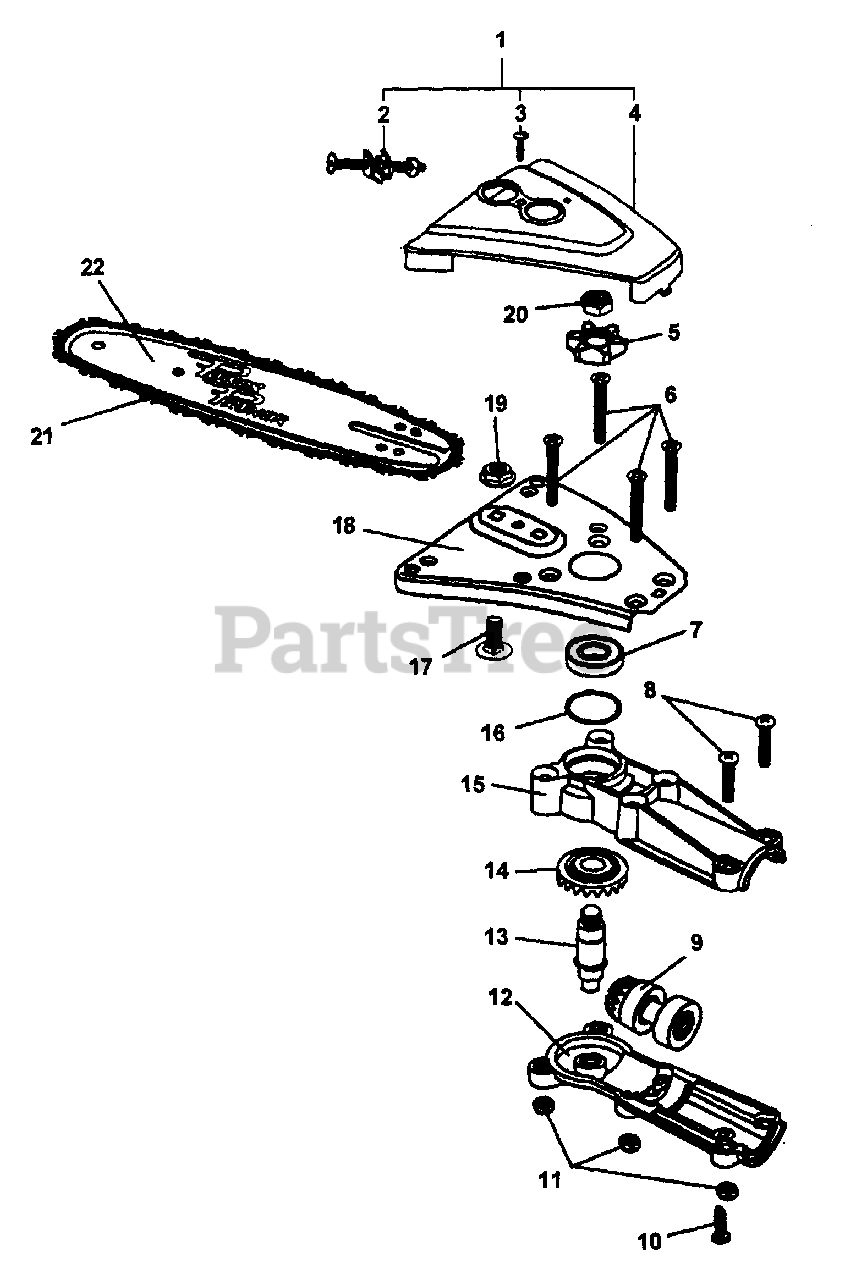

Gearcase, Bar & Chain Parts Diagram

  • Title

Echo 61050922060

CUTTING HEAD ASSY

Note: Includes ITEMS 1-22

$221.99

$

Usually ships in 2-4 days

0

Echo 61040022060

CUTTING HD ASSY W/O BAR & CHAIN

Note: Includes ITEMS 1-20

$170.99

$

Usually ships in 2-4 days

0

1

Echo 43300122060

SPROCKET COVER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2-4

$

$

Not available

2

Echo 43309522060

TENSIONER KIT
(Superseded to Discontinued)

$

$

Not available

3

Echo 90005300100

SCREW - 8-32×1" - TORX PAN HEAD

$0.99

$

Usually ships in 2-4 days

0

4

Echo 43301022060

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

5

Echo 30281022060

SPROCKET

$3.99

$

In Stock, only 2 left!

0

6

Echo 90005700100

SCREW - TORX FLAT HEAD

$0.99

$

Usually ships in 2-4 days

0

7

Echo 90080206001

BEARING, BALL 6001 DDU
(Superseded to 9404206001)

$11.99

$

In Stock, only 2 left!

0

8

Echo 90005300400

SCREW, TORX 10-24 UNC 1-1/4

$0.99

$

In Stock, only 4 left!

0

9

Echo 61030922060

SHAFT, GEAR

$55.99

$

In Stock, only 3 left!

0

10

Echo 90005400100

SCREW - TORX PAN HEAD
(Superseded to 9511113050)

$0.99

$

In Stock, only 3 left!

0

11

Echo 90003150100

NUT, LOCK 10-24 UNC

$0.99

$

In Stock, Qty 8

0

12

Echo 61099024160

CASE, GEAR - RIGHT

Note: INCLS ITEM 6, 11, & 16, To Be Announced

$13.99

$

Usually ships in 2-4 days

0

13

Echo 61030922160

SHAFT, GEAR

$17.99

$

Usually ships in 2-4 days

0

14

Echo 61031122060

GEAR, BEVEL
(Superseded to P021011610)

$

$

Not available

15

Echo 61046022760

CASE, GEAR - RIGHT

$5.99

$

Usually ships in 2-4 days

0

16

Echo 90003500400

SHIM 0.004"

$1.99

$

Usually ships in 2-4 days

0

17

Echo 90006000100

BOLT, CARRIAGE
(Superseded to Discontinued)

$

$

Not available

18

Echo 43300422060

SAW BAR CARRIER
(Superseded to Discontinued)

$

$

Not available

19

Echo 90004000100

NUT - FLANGE

$0.99

$

Usually ships in 2-4 days

0

20

Echo 90003000200

NUT, HEX

$0.99

$

In Stock, only 2 left!

0

21

Echo 43162022060

SAWING CHAIN - 8"
(Superseded to 1917033)

$

$

Currently unavailable

22

Echo 1080373301

GUIDE BAR - 8"

Note: GAUGE: .050" .043" & .050" Gauge Chains & Guide Bars are NOT Interchangeable

$20.99

$

Usually ships in 2-4 days

0
