PP 71250KW (80335) - Snapper Walk-Behind Mower, 12.5hp Caster Assembly Parts Diagram

Walk-Behind Mower, 12.5hp

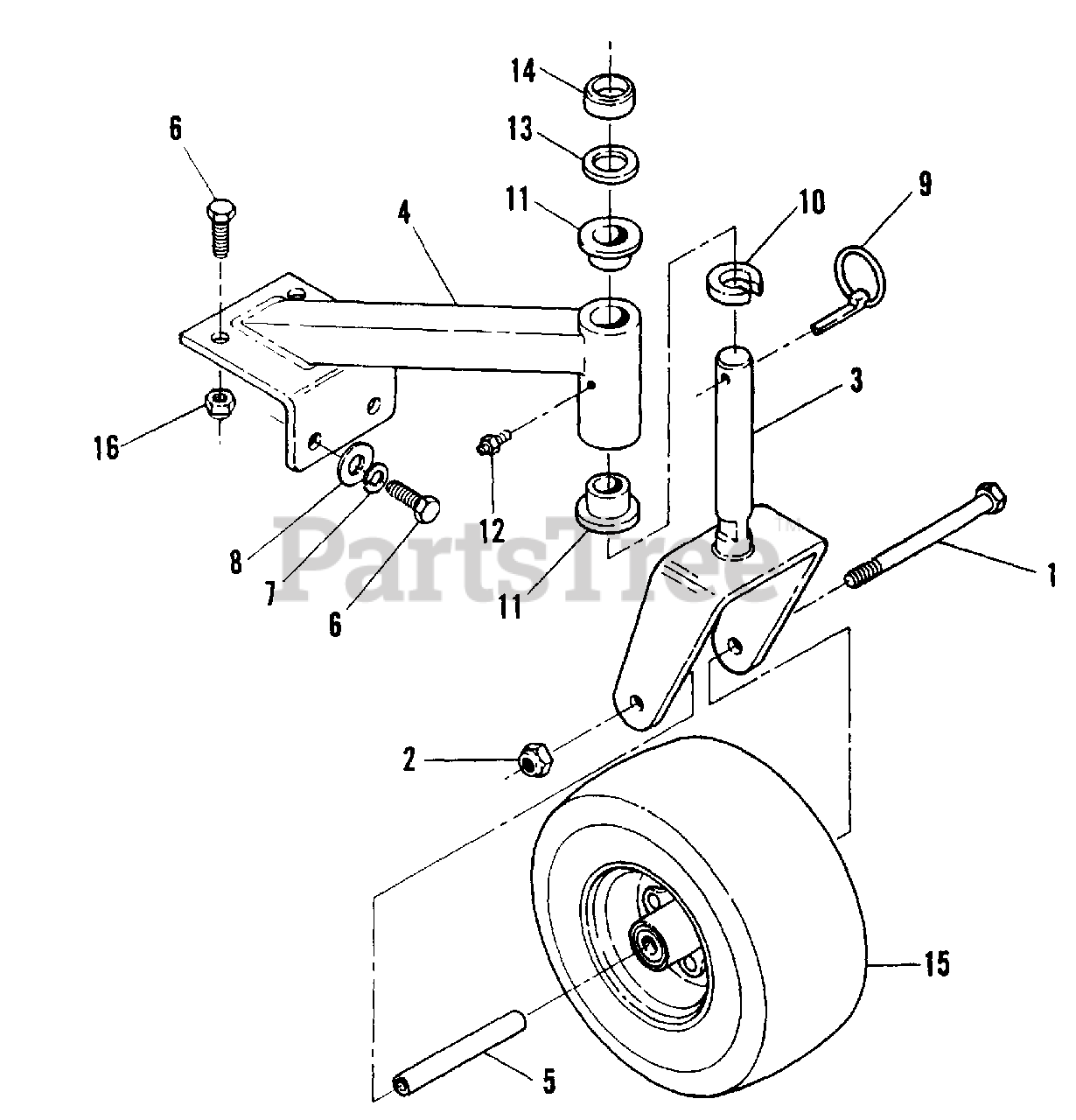

Caster Assembly Parts Diagram

  • Title

1

Snapper 7091326

BOLT, 1/2" x 5 1/2"
(Superseded to 7091326YP)

Note: Was 91123

$8.99

$

In Stock, Qty 5

0

2

Snapper 7091121

NUT, 1/2" Nyloc

$

$

Not available

3

Snapper 7040726

YOKE, Caster, Weldment
(Superseded to 7040726YP)

$90.99

$

Usually ships in 2-12 days

0

4

Snapper 7052298

CASTER SUPPORT ASSEMBLY
(Superseded to 7052298YP)

Note: (Includes Items 11 & 12)

$559.99

$

Usually ships in 2-12 days

0

5

Snapper 7022151

SLEEVE, Axle
(Superseded to 7022151YP)

$46.99

$

In Stock, only 2 left!

0

6

Snapper 7091304

SCREW, 3/8" C x 1", Gr. 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

Usually ships in 2-12 days

0

7

Snapper 7090118

WASHER, 3/8" Lock
(Superseded to 703454)

$3.49

$

In Stock, only 4 left!

0

8

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

9

Snapper 7017711

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 2 left!

0

10

Snapper 7019152

SPACER
(Superseded to 7019152YP)

$9.99

$

In Stock, Qty 9

0

11

Snapper 7023556

BUSHING, Caster
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 20+

0

12

Snapper 7076998

ZERK, 1/8" NPT Straight
(Superseded to 703153)

$3.99

$

In Stock, Qty 8

0

13

Snapper 7023747

SPACER
(Superseded to 7023747YP)

$5.49

$

In Stock, Qty 15

0

14

Snapper 7028641

SPACER, 1" x 1 3/8 x .30" (PM)
(Superseded to 7028641YP)

Note: Was 21960

$

$

Not available

15

Snapper 7022258

WHEEL & TIRE ASSEMBLY
(Superseded to 7058167YP)

Note: (See "Caster Wheel & Tire Assembly" illustration & parts list)

$

$

Not available

16

Snapper 7091299

NUT, 3/8" Nyloc
(Superseded to 703117)

Note: Was 76979

$3.99

$

In Stock, Qty 20+

0
