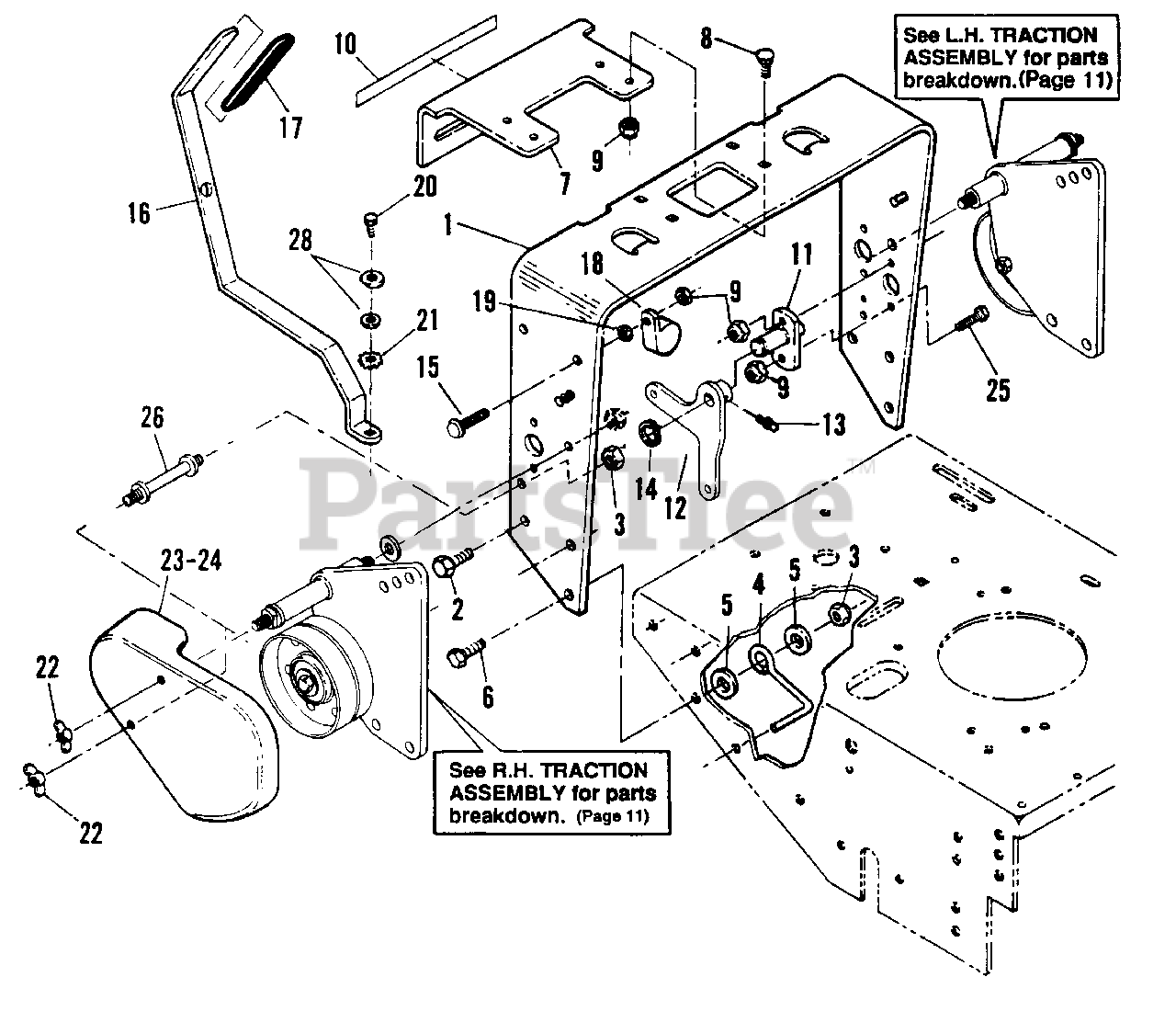

PP 71250KW (80335) - Snapper Walk-Behind Mower, 12.5hp Tank Bracket Assembly Parts Diagram

Walk-Behind Mower, 12.5hp

Tank Bracket Assembly Parts Diagram

  • Title

1

Snapper 7033353

TANK BRACKET

$

$

Currently unavailable

2

Snapper 7091304

SCREW, 3/8" C x 1" Lg. Hex Cap
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 5

0

3

Snapper 7091299

NUT, 3/8" C Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

4

Snapper 7022421

GUIDE, Traction Belt

$

$

Currently unavailable

5

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

6

Snapper 7091328

SCREW, 3/8" C x 1 1/4" Lg. Hex Cap
(Superseded to 703871)

Note: Was 90587

$4.99

$

In Stock, only 2 left!

0

7

Snapper 7033253

QUADRANT, Shift
(Superseded to 7033253YP)

$87.99

$

Usually ships in 2-12 days

0

8

Snapper 7076972

BOLT, 1/4" C x 3/4" Lg. Carriage

$

$

Currently unavailable

9

Snapper 7076978

NUT, 1/4" C Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7022333

DECAL, Shift

$

$

Currently unavailable

11

Snapper 7040735

MOUNT, Bellcrank
(Superseded to 7040735YP)

$60.99

$

Usually ships in 2-12 days

0

12

Snapper 7040747

WELDMENT, Blade Bellcrank
(Superseded to 7040747YP)

$108.99

$

Usually ships in 2-12 days

0

13

Snapper 7076998

GREASE FITTING, 1/4" - 28 Str. Zerk
(Superseded to 703153)

$3.99

$

In Stock, only 2 left!

0

14

Snapper 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

15

Snapper 7076972

BOLT, 1/4 - 20 x 3/4" Carriage

$

$

Currently unavailable

16

Snapper 7034429

LEVER, Shifter
(Superseded to 7034429YP)

Note: Was 33250 (Now 34429 + 34430)

$85.99

$

Usually ships in 2-12 days

0

17

Snapper 7076526

GRIP, Shift Lever
(Superseded to 7076526YP)

$3.99

$

In Stock, only 1 left!

0

18

Snapper 7022849

MODULE (Kawasaki)
(Superseded to 7022849YP)

$60.99

$

Usually ships in 2-12 days

0

19

Snapper 7090053

LOCKWASHER, 1/4" Int. Tooth
(Superseded to 703462)

$4.49

$

In Stock, Qty 13

0

20

Snapper 7090100

SCREW, 1/4" - 28 x 5/8" Lg. Hex Cap
(Superseded to 7090100YP)

$5.99

$

Usually ships in 2-12 days

0

21

Snapper 7090574

LOCKWASHER, 1/4" Int/Ext. Tooth

$

$

Not available

22

Snapper 7091049

WINGNUT, 3/8" C Nyl. Ring
(Superseded to 7091049SM)

$5.49

$

In Stock, only 2 left!

0

23

Snapper 7024713

FENDER, R.H.

Note: Was 22251

$

$

Currently unavailable

24

Snapper 7024714

FENDER, L.H.
(Superseded to 7024714YP)

Note: Was 22250 (Not Illustrated)

$51.99

$

Usually ships in 2-12 days

0

25

Snapper 7091495

SCREW, 1/4" x 3/4" Lg. Hex. Cap
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 6

0

26

Snapper 7022768

STUD, Fender Mount
(Superseded to 7022768YP)

$34.99

$

In Stock, Qty 6

0

28

Snapper 7091098

WASHER, 1/4" Flat SAE
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0
