PP 71604BV (80717) - Snapper Walk-Behind Mower, 16hp Transmission Drive Assembly Parts Diagram

Walk-Behind Mower, 16hp

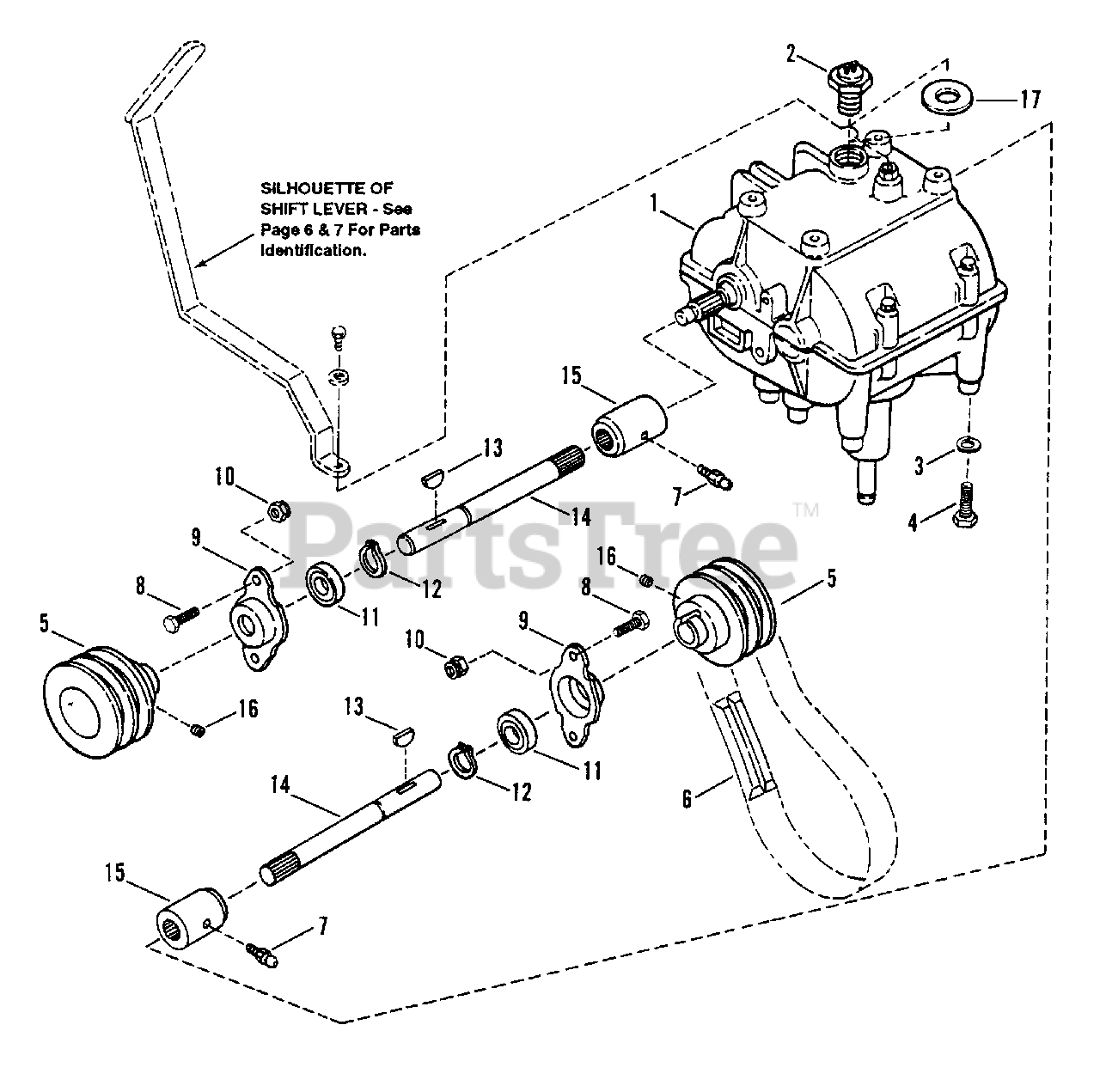

Transmission Drive Assembly Parts Diagram

  • Title

1

Snapper 7017533

TRANSMISSION

$

$

Not available

2

Snapper 7029682

SWITCH, Transmission

$

$

Not available

3

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Snapper 7076934

BOLT, 5/16-18 x 3/4" Hex Head Cap
(Superseded to 7076934YP)

$

$

Not available

5

Snapper 7024708

PULLEY, Output

$

$

Not available

6

Snapper 7024891

BELT, Traction
(Superseded to 7024891YP)

$121.99

$

Usually ships in 2-12 days

0

7

Snapper 7076998

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 5

0

8

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap
(Superseded to 703925)

Note: Was 90073

$4.49

$

Usually ships in 2-12 days

0

9

Snapper 7033718

FLANGE, Output
(Superseded to 7033718YP)

$8.49

$

In Stock, only 2 left!

0

10

Snapper 7076978

NUT, 1/4-20 Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7014514

BEARING, Output
(Superseded to 7014514YP)

$66.99

$

In Stock, only 2 left!

0

12

Snapper 7012763

RING, Retaining
(Superseded to 7012763SM)

$4.49

$

In Stock, Qty 14

0

13

Snapper 7010211

KEY, #9 Woodruff
(Superseded to 7010211YP)

$3.99

$

In Stock, Qty 19

0

14

Snapper 7017537

SHAFT, Output
(Superseded to 7017537YP)

$86.99

$

Usually ships in 2-12 days

0

15

Snapper 24423

COUPLER

$

$

Currently unavailable

16

Snapper 7076956

SCREW, 5/16-18 x 3/8" Knurled Cup Point Set
(Superseded to 5025061SM)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7029662

WASHER, Fiber
(Superseded to 7029662YP)

$4.99

$

Usually ships in 2-12 days

0
